LIQUIDYNAMICS INC.

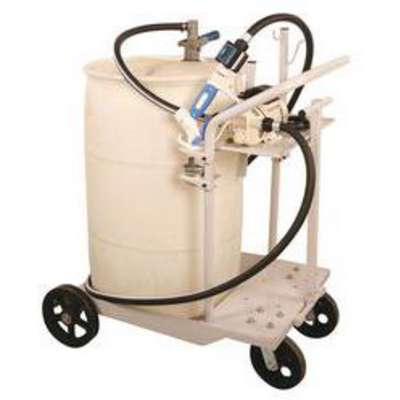

Electric Operated Drum Pump, Metered Dispensing with Manual Shut-Off, 115VAC, 1/10 Motor HP
Hover over image to magnify
#917759-5 | Pkg Qty: 1
$1,868.06 pkg | $1,868.06 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
ISO
Motor RPM
1,750 RPM
Brand
LIQUIDYNAMICS INC.
Motor Type
2 Pole
DEF Compatible
Yes
Nozzle Material
Poly, Stainless Steel
Duty Cycle
Intermittent
Outlet Size
3/4"
Food Grade
No
Package Quantity
1
For Use On
55 gal. Drums
Phase
1
Full Load Amps
4-1/2
Power Source
Electric
GPM
8
RPM
1730
Gasket Material
EPDM
Seal Material
EPDM
Inlet Size
3/4"
Self-Priming
Yes
Item
Electric Operated Drum Pump
Shipping Weight
170 lb.
Maximum Head
48 ft.
Spout Material
316 Stainless Steel
Metered
Yes
Variable Speed
No
Mfr. Part Number
51009C-S9MG
Voltage
115 VAC
Mfr. Warranty Length
30 Days Manufacturing Defects, 2 yr. Pump
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Motor Enclosure
IP55
pH Range
9.8 to 10
General
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
Max. Fluid Temp.
104 Degrees F
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Max. Head - Pumps
48 ft
Diesel Exhaust Fluid Compatible
Yes
Max. Head Pressure
23 psi
Discharge Connection Type
Hose Barb
Max. Oil Flow
8 gpm
Discharge Tube Outlet ID
3/4 in
Max. Outlet Pressure
23 psi
Discharge Tube Outlet OD
1 in
Max. Viscosity
10 cps
For Container Size
55 gal, 275 gal, 330 gal
Min. Fluid Temp.
17 Degrees F
For Container Type
Drum, Tote
Noise Level
70 db
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Nominal Voltage
110V AC
For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Frequency (Hz)
60
Nozzle Operation
Manual
Height Above Container
4 in
Number of Phases
1
Hose Cover Material
Thermal Plastic
Pump Connection OD
1 in
Hose Inside Dia.
3/4 in
Pump Connection Type
Hose Barb
Hose Outside Dia.
1 in
Pump Package Type
Metered Dispensing with Manual Shut-Off
Hose Tube Material
EPDM
Rated Voltage
115V AC
Housing Material - Pumps
Polypropylene
Runs Dry
Yes
Includes
2600 lb Load Rating Heavy Duty Cart, 3/4 in x 12 ft Discharge Hose, Digital Turbine Mete, Poly Manual Nozzle
Spout Connection Type
Integral to Nozzle
Includes Discharge Hose
Yes
Spout Discharge Size
3/4 in
Includes Nozzle
Yes
Standards
CE, IP 55, ISO 22241
Includes Spout
Yes
Suction Tube ID
3/4 in
Includes Suction Tube
Yes
Suction Tube Material
EPDM
Max. Flow Rate
8 gpm
Suction Tube OD
1 in
Product Description
Diesel exhaust fluid (DEF) electric pump carts combine a motor-driven pump and a wheeled frame for mobile dispensing and transferring of large volumes of DEF. These pump carts are used specifically with DEF to maintain purity when filling the reservoir of a diesel engine's Selective Catalytic Reduction (SCR) system. They are certified to ISO standards that regulate the handling, transportation, and storage of DEF. These carts are commonly used for draining DEF from one container and transferring it to another container. Mini-transfer carts transport the pump to a stationary container. Drum carts have space for carrying drums between locations.
