LIQUIDYNAMICS INC.

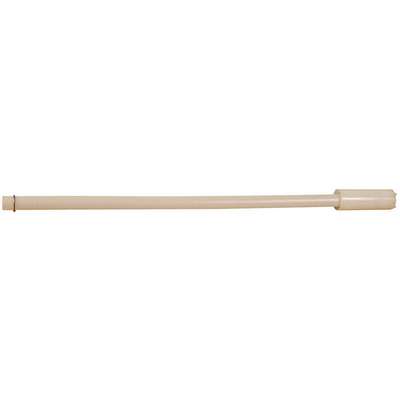

Suction Tube, Polypropylene, 63/64" Suction Tube ID, Suction Tube Length 32"
Hover over image to magnify
#919625-3 | Pkg Qty: 1
$18.74 pkg | $18.74 ea
Unavailable
Shipping to 60045
Technical Specifications
Key Specifications
Adapter Material
Polypropylene
Length
32 in.
Agency Compliance
ISO 22241-3
Maximum Liquid Temperature
86°F
Brand
LIQUIDYNAMICS INC.
Mfr. Part Number
195205-32
DEF Compatible
Yes
Mfr. Warranty Length
30 days
Diameter
5/8"
Package Quantity
1
Food Grade
No
Shipping Weight
1 lb.
Height
32 in.
Wetted Materials
Polypropylene
Item
Suction Tube
General
Compatible Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Methyl Ethyl Ketone (MEK), Ethyl (Ethanol), Isopropyl (Isopropanol), Methyl (Methanol), Antifreeze (Coolant), Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate (10%), Stoddard Solvent (Mineral Spirits), Ethyl Acetate, Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Potassium Hydroxide (50%), Toluene, Xylene, Fresh Water, Salt Water, Deionized Water, Motor Oil, Sodium Bisulfate, Sodium Bisulfite, DEF, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid
Max. Fluid Temp.
150 Degrees F
Diesel Exhaust Fluid Compatible
Yes
Min. Fluid Temp.
0 Degrees
For Container Size
55 gal
Not Recommended Chemicals
Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Nitric Acid (Concentrated Solution), Acetone, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Biodiesel, Hydrazine, Lacquer Thinners, Methyl Chloride, Trichlorethylene (50%), E85, Brake Fluid, Fertilizers, Fungicides, Herbicides, Lithium Grease, Naphtha, Paint, Paint Thinner, Pesticides, Turpentine, Windshield Washer Fluid
For Container Type
Drum
Suction Tube ID
63/64 in
For Media Type
Acetic Acid, Citric Acid, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sulfuric Acid, Ketones, Ethanol, Isopropanol, Methanol, Antifreeze, Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate, Stoddard Solvent, Ethyl Acetate, Formaldehyde, Ammonium Hydroxide, Sodium Hydroxide, Bleach, Potassium Hydroxide (50%), Toluene, Xylene, Water, Motor Oil, Sodium Bisulfate, Sodium Bisulfite, DEF, Ammonia, Automatic Transmission Fluid
Suction Tube Material
Polypropylene
For Use With
Mfr. No. 195205B
Suction Tube OD
1 1/16 in
Product Description
Drum pump suction tubes are rigid intake shafts that connect to the bottom of a drum pump. They fit through a drum opening to provide a duct for fluids to move through as they're pumped out of the drum. They're used to make a direct connection to a pump rather than connecting through a coupler.
Item Barcode
Suction Tube,5/8 In. Dia.,32
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49CD14 | Suction Tube, 5/8 in. Dia., |
 | UNSPSC CODES | 40151529 | |
 | VMRS (ATA) CODES | 053-006-009 | Suction Tube, 5/8 in. Dia., |
