SCHNEIDER ELECTRIC

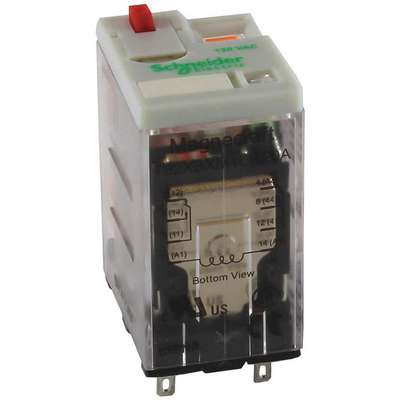

Schneider Electric 24VAC Coil Volts, General Purpose Relay, 6A @ 277VAC/6A @ 28VDC Contact Rating, Square

Hover over image to magnify
Plug In Relay,14 Pins,Square,
PI_Asset_3738400
PI_Asset_3738401
PI_Asset_3738402
Plug In Relay,14 Pins,Square,
PI_Asset_3738400
PI_Asset_3738401
PI_Asset_3738402
Schneider Electric 24VAC Coil Volts, General Purpose Relay, 6A @ 277VAC/6A @ 28VDC Contact Rating, Square Video
Double tap image to magnify
Plug In Relay,14 Pins,Square,
39DL21_2__IW01_v1
39DL21_4__KUSW_v1
39DL21_5__3MJR_v1
Plug In Relay,14 Pins,Square,
39DL21_2__IW01_v1
39DL21_4__KUSW_v1
39DL21_5__3MJR_v1
qejmPGe6wk4

#917518-4Pkg Qty: 1

$17.17 pkg | $17.17 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
AC Contact Rating
6 A @ 277 V
Mfr. Part Number
792XDXM4L-24A
Base Type
Square
Mounting
Plug In
Body Depth
0.83 in.
Number of Pins
14
Body Height
1.54 in.
Number of Poles
4
Body Width
1.1 in.
Overall Height
1.54 in.
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Coil VA Rating
1.2
Pins
14
Coil Volts
24 VAC
Plug-In Relay Style
General Purpose
Contact Form
4PDT
Push To Test
Lockable
Contact Material
Silver Alloy
Relay Power Consumption
1.2 VA
Contact Rating
6 A @ 277 VAC/30 VDC
Resistive Contact Amp Rating
6
DC Contact Rating
6 A @ 28 V
Shipping Weight
.08 lb.
Hz
50/60
Socket
Mfr. No. 70-782E14, 70-461
Input Power Consumption
1.2 VA
Socket Code
G
Item
General Purpose Relay
Status Indicator
LED and Mechanical Flag
General
AC Contact Rating - Relay
6A @ 277V
HP @ 240V
1/2 hp
Base Type - Plug In Relay
Square
Mounting - Relay
Plug In
Body Depth - Relay
0.83 in
Number of Pins - Relay
14
Body Height - Relay
1.54 in
Overall Height - Relay
1.54 in
Body Width - Relay
1.1 in
Power Consumption - Relay
1.2 VA
Contact Form - Relay
4PDT
Socket Code - Relay
G
DC Contact Rating - Relay
6A @ 28V
Standards
CSA Certified, CE Marked
HP @ 120V
1/3 hp

Product Description

General Purpose Relay, Coil Volts 24V AC, AC Contact Rating - Relay 6A @ 277V, DC Contact Rating - Relay 6A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 14, Contact Form - Relay 4PDT, Mounting - Relay Plug In, Socket Code - Relay G, Power Consumption - Relay 1.2 VA, Contact Material Silver Alloy, Status Indicator LED and Mechanical Flag, Push To Test Lockable
