SCHNEIDER ELECTRIC

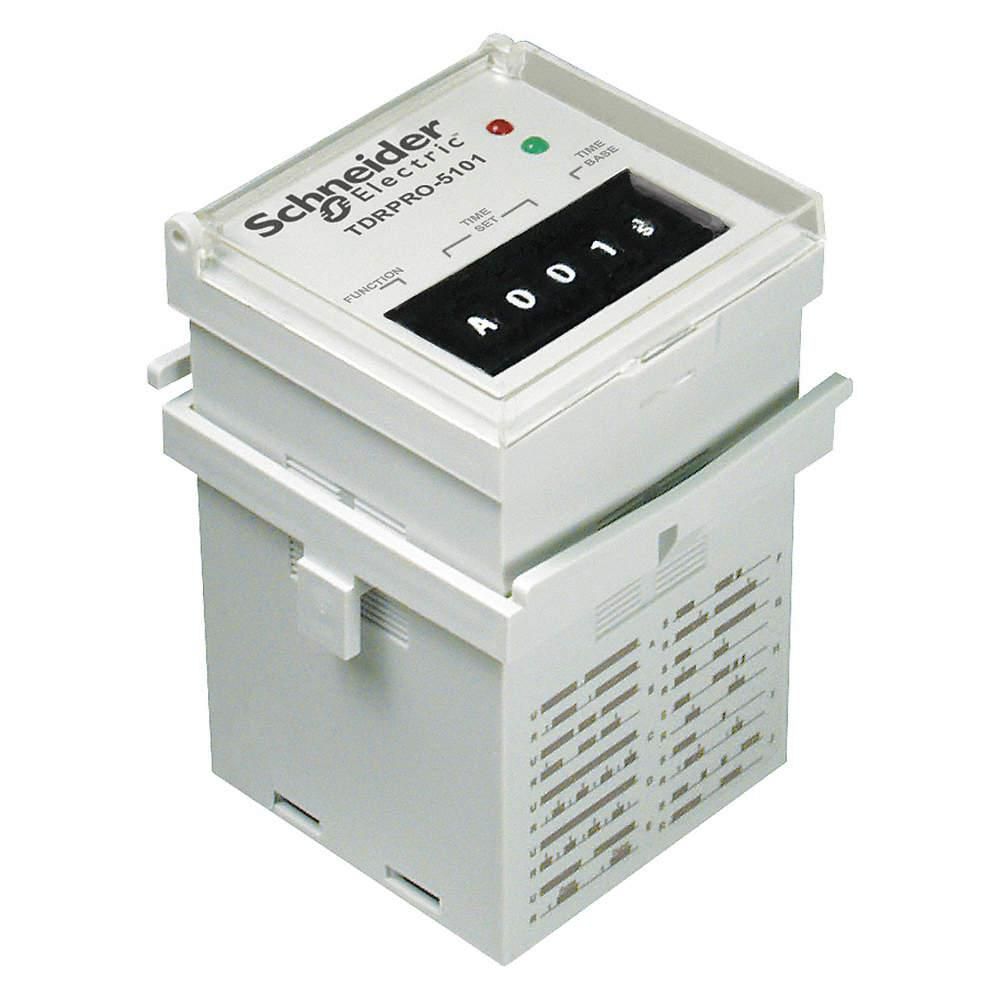

Schneider Electric Multi-Function Timing Relay, 12 to 240V AC/DC, 11 Pins, DPDT

Hover over image to magnify
Time Delay Rlay,12 To 240VAC/

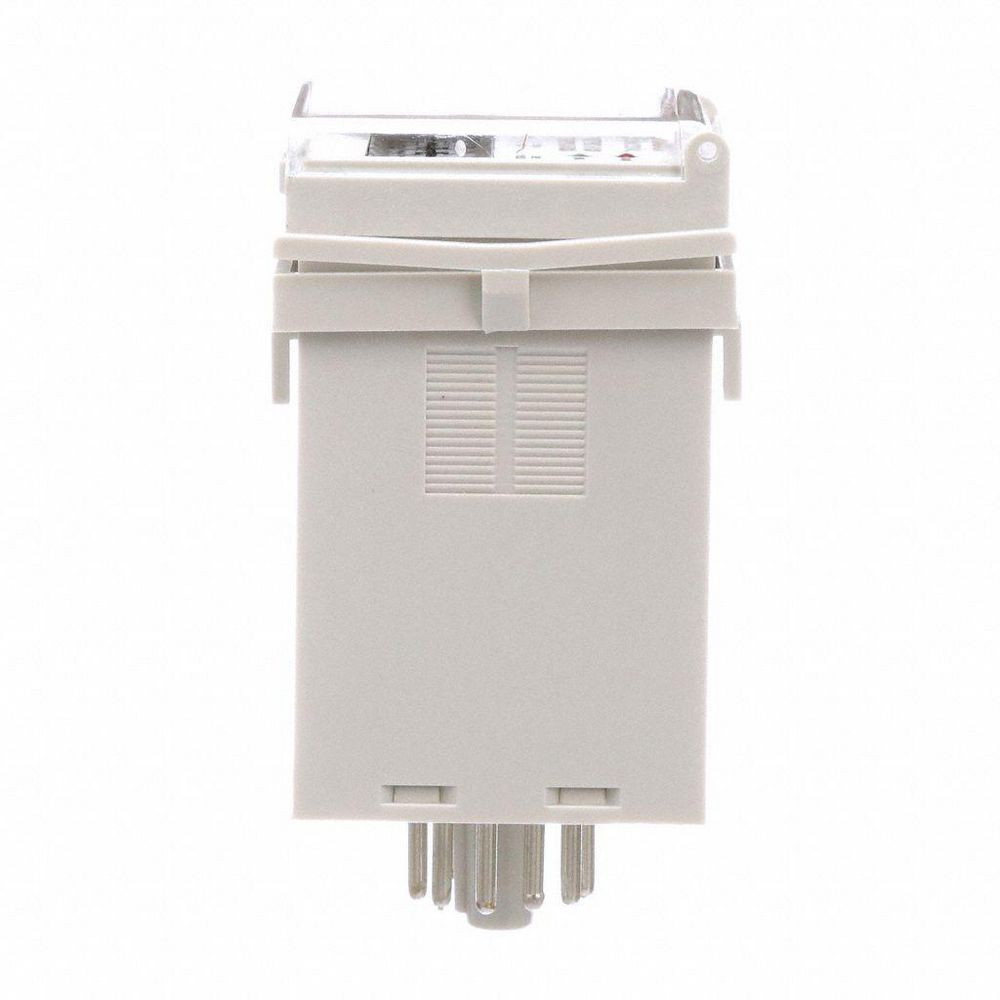

PI_Asset_1985112

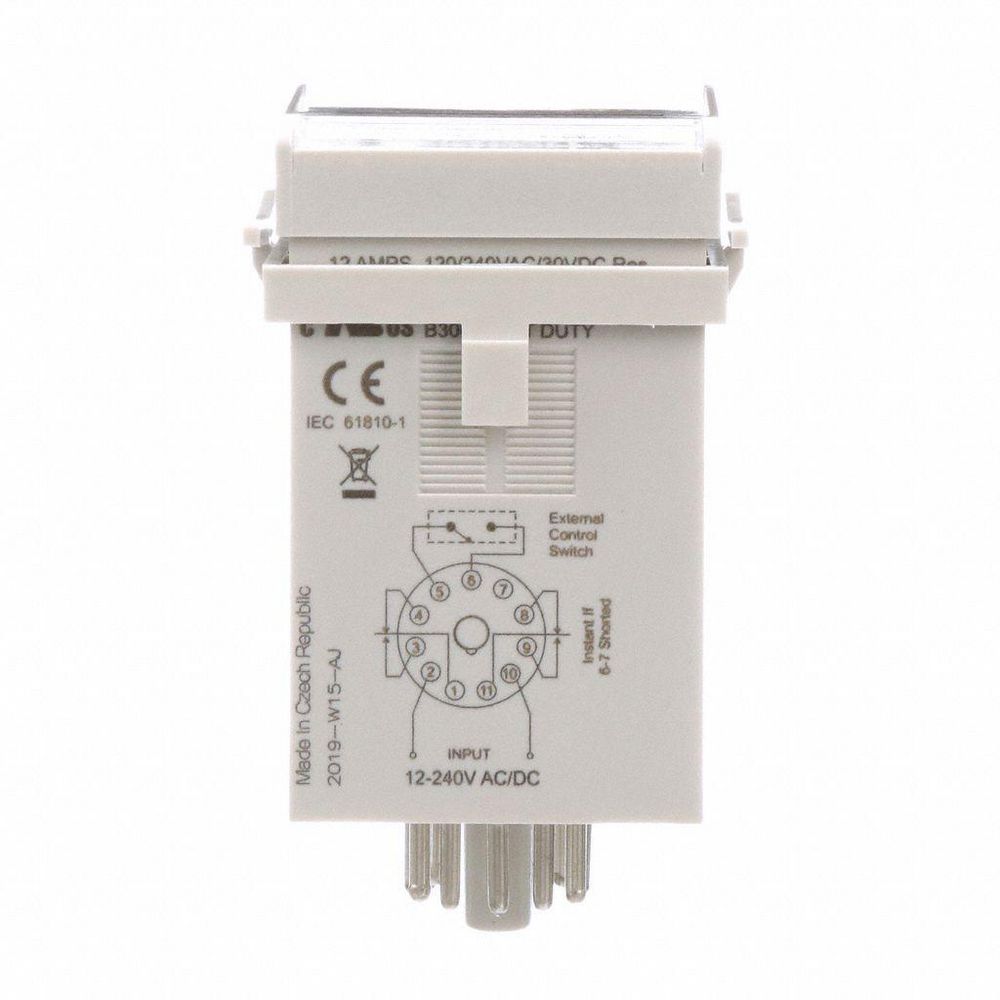

PI_Asset_1989187

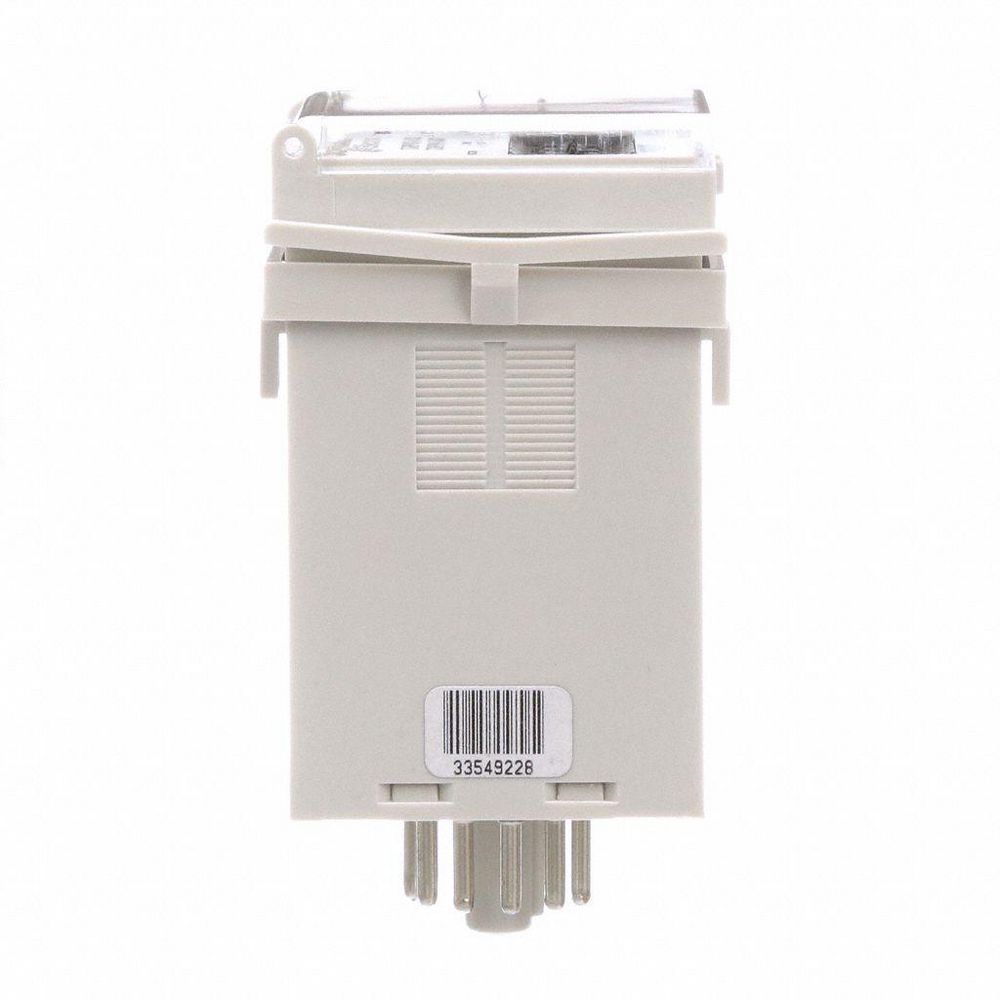

PI_Asset_1992245

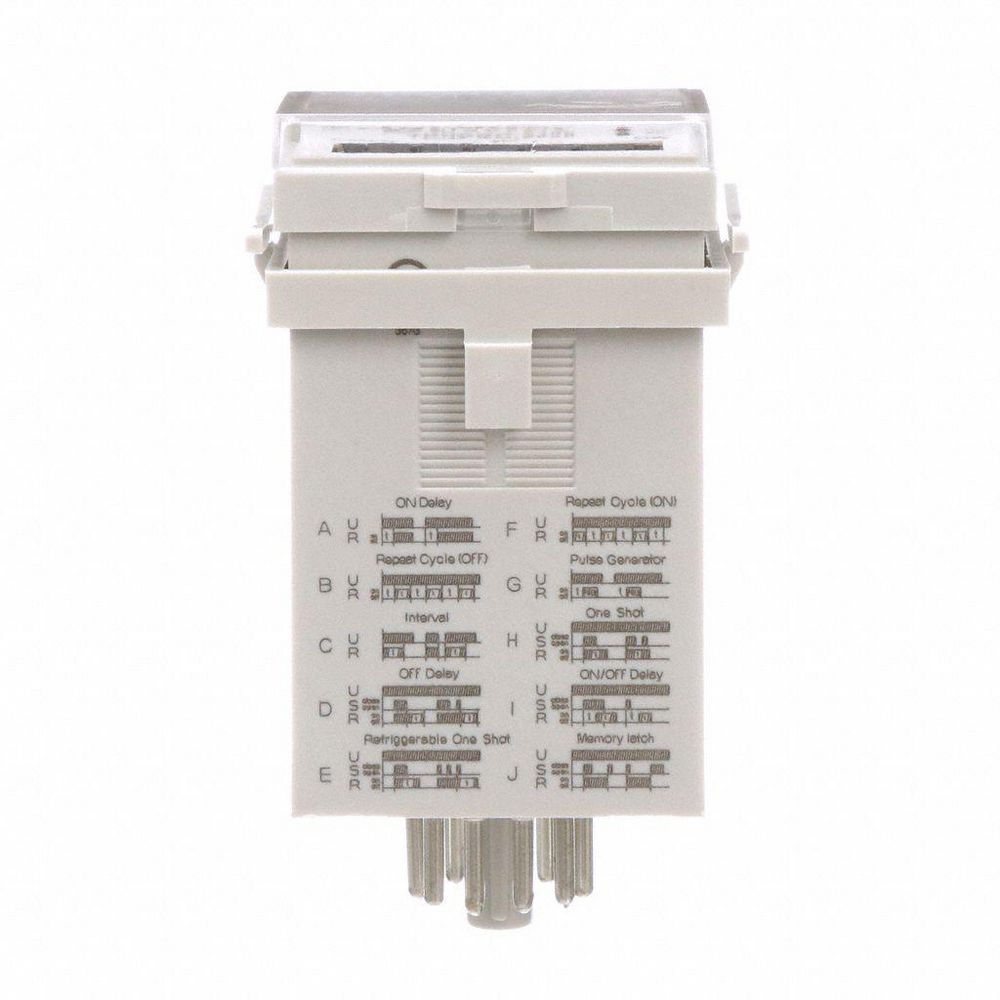

PI_Asset_1993262
Time Delay Rlay,12 To 240VAC/
PI_Asset_1985112
PI_Asset_1989187
PI_Asset_1992245
PI_Asset_1993262
Double tap image to magnify
Time Delay Rlay,12 To 240VAC/
6AGT7_1
6AGT7_2
6AGT7_3
6AGT7_4
Time Delay Rlay,12 To 240VAC/
6AGT7_1
6AGT7_2
6AGT7_3
6AGT7_4

#936406-6Pkg Qty: 1

$147.17 pkg | $147.17 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Base Type
Octal
Mounting
Plug in.
Brand
SCHNEIDER ELECTRIC
Number of Contacts
2
Coil Rating
2.5VA
Number of Functions
5
Coil VA Rating
2-1/2
Number of Poles
2
Coil Volts
12 to 240 VAC/DC
Operating Functions
1, 2, 4, 5, 6
Contact Form
DPDT
Package Quantity
1
Contact Material
Silver Alloy
Pins
11
Electrical Connection
Socket
Shipping Weight
.35 lb.
Function
On Delay, Off Delay, interval Delay, Cycle 1 Shot, Repeat Cycle
Socket
1EGP2, 1EGP4, 6x156
Hz
50/60
Socket Code
B
Input or Control Voltage
12 to 240 VAC/DC
Status Indicator
None
Item
Multi-Function Time Delay Relay
Type
Time Delay
Mfr. Part Number
TDRPRO-5100
General
Adjustment Method - Timer
Thumbwheel
Max. Time Setting - Timer
416 day 6 hr
Body Depth - Relay
1.9 in
Min. Time Setting - Timer
0.1 sec
Body Height - Relay
3.15 in
Mounting - Relay
Plug In
Body Width - Relay
1.9 in
Overall Height - Relay
3.38 in
Function - Timing Relay
Cycle One Shot, Interval Delay, Off Delay, On Delay, Repeat Cycle
Power Consumption - Relay
2 W, 2.5 VA
HP @ 120V
1/3
Standards
CE, cURus, UL
HP @ 240V
1/2
Timing Relay Functionality
Interval Delay, Off Delay, On Delay, One Shot, Repeat Cycle
Hz - Electrical
50 Hz, 60 Hz

Product Description

Multi-Function Time Delay Relay, Function - Timing Relay Cycle One Shot, Interval Delay, Off Delay, On Delay, Repeat Cycle, Coil Volts 12 to 240V AC/DC, Base Type - Plug In Relay Octal, Number of Pins - Relay 11, Mounting - Relay Plug In, Contact Form - Relay DPDT, Power Consumption - Relay 2.0 W, 2.5 VA, Adjustment Method - Timer Thumbwheel, Min. Time Setting - Timer 0.1 sec, Max. Time Setting - Timer 416 day 6 hr, Status Indicator None, Contact Material Silver Alloy
