SOUTHWIRE COMPANY

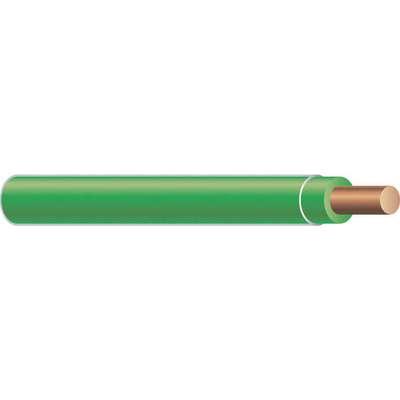

Southwire Company 500 ft. Solid Building Wire with THHN Wire Type and 12 AWG Wire Size, Green

Hover over image to magnify
Building Wire,Thhn,12 Awg,
PI_Asset_1354217
Building Wire,Thhn,12 Awg,
PI_Asset_1354217

#917021-1 | Pkg Qty: 1

$142.75 pkg | $142.75 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SOUTHWIRE COMPANY
Stranded / Solid
Solid
Color Family
Green
Stranding
1
Item
Building Wire
Temperature Rating
194deg. F
Jacket Color
Green
Type
Solid
Length
500 ft.
Voltage
600VAC
Maximum Amps
20
Wire Color
Green
Mfr. Part Number
11591501
Wire Size
12 AWG
Nominal Outside Diameter
0.12 in.
Wire and Cable Item
Building Wire
Number of Conductors
1
Wire/Cable Insulation Material
PVC
Package Quantity
1
Wire/Cable Jacket Material
Nylon
Packaging
Spool
Wire/Cable Size
12 AWG
Shipping Weight
12 lb.
Wire/Cable Type
THHN
Spool Length
500 ft.
General
Conductor Design
Solid
Temp. Rating
194°F
Insulation Material - Wire and Cable
PVC
Trade Designation
THHN
Jacket Material - Wire and Cable
Nylon
Wire Size - Wire and Cable
12 AWG
Standards
UL,E34382
Wire Type - Wire and Cable
THHN

Product Description

Thermoplastic high-heat-resistant nylon (THHN) building wire is a coated wire typically run through conduit or cable trays. This general purpose wire is used to supply an electrical current in a range of indoor wiring projects, including control circuits and appliances. It has a durable nylon jacket that resists abrasion, protects against shock, and shields the thermoplastic insulation and metal conductor from damage.

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.
