BLACKBURN

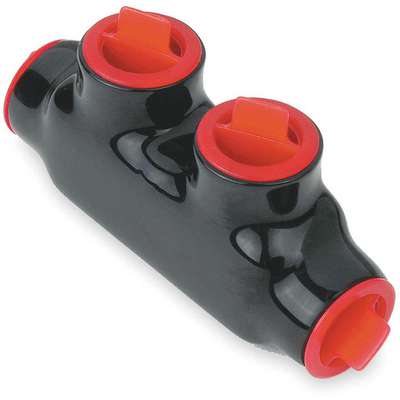

Blackburn 3.50"L 2-Port Insulated Multitap Connector, Double-Sided Entry, T, 1/0 AWG Max. Conductor Size
Hover over image to magnify
#918291 | Pkg Qty: 1
$60.59 pkg | $60.59 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Aluminum
Minimum Conductor Size
14 AWG
Brand
BLACKBURN
Number of Ports
2
Connector Type
Double-Sided Entry, T
Pack Quantity
1
Direct Burial Rated
No
Screw Material
Aluminum
Head Style
Hex
Shipping Weight
.13 lb.
Insulation Material
Plastisol
Stud Size
3/16 in.
Item
Insulated Multitap Connector
Stud/Tab Size
3/16 in.
Length
3-1/2 in.
Type
2-Holes, In Line
Maximum Conductor Size
1/0 AWG
Width
0.88 in.
Mfr. Part Number
AMTSR10
General
Compatible with Product Type
Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
Hex Size
3/16 in
For Conductor Material
Aluminum, Copper
No. of Ports
2
For Stranded Copper Wire Size - Maximum
1/0 AWG
Standards
CSA Certified
For Stranded Copper Wire Size - Minimum
14 AWG
Tap Shape
T
For Wire Size
1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG
Wire Size Range
14 AWG – 1/0 AWG
Product Description
Aluminum Dual Rated Connectors are intended for use with aluminum, copper-clad aluminum, and copper conductors, rated 90°C or less. This insulated connector makes quick and easy tap connections, terminations, and in-line splices in a variety of configurations. The space-saving design includes multiple cable entries with oxidation protection.
Expertly Selected Product Pairings
Item Barcode
Insulated Multitap Connector,3.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1YRL3 | Insulated Multitap |
 | UNSPSC CODES | 39121311 | |
 | VMRS (ATA) CODES | 053-006-009 | Insulated Multitap |
