DORMEYER

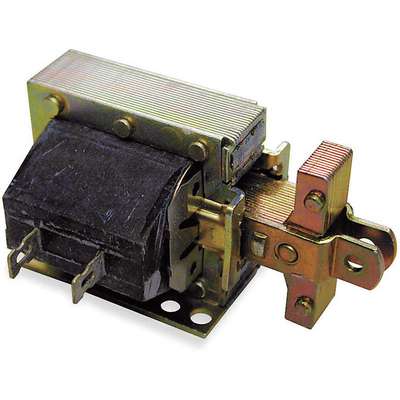

Dormeyer Solenoid, 120VAC Coil Volts, Stroke Range: 1/8" to 3/4", Duty Cycle: Continuous
Hover over image to magnify
#916920-7 | Pkg Qty: 1
$41.03 pkg | $41.03 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DORMEYER
Mounting Holes
1-3/8 X 7/8 in.
Coil Volts
120 VAC
Package Quantity
1
Depth
1-7/16 in.
Shipping Weight
.45 lb.
Duty Cycle
Continuous
Terminals
Solder Lug Coil
Item
Solenoid
Type
Laminated
Length
1-5/8 in.
Width
1-3/16 in.
Mfr. Part Number
1000-M-1
General
Amps @ Maximum Stroke
1.25
Pull @ 3/8 In. Stroke
160.0 oz.
Coil Resistance
88.0 ohm
Pull @ 5/8 In. Stroke
184.0 oz.
Gravity Value
1.76 oz.
Pull @ 7/8 In. Stroke
200.0 oz.
Pull @ 1 In. Stroke
224.0 oz.
Pull Force Range
16.0 to 80.0 oz.
Pull @ 1-1/4 In. Stroke
176.0 oz.
Seated Amps
0.24
Pull @ 1/4 In. Stroke
168.0 oz.
Seated Watts
9.5 W
Pull @ 1/8 In. Stroke
192.0 oz.
Solenoid Type
Laminated
Pull @ 3/4 In. Stroke
184.0 oz.
Stroke Range
1/8 in to 3/4 in
Product Description
Laminated
- Pull-type Continuous duty cycle rated at 25°C Constructed of durable laminated steel with corrosion-resistant frame and plunger. Solenoids have polyester or nylon bobbins, encapsulated or taped coils, steel plunger springs, and brass plunger guides. Class A coil insulation with solder lug coil terminals. Solenoids RoHS Compliant.
Expertly Selected Product Pairings
Item Barcode
Solenoid, Laminated, 1/8 - 3/4
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4X239 | SOLENOID, LA MINATED, 1/8 |
 | UNSPSC CODES | 31251510 | |
 | VMRS (ATA) CODES | 053-008-006 | Solenoid, La minated, 1/8 |
