AKRO-MILS

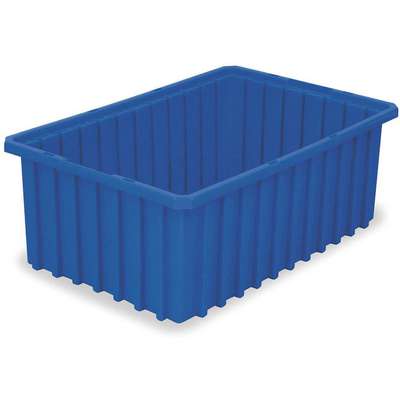

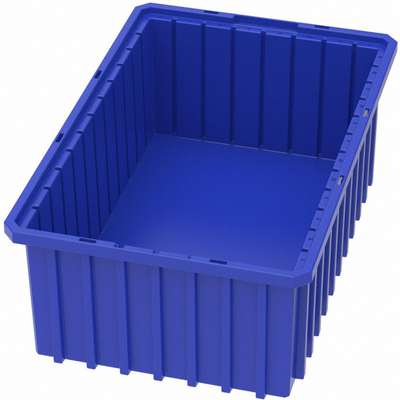

Akro-Mils Divider Box: 0.44 cu ft, 16 1/2 in x 10 7/8 in x 6 in, Blue, Polymer, 7 Long Divider Slots

Hover over image to magnify
Divider Box,16-1/2 x 10-7/8 x
PI_Asset_1372130
PI_Asset_968617
PI_Asset_969288
Divider Box,16-1/2 x 10-7/8 x
PI_Asset_1372130
PI_Asset_968617
PI_Asset_969288
Akro-Mils Divider Box: 0.44 cu ft, 16 1/2 in x 10 7/8 in x 6 in, Blue, Polymer, 7 Long Divider Slots Video

#916395-2 | Pkg Qty: 1

$21.14 pkg | $21.14 ea
Color Family : Blue
Blue
Gray

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
AKRO-MILS
Number of Divider Slots Long
7
Color Family
Blue
Number of Divider Slots Short
11
ESD Conductive
No
Outside Height
6 in.
Finish
Ribbed
Outside Length
16-1/2 in.
Inside Height
5-9/16 in.
Outside Width
10-7/8 in.
Inside Length
14-7/8 in.
Package Quantity
1
Inside Width
9-5/16 in.
Shipping Weight
1.76 lb.
Item
Divider Box
Use Divider Number
Mfr. No. 42166, 41166
Load Capacity
35 lb.
Use Lid Part Number
Mfr. No. 33061
Material
Industrial Grade Polymer
Volume Capacity
0.44 cu. ft.
Mfr. Part Number
33166BLUE
General
Bottom Inside Length
14 3/4 in
Overall LxW
16 1/2 in x 10 7/8 in
Bottom Inside Width
9 1/8 in
Overall LxWxH
16 1/2 in x 10 7/8 in x 6 in
No. of Divider Slots Long
7
Surface Resistivity
1.00 x 10¹⁴ ohm/sq
No. of Divider Slots Short
11
Top Inside Length
14 7/8 in
Number of Long Divider Slots
7
Top Inside Width
9 3/8 in
Number of Short Divider Slots
11
Use Divider No.
41166, Mfr. No. 42166
Overall LxH
16 1/2 in x 6 in
Use Lid Number
Mfr. No. 33061

Product Description

Featuring industrial-grade polymer construction, this dividable grid container has slots to create multi-sized compartments. The molded-in letter/number system allows easy parts tracking. The reinforcing ribs and strong stacking rims provide strength, rigidity, and shape retention. Optional black intersecting dividers, available separately, allow subdivision to 1-1/8" square.

Documents

Akro-Mils Cross Reference Catalog
Item Barcode
9163952
Divider Box,16-1/2 x 10-7/8 x
 NameItemDescription
Grainger DropshipGrainger Dropship2RV39Divider Box, 16-1/2 x 10-
UNSPSC CODESUNSPSC CODES24113109
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Divider Box, 16-1/2 x 10-
