AKRO-MILS

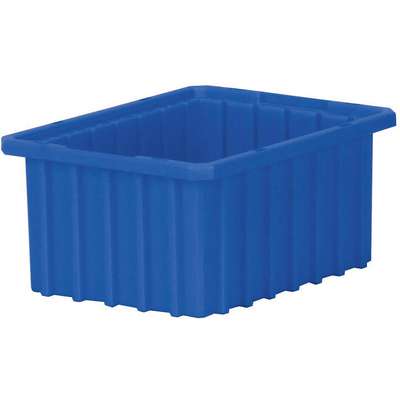

Akro-Mils Divider Box: 0.16 cu ft, 10 7/8 in x 8 1/4 in x 5 in, Blue, Polymer, 5 Long Divider Slots

Hover over image to magnify
Divider Box,10-7/8 x 8-1/4 x 5
PI_Asset_968617
PI_Asset_969287
Divider Box,10-7/8 x 8-1/4 x 5
PI_Asset_968617
PI_Asset_969287
Akro-Mils Divider Box: 0.16 cu ft, 10 7/8 in x 8 1/4 in x 5 in, Blue, Polymer, 5 Long Divider Slots Video

#916395-1 | Pkg Qty: 1

$11.34 pkg | $11.34 ea
Color Family : Blue
Blue
Gray

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
AKRO-MILS
Number of Divider Slots Long
5
Color Family
Blue
Number of Divider Slots Short
7
ESD Conductive
No
Outside Height
5 in.
Finish
Ribbed
Outside Length
10-7/8 in.
Inside Height
4-5/8 in.
Outside Width
8-1/4 in.
Inside Length
9-5/16 in.
Package Quantity
1
Inside Width
6-11/16 in.
Shipping Weight
.82 lb.
Item
Divider Box
Use Divider Number
Mfr. No. 42105, 41105
Load Capacity
25 lb.
Use Lid Part Number
Mfr. No. 33011
Material
Industrial Grade Polymer
Volume Capacity
0.16 cu. ft.
Mfr. Part Number
33105BLUE
General
Bottom Inside Length
9 1/8 in
Overall LxW
10 7/8 in x 8 1/4 in
Bottom Inside Width
6 1/2 in
Overall LxWxH
10 7/8 in x 8 1/4 in x 5 in
No. of Divider Slots Long
5
Surface Resistivity
1.00 x 10¹⁴ ohm/sq
No. of Divider Slots Short
7
Top Inside Length
9 3/8 in
Number of Long Divider Slots
5
Top Inside Width
6 3/4 in
Number of Short Divider Slots
7
Use Divider No.
41105, Mfr. No. 42105
Overall LxH
10 7/8 in x 5 in
Use Lid Number
Mfr. No. 33011

Product Description

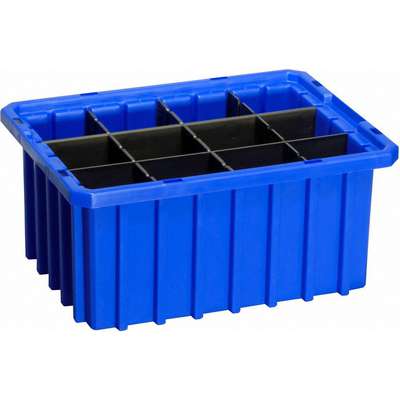

Featuring industrial-grade polymer construction, this dividable grid container has slots to create multi-sized compartments. The molded-in letter/number system allows easy parts tracking. The reinforcing ribs and strong stacking rims provide strength, rigidity, and shape retention. Optional black intersecting dividers, available separately, allow subdivision to 1-1/8" square.

Documents

Akro-Mils Cross Reference Catalog
Item Barcode
9163951
