SCHNEIDER ELECTRIC

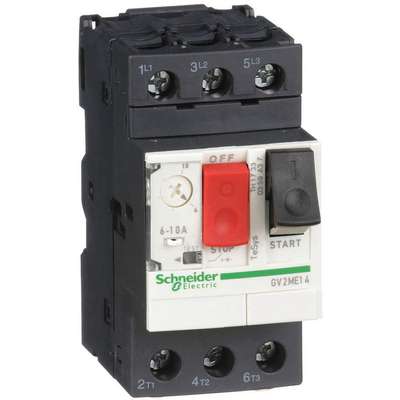

Schneider Electric Push Button Manual Motor Starter, No Enclosure, 6 to 10 Amps AC

Hover over image to magnify
Manual Motor Starter,Iec,6 To
PI_Asset_1365123
Manual Motor Starter,Iec,6 To
PI_Asset_1365123
Schneider Electric Push Button Manual Motor Starter, No Enclosure, 6 to 10 Amps AC Video
Double tap image to magnify
Manual Motor Starter,Iec,6 To
3CY89_SS01_R01_C23
Manual Motor Starter,Iec,6 To
3CY89_SS01_R01_C23
givnrdPXRFw

#916101-2Pkg Qty: 1

$216.50 pkg | $216.50 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Amps AC
6 to 10
Mfr. Part Number
GV2ME14
Brand
SCHNEIDER ELECTRIC
Number of Poles
3
Depth
2.6 in.
Package Quantity
1
Description/Special Features
Melting Alloy Thermal Overload, Single Unit
Phase Loss Sensitivity
No
Enclosure NEMA Rating
No Enclosure
Shipping Weight
.63 lb.
Enclosure Type
Open
Starter Type
IEC Style
Height
3-1/2 in.
Type
IEC
Item
Manual Motor Starter
Width
1-3/4 in.
General
HP @ 1 Phase - 115V
1/2
HP @ 3 Phase - 460-575V
5/7.5
HP @ 1 Phase - 120V
1/2 hp
HP @ 3 Phase - 460V
5
HP @ 1 Phase - 230V
1 1/2 hp
HP @ 3 Phase - 480V
5 hp
HP @ 3 Phase - 200V
2
HP @ 3 Phase - 575V
7 1/2 hp
HP @ 3 Phase - 208V
2 hp
Operator
Push Button
HP @ 3 Phase - 230V
3
Overload Relay Amp Setting
6 to 10A
HP @ 3 Phase - 240V
3 hp
Standards
UL, CSA

Product Description

IEC Manual Motor Starters

  • Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection Schneider Electric Can be used alone for local, manual control of a single motor. Operating current of instantaneous magnetic trip is approx. 13 times the max. thermal trip (nonadjustable setting). 10K AIR at 480V. Mechanical and electrical life: 100,000 operations, max. 25 operations per hr. UL Listed, CSA Certified, and CE Certified. Conforms to IEC standards.
