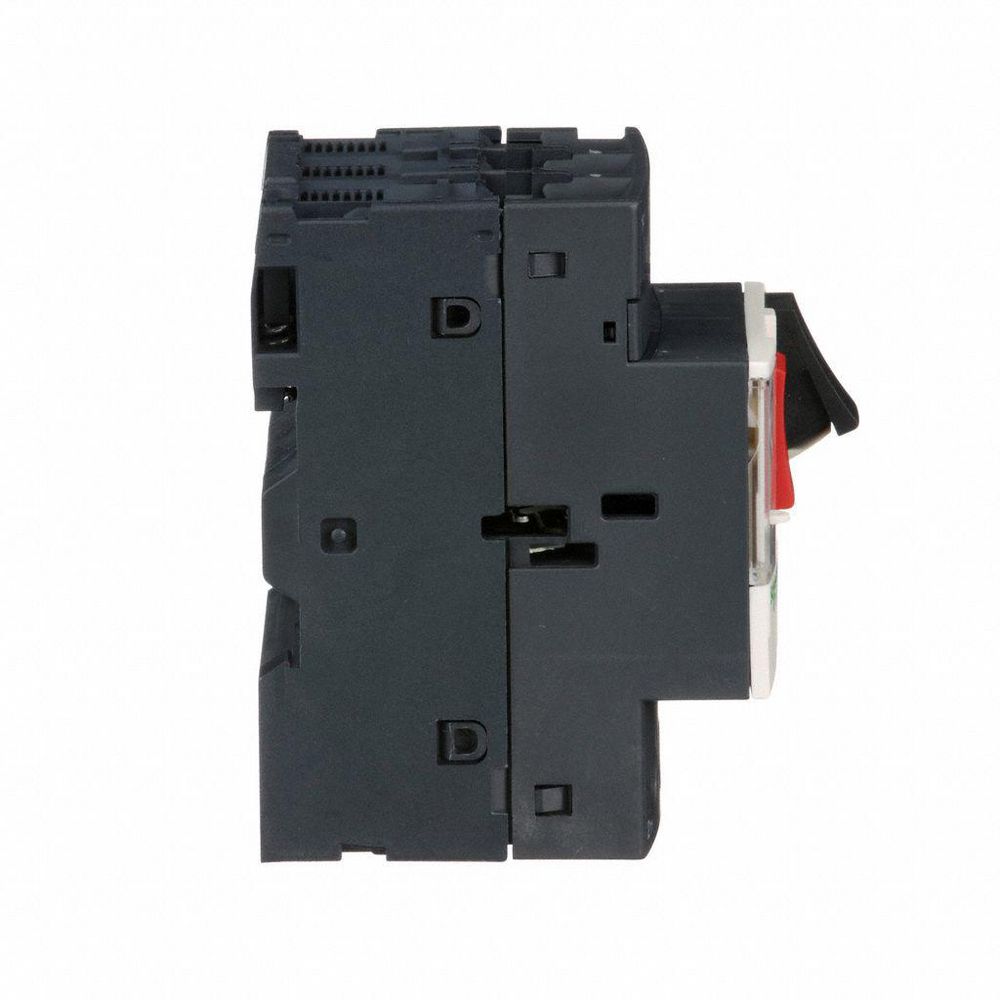

Schneider Electric Push Button Manual Motor Starter, No Enclosure, 2.5 to 4 Amps AC

Name: Schneider Electric Push Button Manual Motor Starter, No Enclosure, 2.5 to 4 Amps AC
Brand: SCHNEIDER ELECTRIC
SKU: 9283949
Price: 211.59 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#928394-9Pkg Qty: 1

$211.59 pkg | $211.59 ea

In Stock

Shipping to 43085

Expected to arrive Mon. Mar 31.

Technical Specifications

Key Specifications

Amps AC

2.5 to 4

Item

Manual Motor Starter

Brand

SCHNEIDER ELECTRIC

Mfr. Part Number

GV2ME08

Depth

2.6 in.

Number of Poles

Description/Special Features

Melting Alloy Ther Mal Overload, Single Unit

Package Quantity

Enclosure NEMA Rating

No Enclosure

Phase Loss Sensitivity

Enclosure Type

Open

Shipping Weight

.63 lb.

HP @ 1 Phase - 120 V

1/8 hp

Starter Type

IEC Style

HP @ 1 Phase - 230 V

1/3 hp

Type

IEC

Height

3-1/2 in.

Width

1-3/4 in.

General

HP @ 1 Phase - 115V

1/8

HP @ 3 Phase - 460-575V

2/3

HP @ 1 Phase - 120V

1/8 hp

HP @ 3 Phase - 460V

HP @ 1 Phase - 230V

1/3 hp

HP @ 3 Phase - 480V

2 hp

HP @ 3 Phase - 200V

3/4

HP @ 3 Phase - 575V

3 hp

HP @ 3 Phase - 208V

3/4 hp

Operator

Push Button

HP @ 3 Phase - 230V

Overload Relay Amp Setting

2.5 to 4A

HP @ 3 Phase - 240V

1 hp

Standards

CSA, UL

Product Description

IEC Manual Motor Starters

Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection Schneider Electric Can be used alone for local, manual control of a single motor. Operating current of instantaneous magnetic trip is approx. 13 times the max. thermal trip (nonadjustable setting). 10K AIR at 480V. Mechanical and electrical life: 100,000 operations, max. 25 operations per hr. UL Listed, CSA Certified, and CE Certified. Conforms to IEC standards.
