IDEAL

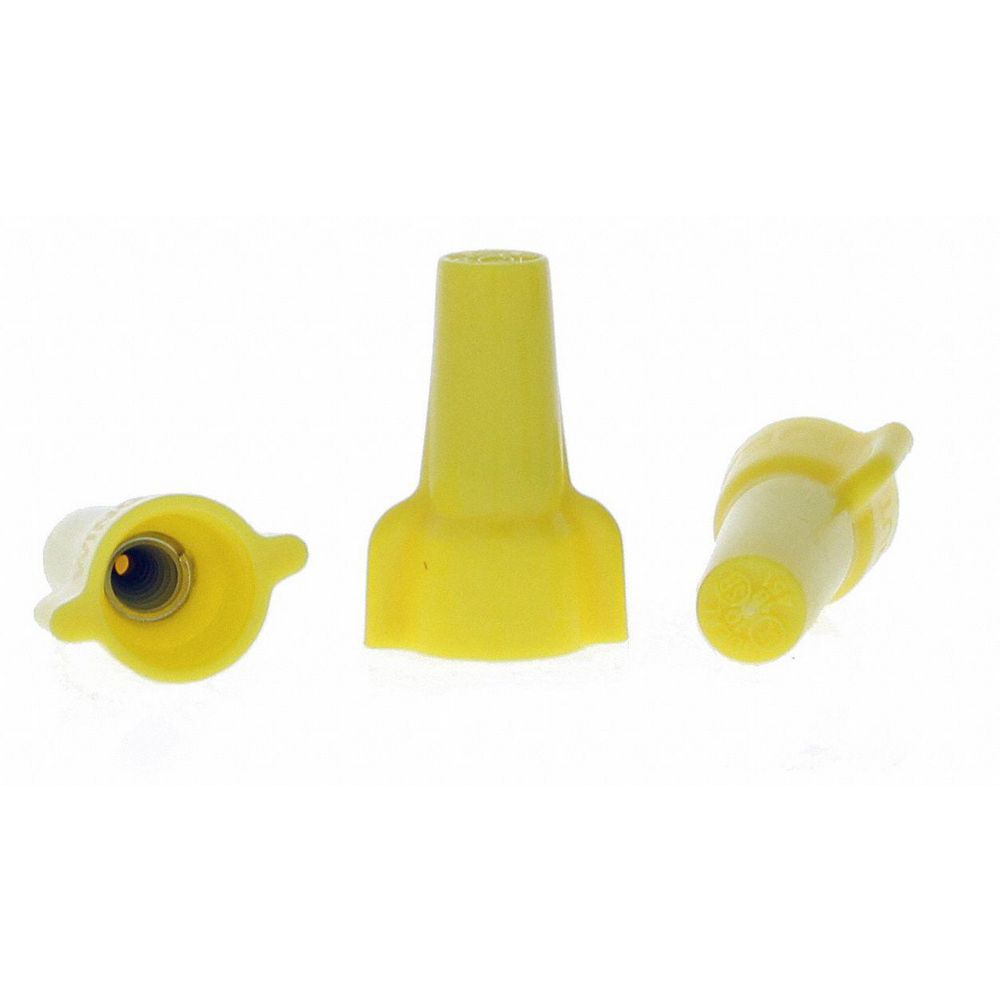

Ideal Twist On Wire Connector, Application General Purpose, Wire Connector Style Wing, Color Yellow

Hover over image to magnify
Twist On Wire Connector,18-10
PI_Asset_968799
PI_Asset_968800
Twist On Wire Connector,18-10
PI_Asset_968799
PI_Asset_968800
Ideal Twist On Wire Connector, Application General Purpose, Wire Connector Style Wing, Color Yellow Video
Double tap image to magnify
Twist On Wire Connector,18-10
9157426_1
968800_3
Twist On Wire Connector,18-10
9157426_1
968800_3
URqSu5EKxHg

#915742-6Pkg Qty: 225

$44.80 pkg | $0.20 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Application
General Purpose
Minimum Single Wire Size
18 AWG
Brand
IDEAL
Minimum Wire Combination
(2) 18 AWG
Color Family
Yellow
Minimum Wire Size
18 AWG
Connector Type
451
Package Quantity
225
Height
1.01 in.
Series
451
Item
Twist On Wire Connector
Shipping Weight
.95 lb.
Maximum Single Wire Size
10 AWG
Type
Twist-On
Maximum Voltage
600 VAC
Width
0.69 in.
Maximum Wire Combination
(3) 12 AWG
Wire Connector Style
Wing
Maximum Wire Size
10 AWG
Wire Type
Copper
Mfr. Part Number
30-451J
General
For Conductor Material
Copper
Standards
CSA Certified
For Wire Size
10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG
Strip Length
3/8 in
Max. Temp.
221°F
Twist-On Wire Size Ranges
18 AWG – 10 AWG
Maximum Conductors
4
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes

Product Description

The square-wire spring threads directly onto conductors for fast, secure connections. A deep skirt protects against flash-over and turned-back strands for maximum dielectric strength.
