TELEMECANIQUE SENSORS

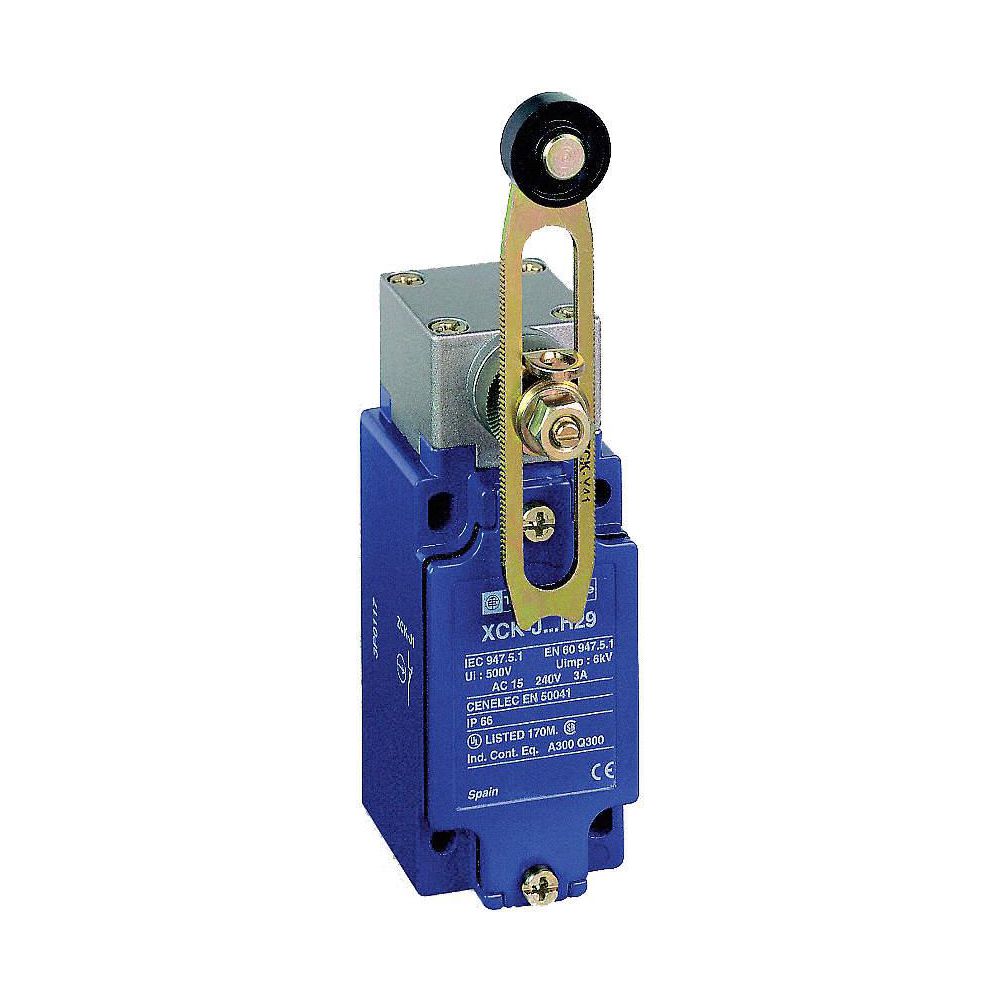

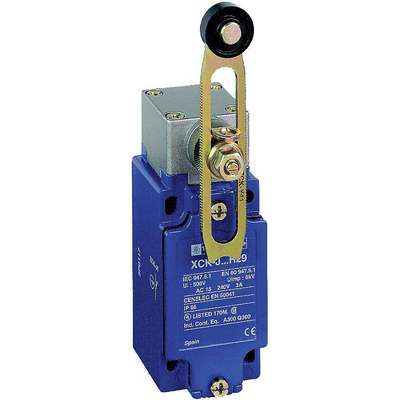

Telemecanique Sensors Rotary, Adjustable Roller Lever Heavy Duty Limit Switch; Location: Side, Contact Form: 1NC/1NO, CW,

Hover over image to magnify

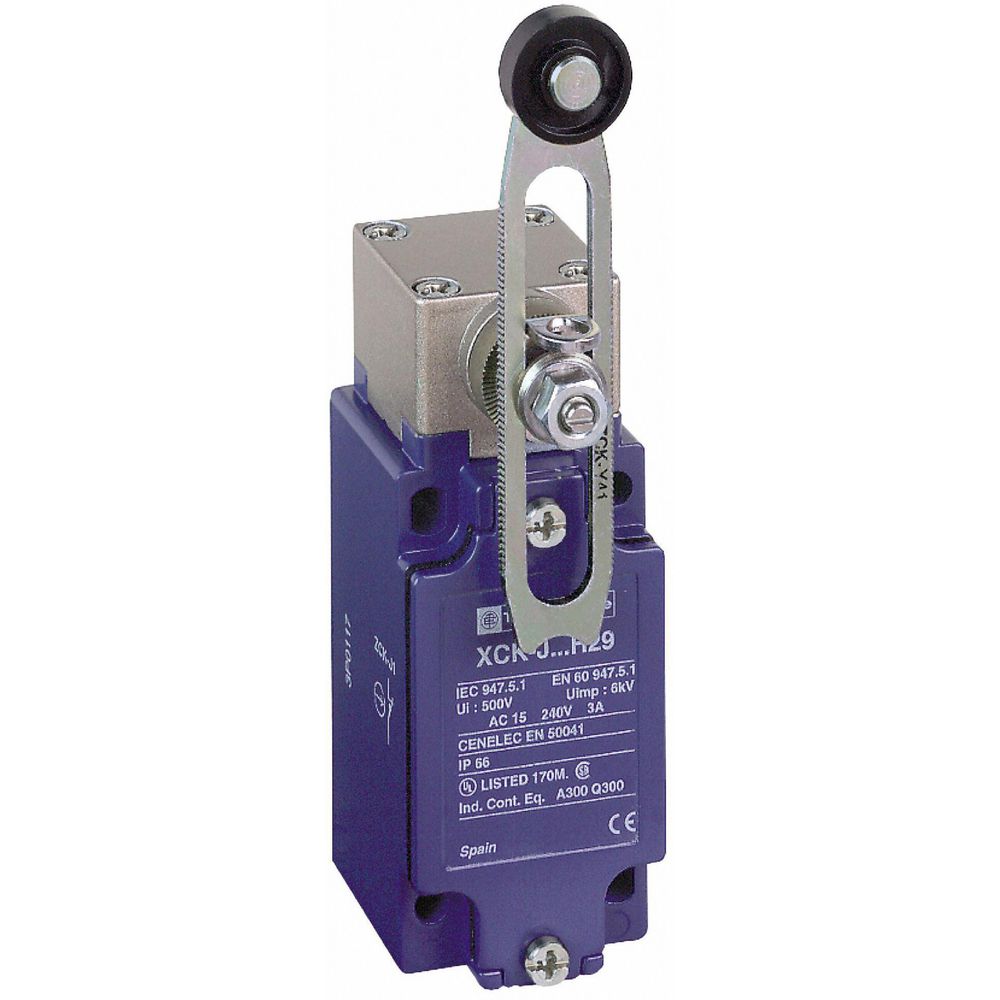

Hvy Dty Lmt Swtch,Side
PI_Asset_950860
Hvy Dty Lmt Swtch,Side
PI_Asset_950860
Double tap image to magnify
Hvy Dty Lmt Swtch,Side
9145982_1
Hvy Dty Lmt Swtch,Side
9145982_1

#914598-2Pkg Qty: 1

$154.88 pkg | $154.88 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 240 V
Item
Heavy Duty Limit Switch
Actuator Length
1.57 in. to 3.35 in.
Limit Switch Style
Heavy Duty Limit Switch
Actuator Location
Side
Mfr. Part Number
XCKJ10541H7
Actuator Style
Adjustable Roller Lever
Movement
CW, CCW
Amperage
10 A
NEMA Rating
1, 2, 4, 12, 13
Basic Actuator Style
Rotary
Operating Force
2.21 in.-lb
Body Depth
2.36 in.
Operating Temperature Range
-1 deg. F to 158 deg. F
Body Height
4.01 in.
Package Quantity
1
Body Material
Zinc
Replacement Body
2EJ20
Body Style
Standard
Replacement Head
2EJ07
Body Width
1.57 in.
Roller Diameter
3/4 in.
Boot Sealed Actuator
No
Roller Material
Thermoplastic
Brand
TELEMECANIQUE SENSORS
Roller Width
0.22 in.
Contact Form
1NC/1NO
Series
Xckj
DC Contact Rating
10 A @ 240 V
Shipping Weight
1.1 lb.
Depth
1.73 in.
Style
Adjustable Thermoplastic Roller Lever
Description/Special Features
1/2 in. NPT Conduit Entry
Threaded for Panel Mounting
No
Electrical Connection
Screw Terminals
Travel
Total Travel 90
Enclosure Rating
1, 2, 4, 12
Type
General Duty
Hazardous Location
No
Voltage
240 VAC/DC
Height
3.94 in.
Voltage Rating
240 VAC/DC
IP Rating
66
Width
1.57 in.
General
AC Contact Rating - Limit Switch
10A @ 240V
DC Contact Rating - Limit Switch
10A @ 240V
Actuator Length - Limit Switch
1.57 in to 3.35 in
Mounting - Limit Switch
Surface
Actuator Location - Limit Switch
Side
Mounting Hole - Limit Switch
(4) 0.21 in dia
Actuator Style - Limit Switch
Adjustable Roller Lever, Rotary
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Basic Actuator Style - Limit Switch
Rotary
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Body Depth - Limit Switch
2.36 in
Operating Temp. Range
-13° to 158°F
Body Height - Limit Switch
4.01 in
Special Features
1/2 in. NPT Conduit Entry
Body Style - Limit Switch
Standard
Standards
UL, CSA, CE
Body Width - Limit Switch
1.57 in
Stem Thread - Limit Switch
No Stem
Contact Form- Switches
1NC/1NO

Product Description

This heavy duty limit switch features thermoplastic roller construction and zinc body construction. Use in packaging, materials handling, conveying, machining, and food and beverage handling.
