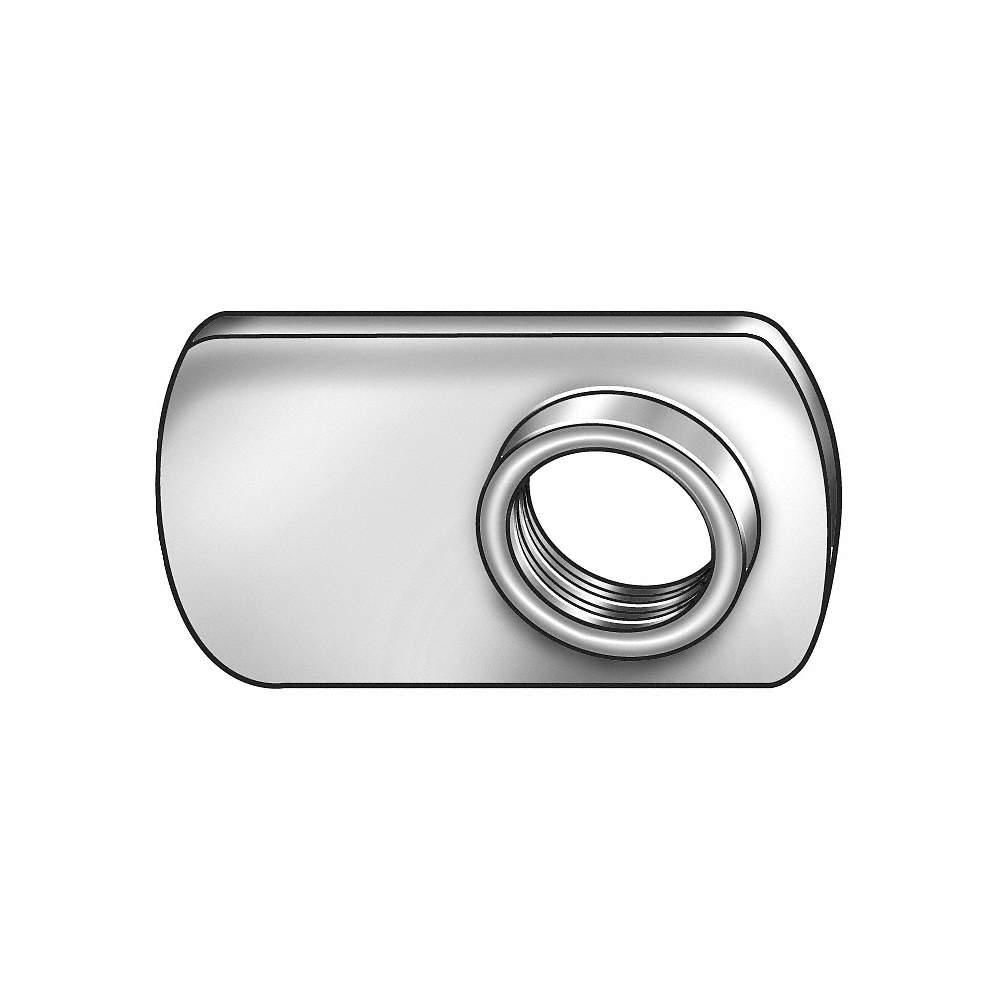

Weld Nut: 3/8"-16 Thread, Tab, 9/64 in Base Ht, 5/8 in Base Wd, 63/64 in Base Lg, Steel, 50 PK
Hover over image to magnify
#915575-6 | Pkg Qty: 50
$22.68 pkg | $0.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Base Length
63/64 in.
Nut Style
Tab Base Weld Nut with Offset Hole
Base Thickness
9/64 in.
Package Quantity
50
Base Width
5/8 in.
Pilot Diameter
7/16 in.
Basic Material
Steel
Pilot Height
0.090 in.
Brand
APPROVED SUPPLIER
Pilot Hole Size
29/64 in.
Fastener Finish
Plain
Shipping Weight
1.2 lb.
Fastener Thread Direction
Right Hand
System of Measurement
Fractional
Fastener Thread Type
UNC (Coarse)
Thread Direction
Right
Finish
Plain
Thread Size
3/8"-16
Item
Weld Nut
Thread Type
Coarse
Material
Steel
Type
Tab Base with Offset Hole
Mfr. Part Number
1LAG2
General
Application
To Be Used With Carbon Steel Materials To Reinforce An Area, Tab Design Allows Welder To Use Multiple Sizes Of Electrodes
Collar Height
0.094 in
Base Shape
Tab
For Hole Diameter
29/64 in
Center of Pilot Hole to Outside Edge
0.344 in.
Hole Center to Outside Edge
11/32 in
Collar Diameter
0.438 in
Hole Location
Offset
Product Description
Tab Base Weld Nuts Nuts with offset hole have a single projection and can be used to reinforce or brace an area, while nuts with a center hole have multiple projections and provide the greatest weld strength. Hex Base Weld Nuts
- Pkg. of 50 Allow rapid installation into holes prior to welding. Steel material.
Expertly Selected Product Pairings
Item Barcode
Weld Nut,3/8-16,63/64 x 5/8,Pk
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1LAG2 | Weld Nut,3/8- 16,63/64 x 5/ |
 | UNSPSC CODES | 31161731 | |
 | VMRS (ATA) CODES | 053-010-001 | Weld Nut,3/8- 16,63/64 x 5/ |
