OMRON

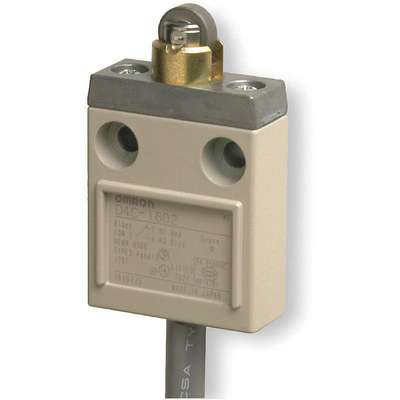

Omron Plunger, Roller General Purpose Limit Switch; Location: Top, Contact Form: SPDT, Top Movement

Hover over image to magnify
Compact Limit Switch,Top
PI_Asset_929029
Compact Limit Switch,Top
PI_Asset_929029

#914467-3 | Pkg Qty: 1

$148.48 pkg | $148.48 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Jan 14 - Wed. Jan 15.
|

Technical Specifications

Key Specifications
AC Contact Rating
5 A @ 240 V
Mfr. Part Number
D4C1602
Actuator Location
Top
Movement
Top
Actuator Style
Plunger
NEMA Rating
3, 4, 13
Amperage
5 A
Operating Force
11.8N-m
Basic Actuator Style
Plunger
Operating Temperature Range
-1 deg. F to 158 deg. F
Body Depth
0.63 in.
Package Quantity
1
Body Height
2.13 in.
Replacement Head
2CLW7
Body Material
Aluminum
Roller Diameter
0.47 in.
Body Style
Miniature
Roller Material
Stainless Steel
Body Width
1.33 in.
Roller Width
0.20 in.
Boot Sealed Actuator
No
Series
D4C
Brand
OMRON
Shipping Weight
.93 lb.
Contact Form
SPDT
Style
Roller Plunger
DC Contact Rating
Not Rated
Threaded for Panel Mounting
No
Depth
0.63 in.
Travel
Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm
Electrical Connection
3m Cable, SJT
Type
Compact, Sealed, Pre-Wired
Hazardous Location
No
Voltage
240 VAC
Height
2.64 in.
Voltage Rating
240 VAC
IP Rating
67
Width
1.57 in.
Item
General Purpose Limit Switch
Wiring Entry
3m Cable
Limit Switch Style
General Purpose Limit Switch
General
AC Contact Rating - Limit Switch
5A @ 240V
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
Plunger, Roller
Mounting Hole - Limit Switch
(2) 0.20 in dia
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Body Depth - Limit Switch
0.63 in
Mounting Hole Spacing - Limit Switch
0.98 in
Body Height - Limit Switch
2.13 in
Operating Temp. Range
-14° to 158°F
Body Style - Limit Switch
Miniature
Standards
UL, CSA, CE
Body Width - Limit Switch
1.33 in
Stem Thread - Limit Switch
No Stem

Product Description

This compact limit switch is engineered to be thin, durable, and highly sealed. The triple-sealed design includes a nitrile rubber packing seal on the plunger section, a nitrile rubber cap on the switch section, and an encapsulating material around the cable entrance. It also features rugged, die-cast housing.
