TELEMECANIQUE SENSORS

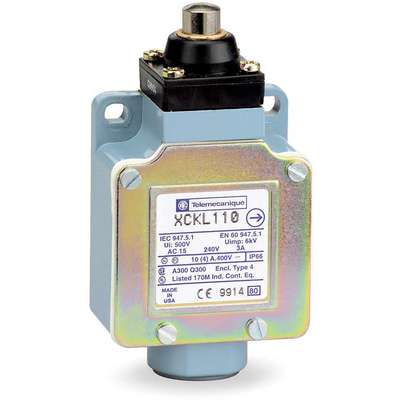

Telemecanique Sensors Plunger General Purpose Limit Switch; Location: Top, Contact Form: 1NC/1NO, Vertical Movement
Hover over image to magnify
#916107-3 | Pkg Qty: 1
$167.44 pkg | $167.44 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 240 V
IP Rating
66
Actuator Length
0.98 in.
Item
General Purpose Limit Switch
Actuator Location
Top
Limit Switch Style
General Purpose Limit Switch
Actuator Style
Plunger
Mfr. Part Number
XCKL110H7
Amperage
10 A
Movement
Vertical
Basic Actuator Style
Plunger
NEMA Rating
1, 2, 3, 4, 12
Body Depth
1.18 in.
Operating Force
3.40 lb.
Body Height
2.83 in.
Operating Temperature Range
-1 deg. F to 158 deg. F
Body Material
Zinc
Package Quantity
1
Body Style
Miniature
Replacement Body
2EJ31
Body Width
2.04 in.
Replacement Head
2EH99
Boot Sealed Actuator
No
Series
Xckl
Brand
TELEMECANIQUE SENSORS
Shipping Weight
.55 lb.
Contact Form
1NC/1NO
Style
Metal End Plunger
DC Contact Rating
10 A @ 240 V
Threaded for Panel Mounting
No
Depth
1.18 in.
Travel
0.22 in.
Description/Special Features
1/2 in. NPT Conduit Thread, Snap Action
Type
General Duty
Electrical Connection
Screw Terminals
Voltage
240 VAC/DC
Enclosure Rating
1, 2, 3, 4, 12; IP66
Voltage Rating
240 VAC/DC
Hazardous Location
No
Width
2.04 in.
Height
2.83 in.
Wiring Entry
1/2 in. NPT
General
AC Contact Rating - Limit Switch
10A @ 240V
DC Contact Rating - Limit Switch
10A @ 240V
Actuator Length - Limit Switch
0.98 in
Mounting - Limit Switch
Surface
Actuator Location - Limit Switch
Top
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Style - Limit Switch
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole Spacing - Limit Switch
1.61 in
Body Depth - Limit Switch
1.18 in
Operating Temp. Range
-13° to 158°F
Body Height - Limit Switch
2.83 in
Special Features
1/2 in. NPT Conduit Thread, Snap Action
Body Style - Limit Switch
Miniature
Standards
UL, CSA, CE
Body Width - Limit Switch
2.04 in
Stem Thread - Limit Switch
No Stem
Contact Form- Switches
1NC/1NO
Product Description
This compact limit switch features durable design elements including zinc body material. Use in packaging, materials handling, conveying, machining, and food and beverage handling.
Expertly Selected Product Pairings
Documents
Item Barcode
Compact Lmt Switch,Top
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4B803 | Compact Lmt Switch,Top |
 | UNSPSC CODES | 39122213 | |
 | VMRS (ATA) CODES | 053-006-009 | Compact Lmt Switch,Top |
