HUBBELL WIRING DEVICE-KELLEMS

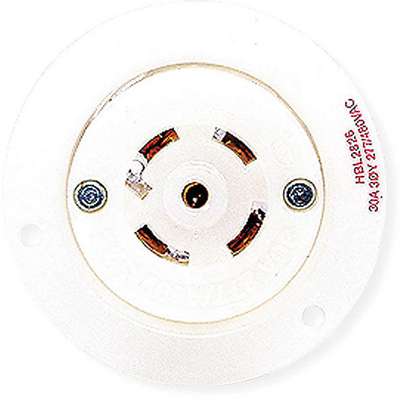

Hubbell Wiring Device-Kellems White Flanged Locking Receptacle, 30 Amps, 277/480VAC Voltage, NEMA Configuration: L22-30P

Hover over image to magnify

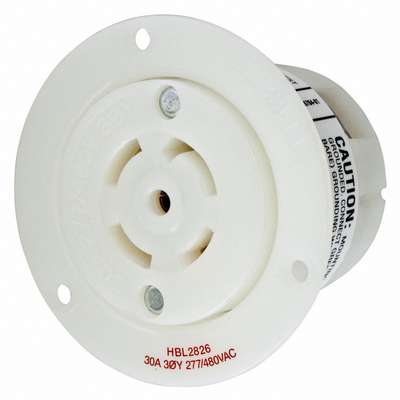

Receptacle,480V,30A,L22-30P,4P,
PI_Asset_1983520
Receptacle,480V,30A,L22-30P,4P,
PI_Asset_1983520
Double tap image to magnify
Receptacle,480V,30A,L22-30P,4P,
3D661_1
Receptacle,480V,30A,L22-30P,4P,
3D661_1

#914308-3Pkg Qty: 1

$188.60 pkg | $188.60 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 24.
|

Technical Specifications

Key Specifications
Accessory Group
E
Mfr. Part Number
HBL2826
Amperage
30 A
Minimum Operating Temperature
-40 °C
Amps
30 A
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
Mounting Type
Flush Mount
Color Family
White
NEMA Configuration - Plugs & Connectors
L22-30
Connection Orientation
Straight
NEMA Rating
1
Contact Material
Brass
NEMA Receptacle Configuration
L22-30R
Cover Type
No Cover
Number of Gangs
1
Current Rating
30 A
Number of Poles
4
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Number of Wires
5
For Environment
Dry
Package Quantity
1
Grade
Industrial
Phase
Three
Grounding
Grounded
Plate Code
E
HP
10 HP
Polarized
Yes
Horsepower
10 hp
Shipping Weight
.37 lb.
Housing Color
White
Shrouded
No
Housing Material
Nylon
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
IP Rating
IP20
Sub-Category
Flanged Receptacles
Includes
Mounting Screws
UL 94 Flammability Rating
V-2
Item
Flanged Locking Receptacle
Voltage
277/480V AC
Material
Stainless Steel
Voltage Rating
277/480V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
Maximum Wire Size
8 AWG
General
Flange Type
Flanged
Special Features
With Cover
HP
10.0

Product Description

NEMA Twist-Lock® Devices Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
