Home All Products Electrical Plugs & Connectors Twist Lock Plugs SKU: 914308
Share
Print
HUBBELL WIRING DEVICE-KELLEMS

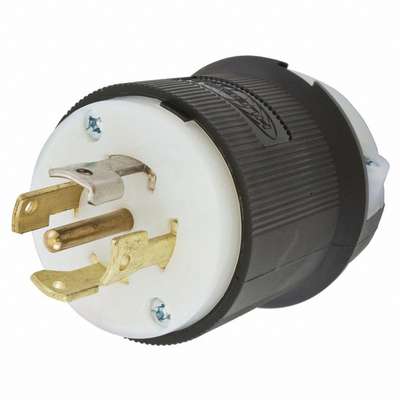

Hubbell Wiring Device-Kellems 30A Industrial Grade Non-Shrouded Locking Plug, Black/White; NEMA Configuration: L22-30P

Hover over image to magnify
Plug,277/480VAC,30A,L22-30P,4P,
PI_Asset_1982011
Plug,277/480VAC,30A,L22-30P,4P,
PI_Asset_1982011
Double tap image to magnify
Plug,277/480VAC,30A,L22-30P,4P,
5C789_1
Plug,277/480VAC,30A,L22-30P,4P,
5C789_1

#914308Pkg Qty: 1

$74.90 pkg | $74.90 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 07.
|

Technical Specifications

Key Specifications
Amperage
30 A
Maximum Wire Size
8 AWG
Antimicrobial
No
Mfr. Part Number
HBL2821
Blade Material
Brass
Minimum Operating Temperature
-40 °C
Body Length
2.33 in.
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L22-30
Color Family
Black / White
NEMA Plug Configuration
L22-30P
Connection Orientation
Straight
Number of Blades
5
Cord Size
0.350 in. to 1.150 in.
Number of Poles
4
Corrosion Resistant
No
Number of Wires
5
Current Rating
30 A
Outside Diameter
2.33 in.
Description
Insulgrip, Grounding
Overall Length
2.33 in.
Face Diameter
2.21 in.
Package Quantity
1
For Environment
Dry
Phase
Three
Grade
Industrial
Polarized
Yes
Grounding
Grounded
Shipping Weight
.35 lb.
HP
10 HP
Shrouded
No
Horsepower
10 hp
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Housing Material
Nylon
Sub-Category
Plugs
IP Rating
IP20
UL 94 Flammability Rating
HB
Item
Locking Plug
Voltage
277/480V AC
Material
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L22-30P
Boot Code
C
Voltage - Plugs and Receptacles
277/480V AC
HP
10.0

Product Description

NEMA Twist-Lock® Devices

  • Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
