LEGRAND

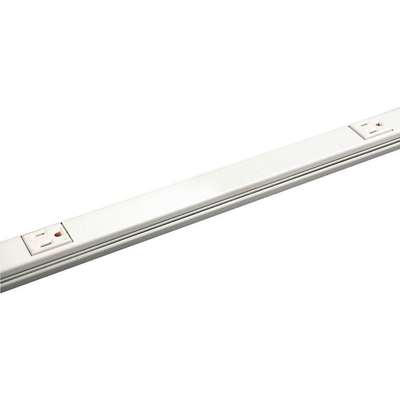

Legrand Prewired Raceway, Ivory, 15 Amps, Number of Outlets: 6, 6 ft. Length
Hover over image to magnify
#914043-4 | Pkg Qty: 1
$106.87 pkg | $106.87 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Number of Outlets
6
Amps
15 A
Outlet Center Distance
12 in.
Brand
LEGRAND
Overall Height
13/16 in.
Color Family
White
Overall Width
1-5/16 in.
Item
Prewired Raceway
Package Quantity
1
Length
6 ft.
Receptacle Type
NEMA 5-15R, NEMA 5-20R
Material
Steel
Series
Plugmold
Mfr. Part Number
V20GB612
Shipping Weight
3 lb.
Mounting Style
Screw Through Base Or Supporting Clip
Voltage
125 VAC
Number of Circuits
1
Wire Size
#12 THHN
General
Includes
(2) Blank End Fittings, Base Coupling
Raceway Height
13/16 in
NEMA Receptacle Type
NEMA 5-15R
Raceway Width
1 5/16 in
Number of Wire Leads
3
W x H
1 5/16 in W x 13/16 in H
Optional Entrance Fitting
Back Feed Box, Entrance End Fitting
Product Description
Wiremold Plugmold®
- 12-ga. insulated solid wire
- Select 6" or 12" centers up to 12 outlets per raceway. Include 2 end caps. C-
- Plugmold® and PlugTrak® Prewired Raceway Systems
- 120VAC receptacles (NEMA 5-15) Individual receptacles on metallic units, duplex receptacles on nonmetallic units Ivory color, except nonmetallic Hubbell® units are office white
- Multioutlet, hardwired units have multiple spacing configurations for great flexibility in designing wire and cable installations. Optional entrance fittings adapt raceways to existing power circuits.
Expertly Selected Product Pairings
Item Barcode
Raceway,Prewired,6 Ft
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2W606 | Raceway, Prewired,6 Ft |
 | UNSPSC CODES | 39131709 | |
 | VMRS (ATA) CODES | 053-007-002 | Raceway, Prewired,6 Ft |
