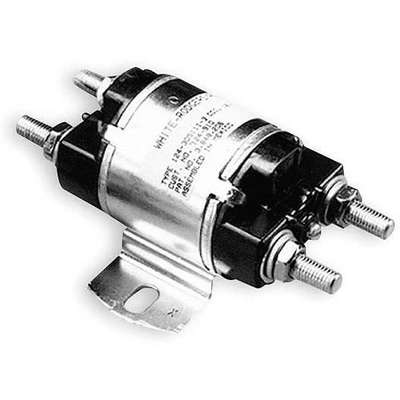

White-Rodgers DC Power Solenoid, 12 Coil Voltage DC, 100/50 Amps, Duty Cycle: Continuous

Name: White-Rodgers DC Power Solenoid, 12 Coil Voltage DC, 100/50 Amps, Duty Cycle: Continuous
Brand: WHITE-RODGERS
SKU: 9138507
Price: 81.12 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#913850-7Pkg Qty: 1

$81.12 pkg | $81.12 ea

In Stock

Shipping to 43085

Expected to arrive Fri. Apr 04.

Technical Specifications

Key Specifications

Amperage

100/50 A

Item

DC Power Solenoid

Brand

WHITE-RODGERS

Length

4.69 in.

Coil Type

Isolated

Mfr. Part Number

124 305111S1

Contact Form

SPDT

Mounting Base

Std. Bracket

Contact Material

Silver Alloy

Package Quantity

Current Rating

12 A

Series

124

Duty Cycle

Continuous

Shipping Weight

1.45 lb.

Enclosure

Dust Resistant

Width

3.13 in.

General

Coil Resistance

13.2 ohm

Height

2.19 in

Coil Termination

#10-32 UNF-2A Thread

Length

4.69 in

Coil Type

Isolated

Maximum Operating Temperature

120 Degrees F

Coil Voltage

12 V DC

Minimum Operating Temperature

-20 Degrees F

Contact Form

SPDT

Mounting Base

Standard Bracket

Contact Material

Silver Alloy

Resistance Properties

Dust Resistant, Water Resistant

Contact Termination

5/16 in-24 UNF-2A thread

Series

124

Current Rating

12 A

Weight

19 oz

Duty Cycle

Continuous

Width

3.13 in

Product Description

DC Power Solenoid, Coil Voltage DC 12, Amps 100/50, Coil Type Isolated, Contact Form SPDT, Coil Termination #10-32 UNF-2A Thread, Contact Termination 5/16-24 UNF-2A Thread, Contact Material Silver Alloy, Duty Cycle Continuous, Mounting Base Std. Bracket, Series 124, Enclosure Dust Resistant, Standards, Includes -
