JET

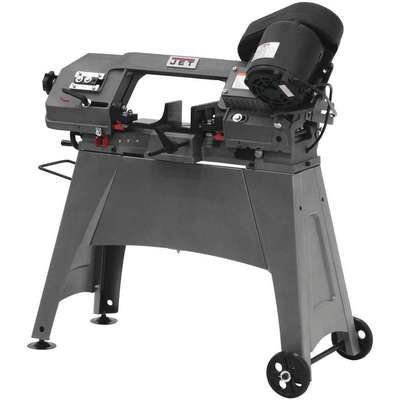

JET 414458 Horizontal/Vertical Combo, Stationary Band Saw; 64-1/2 in. Blade Length, 3 Speeds

Hover over image to magnify
Horz/Vert Band Saw,1/2HP,115/
PI_Asset_979402
Horz/Vert Band Saw,1/2HP,115/
PI_Asset_979402
JET 414458 Horizontal/Vertical Combo, Stationary Band Saw; 64-1/2 in. Blade Length, 3 Speeds Video

#913375-1 | Pkg Qty: 1

$918.61 pkg | $918.61 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Blade Length
64-1/2 in.
Operation
Manual
Blade Thickness
0.025 in.
Orientation
Horizontal/Vertical Combo
Brand
JET
Overall Depth
36 in.
Current Rating
9.0/4.5 A
Overall Height
39-1/2 in.
Horsepower
0.5 HP
Overall Width
20 in.
Hz
60 Hz
Package Quantity
1
Item
Stationary Band Saw
Phase
1
Material Application
Metal
Shipping Weight
180 lb.
Mfr. Part Number
414458
Voltage
115/230V AC
Number of Speed Settings
3
General
Blade Wheels Dia.
7.375 in.
Rectangular Cutting Capacity - Horizontal
2 in. x 6 in., 5 in. x 5-3/4 in.
Cutting Capacity Square
5 in.
Round Cutting Capacity - Horizontal
5 in.
Includes
Vertical Worktable; 1/2 in. Carbon Steel Blade; Adjustable Material Stop
SFPM Range
80 to 200
Max. Blade Width
1/2 in.
Throat Depth - Vertical
6 in.
Miter Angle Range
45 Degrees, 90 Degrees

Product Description

Manual combination vertical and horizontal band saws are manually operated in both the vertical and horizontal position. When the saw is in the vertical position, the workpiece rests on a table while the operator pushes the material through the blade. When the saw is in the horizontal position, the workpiece is clamped to a table and the saw head is lowered to make the cut. Manually operated saws are used in low-volume machine and maintenance shops when similar materials and cuts are made.
