ARO

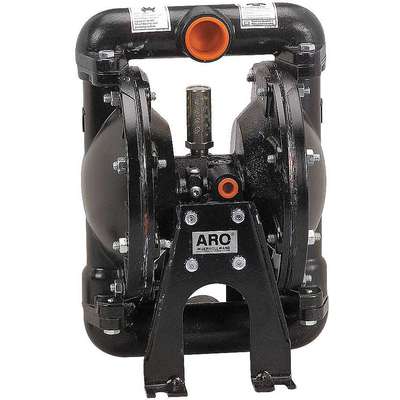

Double Diaphragm Pump: 1 1/2 in Inlet/Outlet Size, NPT Connection, 1/2 in FNPT Air Inlet Size

Hover over image to magnify
Pump,Diaphragm
Pump,Diaphragm

#913099-8 | Pkg Qty: 1

$2,334.02 pkg | $2,334.02 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
ATEX, CE, RoHS, REACH
Maximum Diameter Solids
1/4 in.
Air Inlet Size
1/2 in. FNPT
Maximum Flow
90 gpm
Ball Material
Acetal
Maximum Flow (GPM)
90
Body Material
Aluminum
Maximum Operating PSI
120
Brand
ARO
Maximum Operating Pressure
120 psi
Check Seat Material
Polypropylene
Maximum Temperature (Deg. F)
150°F
Connection Style
NPT
Mfr. Part Number
666150-362-C
Diaphragm Design
Nitrile
Mfr. Warranty Length
5 yr.
Diaphragm Material
Nitrile
Operation Type
Air Operated
Flow
80 gpm
Pack Quantity
1
Height
14-1/2 in.
Pump Operation Type
Air Operated
Housing Material
Aluminum
Self-Priming Dry
10 ft.
Inlet/Outlet
1-1/2 in.
Self-Priming Wet
15 ft.
Inlet/Outlet Size
1-1/2 in.
Shipping Weight
44 lb.
Item
Double Diaphragm Pump
Valve Type
Ball
Length
23-7/8 in.
Width
16 in.
Manifold Connection
Single
General
Diaphragm Material - Pumps
Nitrile
Max. Dia. Solids
1/4 in
Housing Material - Pumps
Aluminum

Product Description

Metallic Air-Operated Double Diaphragm Pumps ARO Self-priming pumps are capable of running dry and can easily handle slurries, solvents, and other high-viscosity liquids. Constructed of highly fatigue- and abrasion-resistant materials. Air-pressure air valve design helps prevent stalling. General Purpose
