ARO

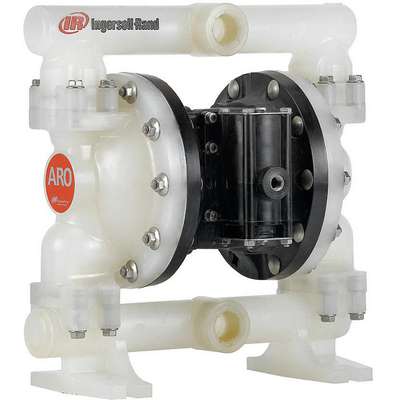

Polypropylene Santoprene Single Double Diaphragm Pump, 53 gpm gpm, 120 psi
Hover over image to magnify
#924396-4 | Pkg Qty: 1
$2,125.19 pkg | $2,125.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CE, RoHS, REACH
Manifold Connection
Single
Air Inlet Size
1/4 in. FNPT
Maximum Diameter Solids
1/8
Ball Material
Santoprene®
Maximum Flow
53 gpm
Body Material
Polypropylene
Maximum Flow (GPM)
53 gpm
Brand
ARO
Maximum Operating PSI
120
Check Seat Material
Polypropylene
Maximum Operating Pressure
120 psi
Connection Style
NPT
Maximum Temperature (Deg. F)
150°F
Diaphragm Design
Santoprene®
Mfr. Part Number
PD10P-APS-PAA
Diaphragm Material
Santoprene®
Mfr. Warranty Length
5 yr.
Flow
53 gpm
Operation Type
Air Operated
Height
14-13/16 in.
Package Quantity
1
Housing Material
Polypropylene
Pump Operation Type
Air Operated
Inlet/Outlet
1 in. NPT
Self-Priming Dry
19 ft.
Inlet/Outlet Size
1 in.
Shipping Weight
22.75 lb.
Item
Double Diaphragm Pump
Valve Type
Ball
Length
14-5/16 in.
Width
11 in.
General
Diaphragm Material - Pumps
Santoprene(R)
Max. Dia. Solids
1/8 in
Housing Material - Pumps
Polypropylene
Product Description
Air-Operated Diaphragm Pumps EXP Series
- Provide stall-free, ice-free operation. Pumps feature Quick Dump exhaust valves that divert cold exhaust air from ice-prone components to help prevent freezing. Unbalanced air valve design helps avoid stalling issues associated with other pumps. Suitable for wastewater treatment, recirculating plating solutions, bulk transfer, and chemical formulation applications. Flanges are standard ANSI 150# flanges. Flange kits are not included. 5-yr. manufacturers warranty.
