SQUARE D

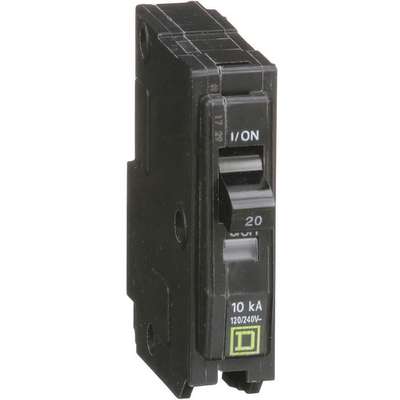

Square D Plug In Circuit Breaker, QO, Number of Poles 1, 20 Amps, 120/240 VAC, Standard

Hover over image to magnify
Circuit Breaker,20 A
PI_Asset_1363559
Circuit Breaker,20 A
PI_Asset_1363559
Double tap image to magnify
Circuit Breaker,20 A
1D234_SS01_R01_C23
Circuit Breaker,20 A
1D234_SS01_R01_C23

#912774Pkg Qty: 1

$24.47 pkg | $24.47 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Air Rating
10kA at 120/240VAC
Air @ 120 VAC
10kA
Maximum DC Voltage
48
Air @ 240 VAC
10kA
Maximum Wire Size
8 AWG
Air @ 48 VDC
5kA
Mfr. Part Number
QO120
Amperage
20 A
Minimum Wire Size
14 AWG
Amps
20 A
Number of Poles
1
Brand
SQUARE D
Package Quantity
1
Circuit Breaker Type
Standard
Panelboard Mounting
Plug-In
DC Voltage Rating
48VDC
Phase
Single
Depth
2.91 in.
Phase Connection
Any
For Use With
QO Load Centers and NQ Panelboards
Series
QO
Frame Size
100A/QO
Shipping Weight
.3 lb.
High Amp Trip Setting
27
Terminal Connection
Pressure plate
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Miniature Circuit Breaker
Voltage
120 - 240VAC
Length
3 in.
Width
3/4 in.
General
Circuit Breaker Actuator
Paddle
Min. Operating Temp.
104°F
Circuit Breaker Mounting Style
Plug In
Standards
CSA Certified, HACR, Switch Duty

Product Description

These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.

Expertly Selected Product Pairings

Padlock Attachment
$13.98 pkg | $13.98 ea
Item: 910003-1 | Pkg Qty: 1
Padlock Attachment
$11.48 pkg | $11.48 ea
Item: 910176-8 | Pkg Qty: 1
Handle Lock Off
$5.83 pkg | $5.83 ea
Item: 913374-1 | Pkg Qty: 1
Handle Clamp,Direct,125A,0.
$11.80 pkg | $11.80 ea
Item: 917579-5 | Pkg Qty: 1

Documents

QO and QOB Miniature Breakers Catalog
