PARKER

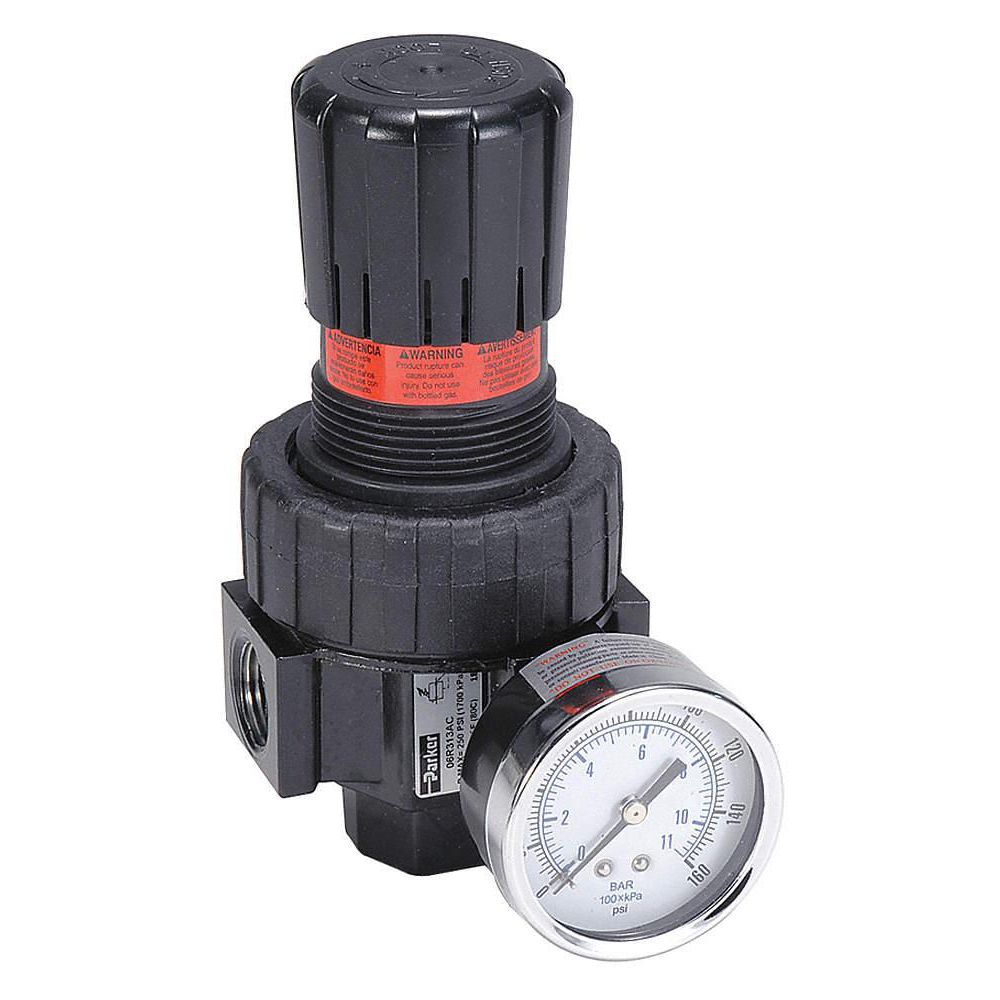

Compressed Air Regulator: Zinc, 3/8 in NPT, 60 cfm, 2 psi to 125 psi, 125 psi Max Op Pressure

Hover over image to magnify
Pneumatic Regulator,3/8 In
Pneumatic Regulator,3/8 In
Double tap image to magnify
Pneumatic Regulator,3/8 In
Pneumatic Regulator,3/8 In

#912668Pkg Qty: 1

$147.71 pkg | $147.71 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 04.
|

Technical Specifications

Key Specifications
Adjustment
0 to 125 psi
Maximum Temperature
175 deg. F
Adjustment Knob
Non Rising
Mfr. Part Number
06R218AC
Air Consumption
scfm
NPT
3/8 in.
Body Material
Aluminum
Overall Height
6.08 in.
Brand
PARKER
Overall Length
2.74 in.
Item
General Purpose Air Regulator
Overall Width
2.84 in.
Length
2.74 in.
Package Quantity
1
Material
Zinc/Plastic
Pipe Size
3/8 in.
Maximum Flow
60 cfm
Series
6
Maximum Inlet Pressure
250 psi
Shipping Weight
2.35 lb.
Maximum Pressure
250 psi
Valve Design
Balanced
General
Adjustment Location
Top
Max. Flow - Regulators
60 cfm
Adjustment Mechanism
Knob
Max. Inlet Pressure - Regulators
250 psi
Adjustment Mechanism Material
Steel
Maximum Regulated Pressure
125 psi
Adjustment Range
0 to 125 psi
Minimum Operating Pressure
18 psig
Adjustment Range - Regulators
0 to 125 psi
Minimum Regulated Pressure
2 psi
Air Inlet Gender
Female
Modular Connection
Modular Connection
Air Inlet Type
NPT
Overall Height - Regulators
6.08 in
Air Outlet Gender
Female
Overall Width - Regulators
2.84 in
Air Outlet Size
3/8 in
Pipe Size - Regulators
3/8 in
Air Outlet Type
NPT
Pressure Gauge Included
Yes
Compressed Air Regulator Product Grouping
General Purpose Air Regulator
Pressure Gauge Port Size
1/4 in
For Fluid Type
Air
Pressure Gauge Port Type
NPT
For Substance Type
Air
Regulator Body Material
Aluminum or Zinc
Gauge Port
1/4 in NPT
Regulator Type
Relieving
Includes
(2) Gauge Plugs and Face Gauge, Regulator
System Location
Air Line

Product Description

Suitable for use where regulators are not easily accessible. Can be controlled remotely via a small pilot regulator. Ideal for use in applications requiring a constant pressure with variable flow rate. Note: Do not connect regulator to bottled gas.
