SPEEDAIRE

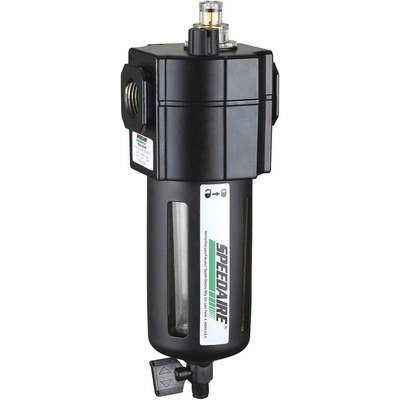

1/2" NPT Modular Air Line Lubricator, 154 cfm Max. Flow, 150 psi Max. Pressure

Hover over image to magnify
Air Line Lubricator,1/2In,
Air Line Lubricator,1/2In,

#920125-5 | Pkg Qty: 1

$96.24 pkg | $96.24 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Adjustment Type
Screwdriver
Maximum Temperature
125 deg. F
Air Consumption
scfm
Maximum Temperature (Deg. F)
125
Body Material
Aluminum
Mfr. Part Number
4ZL93
Bowl Material
Polycarbonate with Steel Guard
NPT
1/2 in.
Brand
SPEEDAIRE
Overall Width
3.15 in.
Dome
Red 360 Sight/feed, Where 10 to 15% of the Oil Drops Visible are Delivered
Package Quantity
1
Drain Included
Yes
Pipe Size
1/2 in. NPT
Item
Modular Air Line Lubricator
Series
Standard
Maximum Flow
154 cfm
Shipping Weight
1.8 lb.
Maximum Flow (CFM)
154 CFM
Width
3.15 in.
Maximum Pressure
150 psi
General
Adjustment Mechanism
Screwdriver
Lubricator Bowl Capacity
7 oz
Air Flow Direction
Left to Right
Lubricator Bowl Guard Material
Iron
Air Inlet Gender
Female
Lubricator Bowl Material
Polycarbonate with Steel Guard
Air Inlet Type
NPT
Lubricator Type
Micro Mist
Air Outlet Gender
Female
Max. Pipe Run
50 ft
Air Outlet Size
1/2 in
Modular Connection
No Modular Connection
Air Outlet Type
NPT
Oil Feed Type
Micromist
Dome Material
Transparent Nylon
Recommended Lubricant
ISO VG 32
Drain Part Compatibility
1AKJ1A
Sensor
Integral Flow, Provides Proportional Control
For Fluid Type
Compressed Air
Sight Dome Included
Yes
For Maximum Pipe Run
50 ft
Sight Gauge Included
Yes
For Substance Type
Air
System Location
Main Line
Includes
(1) Oil Drop Controller

Product Description

Lubricator maintains a constant oil-to-air density over a wide range of flow. Provides lubrication for multiple pneumatic tools/devices. An integral flow sensor provides proportional control. Comes equipped with a red 360° sight/feed dome. For the Max. Flow, the CFM is based on 90 psig inlet and 5 psig pressure drop.

  • Modular connector allows easy removal and swap out
  • Up to 50-ft. pipe runs Note: Polycarbonate bowls are not recommended for use in atmospheres containing chemicals such as acetone, benzene, carbon tetrachloride, ethylene dichloride, gasoline, toluene, and or air compressor systems using synthetic fire-resistant lubricants.
