HUBBELL WIRING DEVICE-KELLEMS

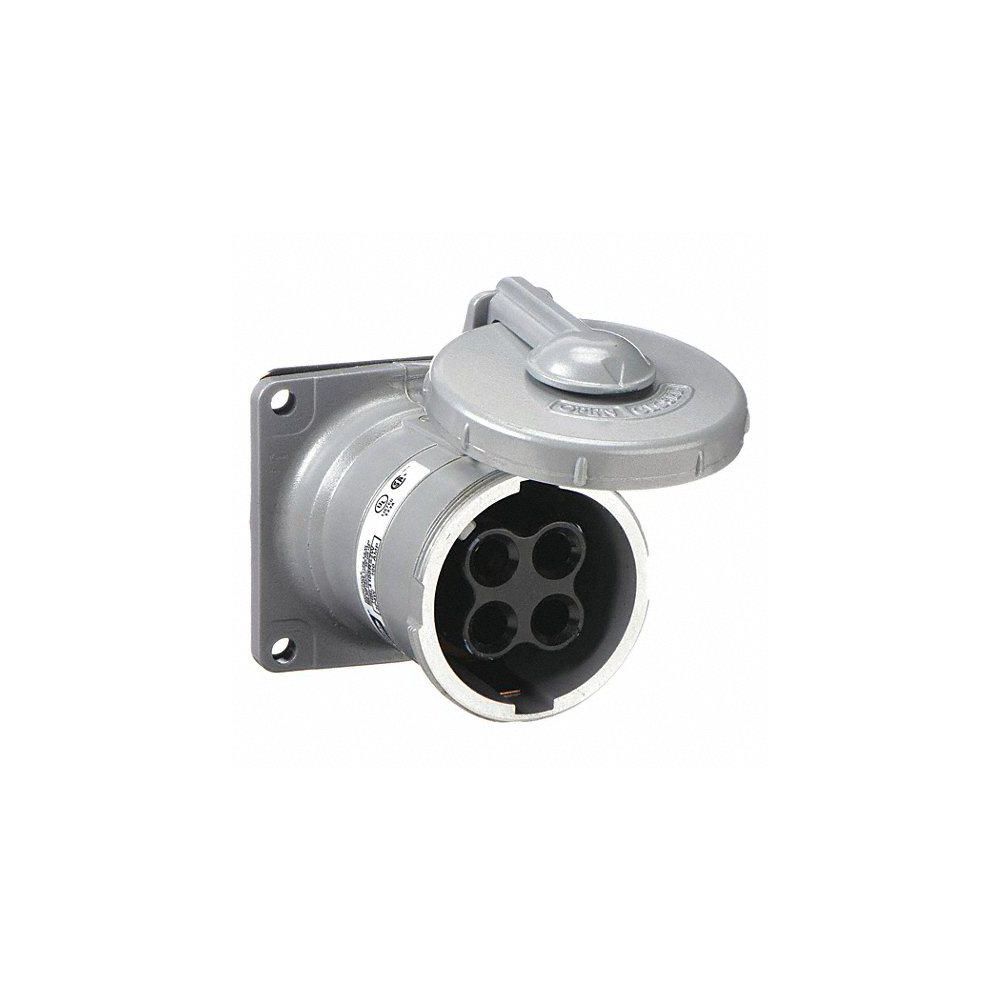

Hubbell Wiring Device-Kellems 100 Amp, 3-Phase Valox 357 Housing and Aluminum Shroud Watertight Pin and Sleeve Receptacle, Gray

Hover over image to magnify
Receptacle,3 P,4 W
PI_Asset_1507963
Receptacle,3 P,4 W
PI_Asset_1507963
Double tap image to magnify
Receptacle,3 P,4 W
9124698_2
Receptacle,3 P,4 W
9124698_2

#912469-8Pkg Qty: 1

$813.12 pkg | $813.12 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Amperage
100 A
Minimum Operating Temperature
-40 °C
Amps
100 A
Minimum Wire Size
12 AWG
Body Material
Zytel 101 Nylon
NEMA Rating
4X
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Gangs
1
Cap Type
Spring-Loaded Cap
Number of Poles
3
Color Family
Gray
Number of Wires
4
Connection Orientation
Straight
Package Quantity
1
Current Rating
100 A
Phase
Three
Face Diameter
4.7 in.
Pin & Sleeve Standards
UL 1682
Features
Abuse Resistant
Shipping Weight
3.4 lb.
Grounding
Grounded
Shrouded
Yes
Grounding Style
Style 2
Standards
CSA Certified C22.2 No. 182.1, CSA Certified Type 4X, UL 1682, UL Listed
Housing Color
Silver
Switch Rated
No
Housing Material
Thermoplastic
Type
Insulgrip Pin and Sleeve, Interchangeable, Female Receptacle
Item
Watertight Pin and Sleeve Receptacle
UL 94 Flammability Rating
V-0
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
Voltage
600VAC/250VDC
Maximum Operating Temperature
75 °C
Voltage Rating
600V AC/250V DC
Maximum Wire Size
8 AWG
Wire Connection Type
Screw Terminals
Mfr. Part Number
HBL4100RS2W
General
Flange Type
Flanged
Mounting Box Hub Type
Receptacle Only

Product Description

Insulgrip® pin and sleeve plugs and connectors have a metallic shroud to provide ground and protect pins, and a watertight, nonmetallic housing for corrosion resistance and electrical safety. Style II devices have a dual-ground safety feature using dedicated ground pin. Interchangeable with traditional all-metallic pin and sleeve devices built to UL 1686-C1.
