HUBBELL WIRING DEVICE-KELLEMS

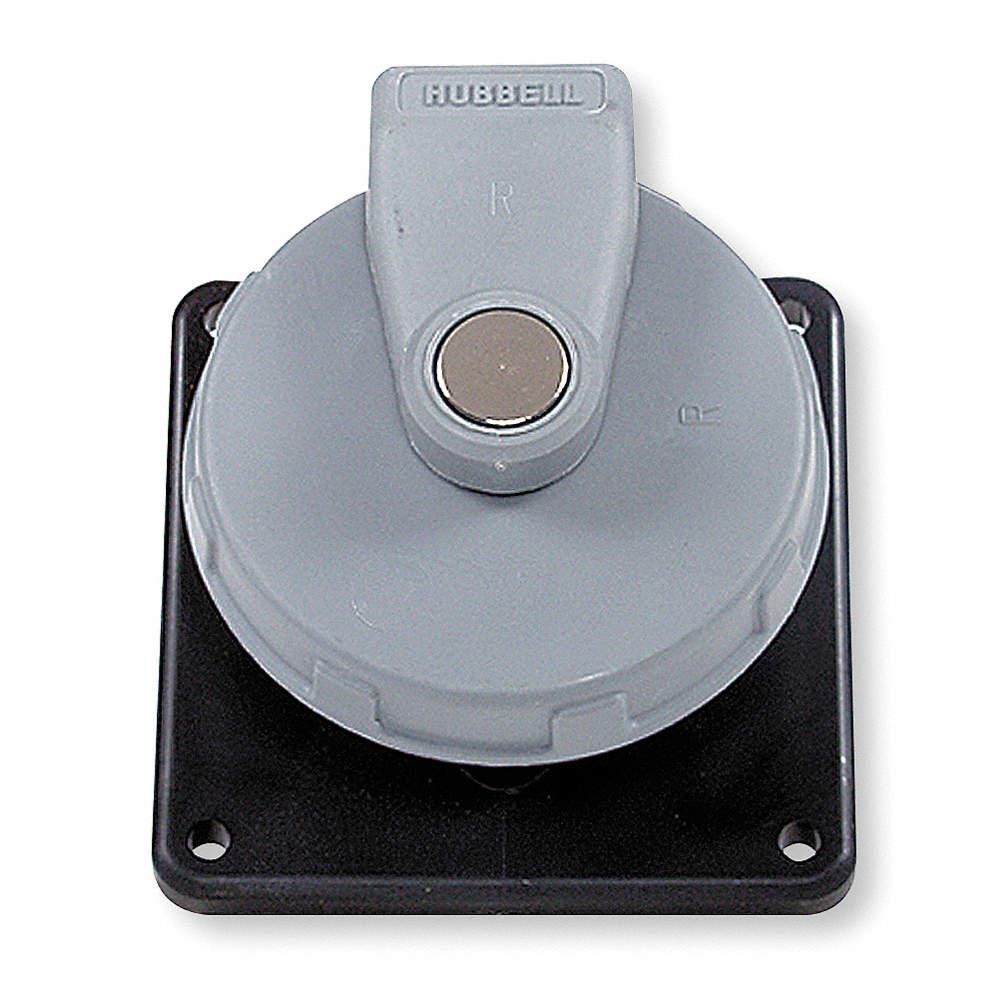

Hubbell Wiring Device-Kellems 30 Amp, 3-Phase Zytel 101 Nylon Watertight Pin and Sleeve Receptacle, Black

Hover over image to magnify
Iec Pin And Sleeve Receptacle,
PI_Asset_1983444
PI_Asset_1987701
Iec Pin And Sleeve Receptacle,
PI_Asset_1983444
PI_Asset_1987701
Double tap image to magnify
Iec Pin And Sleeve Receptacle,
3D131_2
3D152_1
Iec Pin And Sleeve Receptacle,
3D131_2
3D152_1

#938328-3Pkg Qty: 1

$407.00 pkg | $407.00 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Apr 02.
|

Technical Specifications

Key Specifications
Amperage
30 A
Mfr. Part Number
HBL430R5W
Amps
30 A
Minimum Operating Temperature
-40 °C
Body Material
Zytel 101 Nylon
Minimum Wire Size
12 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Rating
4X
Cap Type
Spring-Loaded Cap
Number of Gangs
1
Color Family
Black
Number of Poles
3
Connection Orientation
Straight
Number of Wires
4
Current Rating
30 A
Package Quantity
1
Face Diameter
3.6 in.
Phase
Three
Features
Color Coded
Pin & Sleeve Standards
IEC 60309
Grounding
Grounded
Shipping Weight
1.38 lb.
Grounding Style
IEC
Shrouded
Yes
Horsepower
10 hp
Standards
CSA Certified C22.2 No. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1
Housing Color
Black
Switch Rated
No
Housing Material
Thermoplastic
Type
Female Receptacle
IP Rating
IP67
UL 94 Flammability Rating
HB
Item
Watertight Pin and Sleeve Receptacle
Voltage
600VAC
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
Voltage Rating
600V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
8 AWG
General
Flange Type
Flanged
Mounting Box Hub Type
Receptacle Only

Product Description

IEC Nonmetallic Watertight Pin and Sleeve Devices Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
