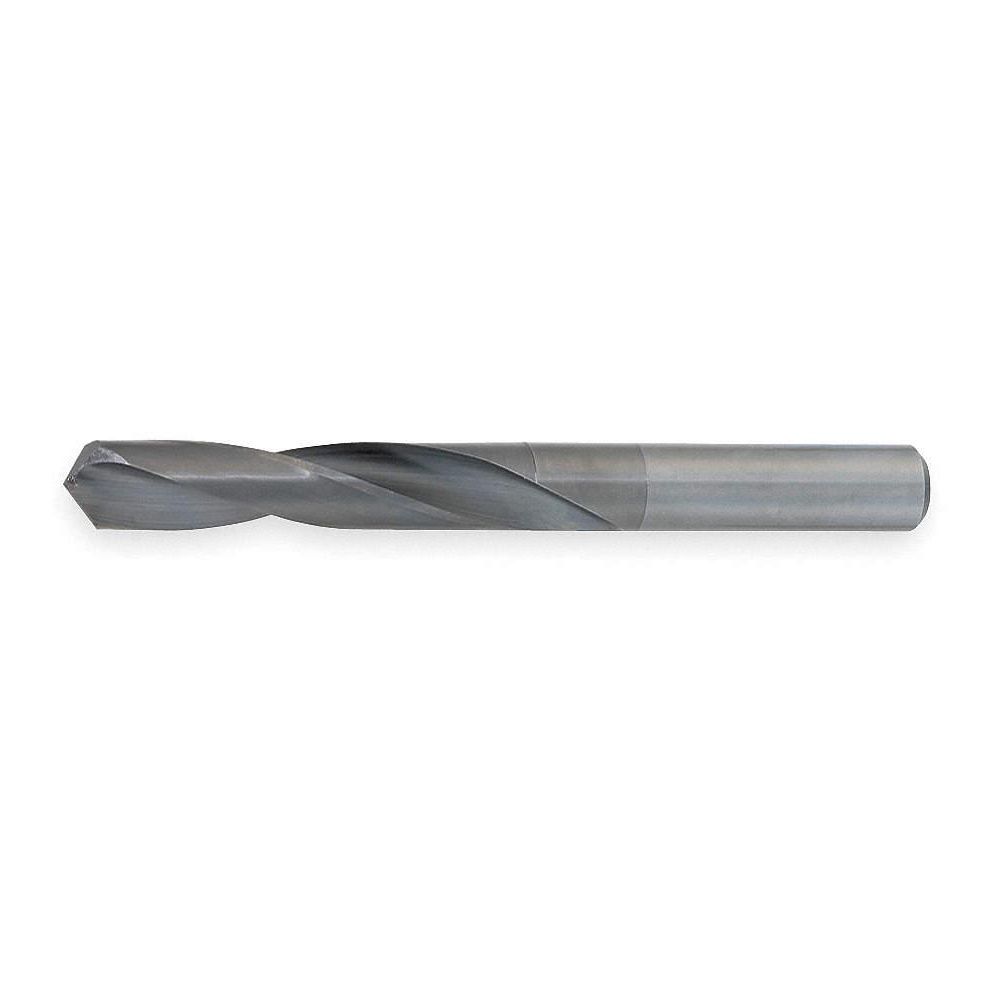

Stubby Length Drill Bit, Drill Bit Size #7, Drill Bit Point Angle 118 °, Carbide

Name: Stubby Length Drill Bit, Drill Bit Size #7, Drill Bit Point Angle 118 °, Carbide
Brand: OSG
SKU: 9124053
Price: 28.73 USD
Availability: InStock

Hover over image to magnify

Stubby Length Drill Bit, Drill Bit Size #7, Drill Bit Point Angle 118 °, Carbide Video

Double tap image to magnify

#912405-3Pkg Qty: 1

$28.73 pkg | $28.73 ea

In Stock

Shipping to 43085

Ships from supplier. Expected to arrive on or before Mon. Apr 14.

Technical Specifications

Key Specifications

Brand

OSG

Item

Screw Machine Drill Bit

Cutting Direction

Right

List Number

220D

Cutting Direction

Right Hand

Maximum Drilling Depth

44.50 mm

Decimal Equivalent

0.201

Mfr. Part Number

220-2010

Depth x Diameter Ratio

5xD

Number of Flutes

Dimension Type

Wire Size

Number of Pieces

Drill Bit Dimension Type

Wire

Overall Length

2-1/4 in.

Drill Bit Finish

Bright (Uncoated)

Pack Quantity

Drill Bit Material

Solid Carbide

Point Angle

118 deg.

Drill Bit Point Angle

118 deg.

Point Type

Four-Facet Point

Drill Bit Size

Series

220D

Finish

Bright

Shank Diameter

0.2010 in.

Flute Length

1-3/16 in.

Shank Length

31.7 mm

Flute Type

Spiral

Shipping Weight

0.04 lb.

Grade

General Purpose

Wire Size

General

Application

For Alloy And Carbon Steel, Aluminum And Cast Iron

Drill Length Class

Screw Machine Length

Coolant Fed

Non-Coolant Through

Material - Machining

Carbide

Drill Bit Grouping

Individual

Primary Material Application ISO Code

K, N, P

Drill Bit Point Type

4 Facet Point

Shank Type - Machining

Straight

Drill Diameter Tolerance

+0.000/-0.013 mm

Product Description

Wire-size drill bits come in standard sizes that correspond to American Wire Gauge (AWG) sizes. The larger the wire size, the smaller the bit. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece. The bright finish on these drill bits is not affected when the bits' cutting edges are resharpened.
