SQUARE D

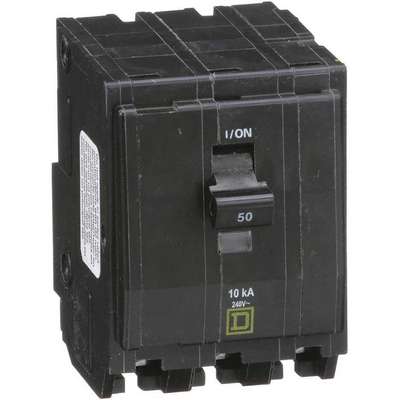

Square D Miniature Circuit Breaker, Amps 50 A, Circuit Breaker Type Standard, Number of Poles 3

Hover over image to magnify

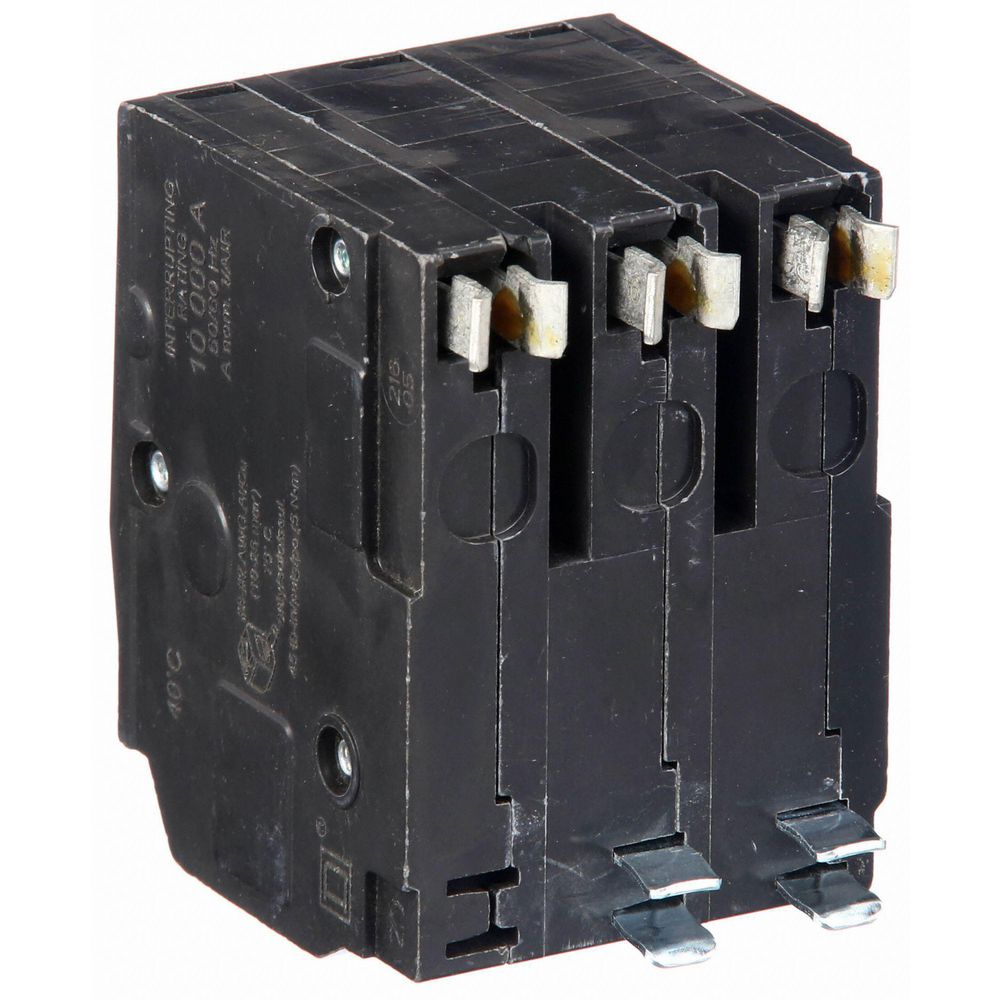

Circuit Breaker,50A,3P,10kA,
PI_Asset_1769618
Circuit Breaker,50A,3P,10kA,
PI_Asset_1769618
Double tap image to magnify
Circuit Breaker,50A,3P,10kA,
1D327_1
Circuit Breaker,50A,3P,10kA,
1D327_1

#917110-6Pkg Qty: 1

$251.00 pkg | $251.00 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 14.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.</p>

These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Air Rating
10kA at 120/240VAC
Air @ 120 VAC
10kA
Maximum DC Voltage
48
Air @ 240 VAC
10kA
Maximum Wire Size
2 AWG
Air @ 48 VDC
5kA
Mfr. Part Number
QO350
Amperage
50 A
Minimum Wire Size
8 AWG
Amps
50 A
Number of Poles
3
Brand
SQUARE D
Package Quantity
1
Circuit Breaker Type
Standard
Panelboard Mounting
Plug-In
DC Voltage Rating
48VDC
Phase
Three
Depth
2.91 in.
Phase Connection
All
For Use With
QO Load Centers and NQ Panelboards
Series
QO
Frame Size
100A/QO
Shipping Weight
.83 lb.
High Amp Trip Setting
67-1/2
Terminal Connection
Lug
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Miniature Circuit Breaker
Voltage
240VAC
Length
3.12 in.
Width
2-1/4 in.
General
Circuit Breaker Actuator
Paddle
Min. Operating Temp.
104°F
Circuit Breaker Mounting Style
Plug In
Standards
CSA Certified, HACR

Product Description

These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
