HUBBELL WIRING DEVICE-KELLEMS

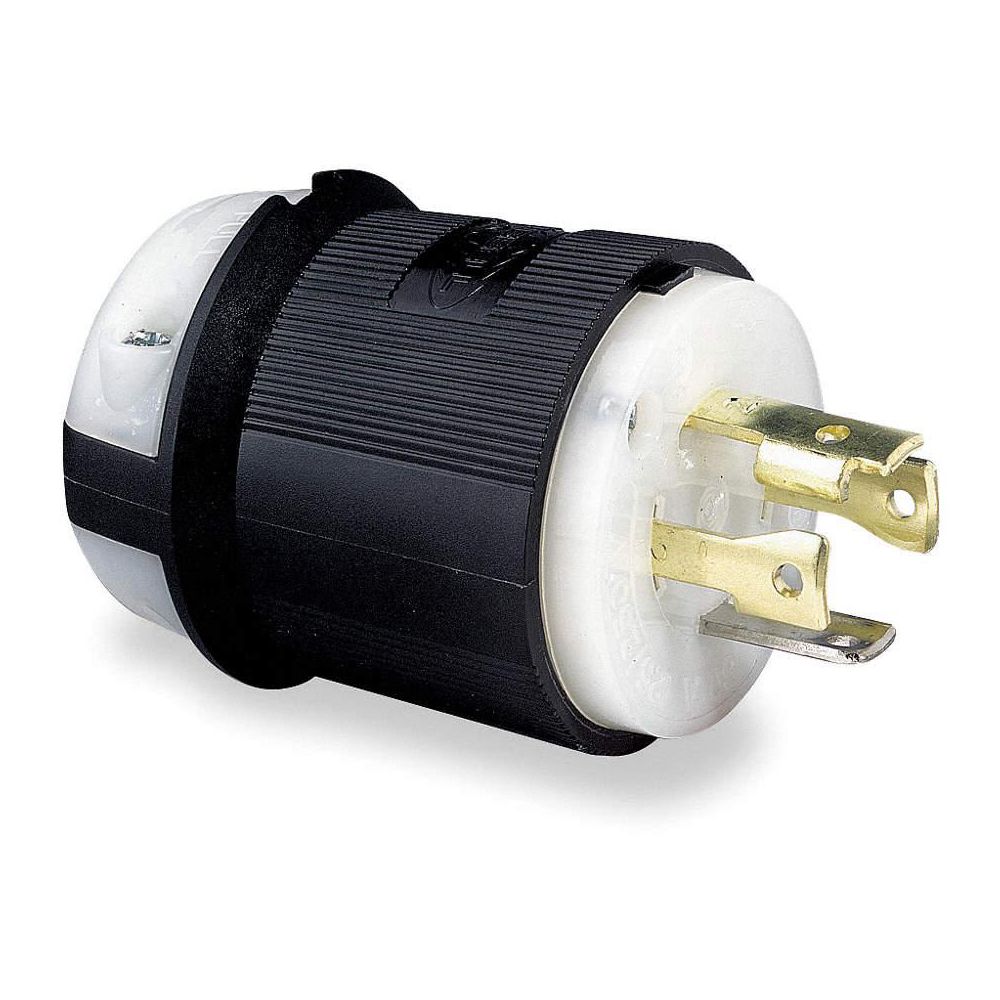

Hubbell Wiring Device-Kellems 30A Industrial Grade Non-Shrouded Locking Plug, Black/White; NEMA Configuration: L14-30P
Hover over image to magnify
#912213-5 | Pkg Qty: 1
$80.60 pkg | $80.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Maximum Operating Temperature
75 °C
Antimicrobial
No
Maximum Wire Size
8 AWG
Blade Material
Brass
Mfr. Part Number
HBL2711
Body Length
2.33 in.
Minimum Operating Temperature
-40 °C
Boot Code
C
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L14-30
Color Family
Black / White
NEMA Plug Configuration
L14-30P
Connection Orientation
Straight
Number of Blades
4
Cord Size
0.350 in. to 1.150 in.
Number of Poles
3
Corrosion Resistant
No
Number of Wires
4
Current Rating
30 A
Outside Diameter
2.33 in.
Description
Insulgrip, Grounding
Overall Length
2.33 in.
Face Diameter
2.21 in.
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Polarized
Yes
Grade
Industrial
Shipping Weight
.3 lb.
Grounding
Grounded
Shrouded
No
HP
2 HP
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
2 hp
Sub-Category
Plugs
Housing Material
Nylon
UL 94 Flammability Rating
HB
IP Rating
IP20
Voltage
125/250V AC
Item
Locking Plug
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L14-30P
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125/250V AC
HP
2.0
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Plug,Locking,30 A,L14-30
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6A656 | Plug,Locking, 30 A,L14-30 |
 | UNSPSC CODES | 39121403 | |
 | VMRS (ATA) CODES | 053-007-002 | Plug,Locking, 30 A,L14-30 |
