HUBBELL WIRING DEVICE-KELLEMS

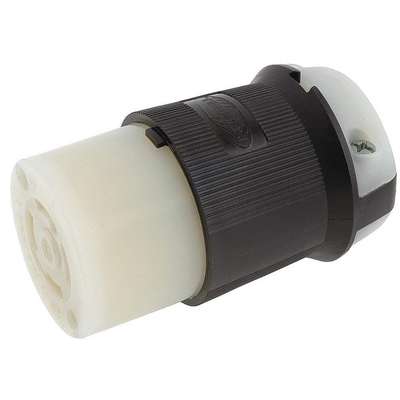

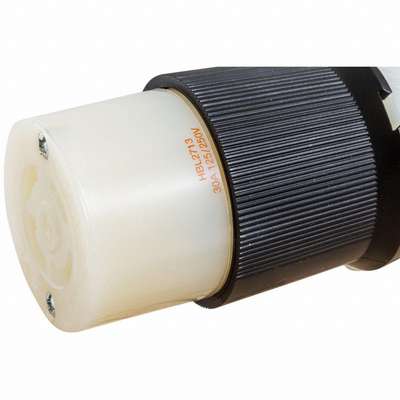

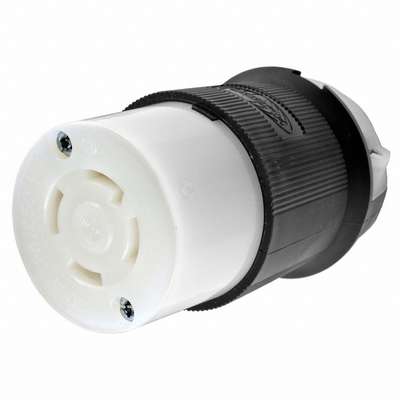

Hubbell Wiring Device-Kellems 30 Amp Industrial Grade Locking Connector, L14-30R NEMA Configuration, Black/White
Hover over image to magnify
#911733-3 | Pkg Qty: 1
$162.53 pkg | $162.53 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Accessory Group
C
Maximum Wire Size
8 AWG
Amperage
30 A
Mfr. Part Number
HBL2713
Amps
30 A
Midget Locking
No
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Boot Code
C
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L14-30
Cap Type
No Cap or Cover
NEMA Plug Configuration
L14-30R
Color Family
Black / White
NEMA Receptacle Configuration
L14-30R
Connection Orientation
Straight
Number of Poles
3
Contact Material
Brass
Number of Wires
4
Cord Size
0.350 in to 1.150 in
Outside Diameter
2.33 in.
Corrosion Resistant
No
Overall Length
2.33 in.
Current Rating
30 A
Package Quantity
1
Description
Insulgrip, Grounding
Phase
Single
For Environment
Dry
Power Indicating Light
No
For Location
Indoor
Power Indicator
No
Grade
Industrial/Commercial
Shipping Weight
.4 lb.
Grounding
Grounded
Shrouded
No
HP
2 HP
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
2 hp
Sub-Category
Connectors
Housing Material
Nylon
Type
Insulgrip Twist Lock
IP Rating
IP20
UL 94 Flammability Rating
HB
Item
Locking Connector
Voltage
125/250VAC
Material
Nylon
Voltage Rating
125/250V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L14-30R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125/250V AC
HP
2.0
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Connector Body,30 A,L14-30
