LOCTITE

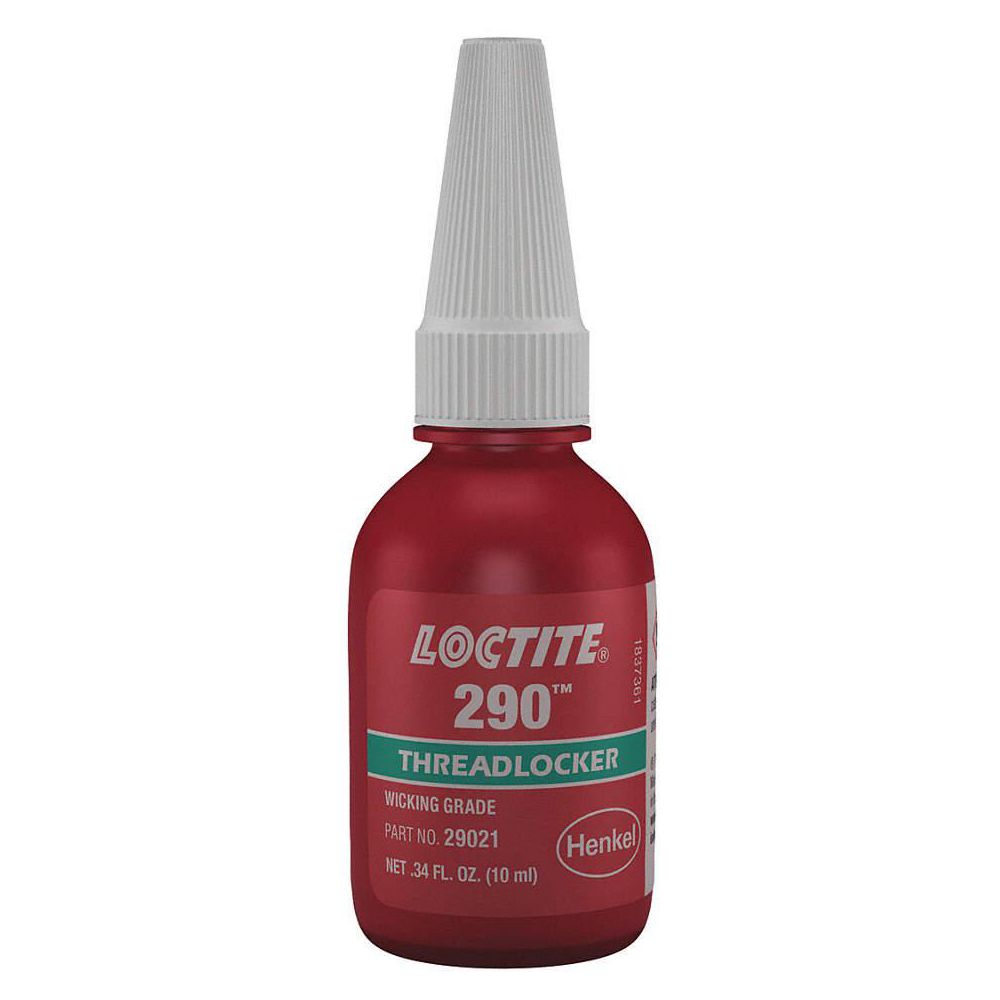

Loctite Wicking Grade Threadlocker: Series 290, Wicking Grade Threadlocker, Green, Liquid, 10 mL, Bottle
Hover over image to magnify
#911400-4 | Pkg Qty: 1
$24.76 pkg | $24.76 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Appearance
Green
Package Quantity
1
Begins to Harden
20 min.
Performance Temperature Range
-60 deg. F to 300 deg. F
Brand
LOCTITE
Physical Form
Liquid
Chemical Type
Anaerobic
Removable With
Hand Tools
Color Family
Green
Series
290
Container Type
Threadlocker/ Sealant Bottle
Shipping Weight
.05 lb.
Fills
Gaps Between Threads
Size
10 mL
Fixture Time
20 min.
Specific Gravity
1.07
Flash Point
Greater than 93.3 deg. C
Temperature Range
-65 to 300 deg. F
For Fastener Diameter
Up to 1/2 in.
Threadlocker Classification
Wicking Grade Threadlocker
Full Cure
24 hr.
Threadlocker Disassembly
Removable
Gap Fill
0.003 in.
Threadlocker Strength
Medium Strength
Item
Wicking Grade Threadlocker
Type
Medium Strength Threadlocker
Mfr. Part Number
233731
Viscosity
25 to 55 cP
Net Weight
10 mL
General
Application
For Locking Preassembled Fasteners No. 2 to 1/2 in. Penetrates By Capillary Action
Pack Size
1 EA
Breakaway Torque
90 in-lb
Prevailing Torque
350 in-lb
Breakaway Torque Range
51 in-lb to 100 in-lb
Product Form
Liquid
Clean Up Method
Solvent, Wire Brush
Recommended Surface Preparation
Dry Surface
Compatible Materials
Bronze, Copper, Iron, Manganese, Nickel, Steel
Removal Method
Hand Tool
Compatible Primer ( Part Number)
4KL11
Standards
MIL-S-46163A Type III Grade R, NSF P1/ANSI 61 Certified, OSHA Hazard Communication, OSHA Hazard Communication, RoHS Certified
Compatible Primer Series
Loctite 7649
Storage Requirements
8 Degrees to 21 Degrees C
Container Size Range
0.39 oz and Under
Threadlocker Properties
Wicking
Container Size and Type
0.34 fl oz Bottle
Torque and Strength
90 in-lb Medium
Container and Size
Bottle 0.39 oz and Under
VOC Content Range
11 g/L to 50 g/L
Cure Type
Anaerobic
VOC Content Weight Percentage
0.0002
For Material Type
Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Steel
Wicking Grade
Yes
For Maximum Thread Diameter
1/2 in
Working Time
20 min
Minimum Viscosity
20 cps
Working Time Range
More Than 10 min
Product Description
Loctite® threadlockers fills gaps between threads and securely mates surfaces to form solid, unitized assemblies. Also prevent fasteners from loosening due to vibration and protect against rust and corrosion. Fasteners can be removed with hand tools.
Expertly Selected Product Pairings
Compliance & Restrictions
SDS Available View
Item Barcode
Threadlocker,Green,10ML Btl
