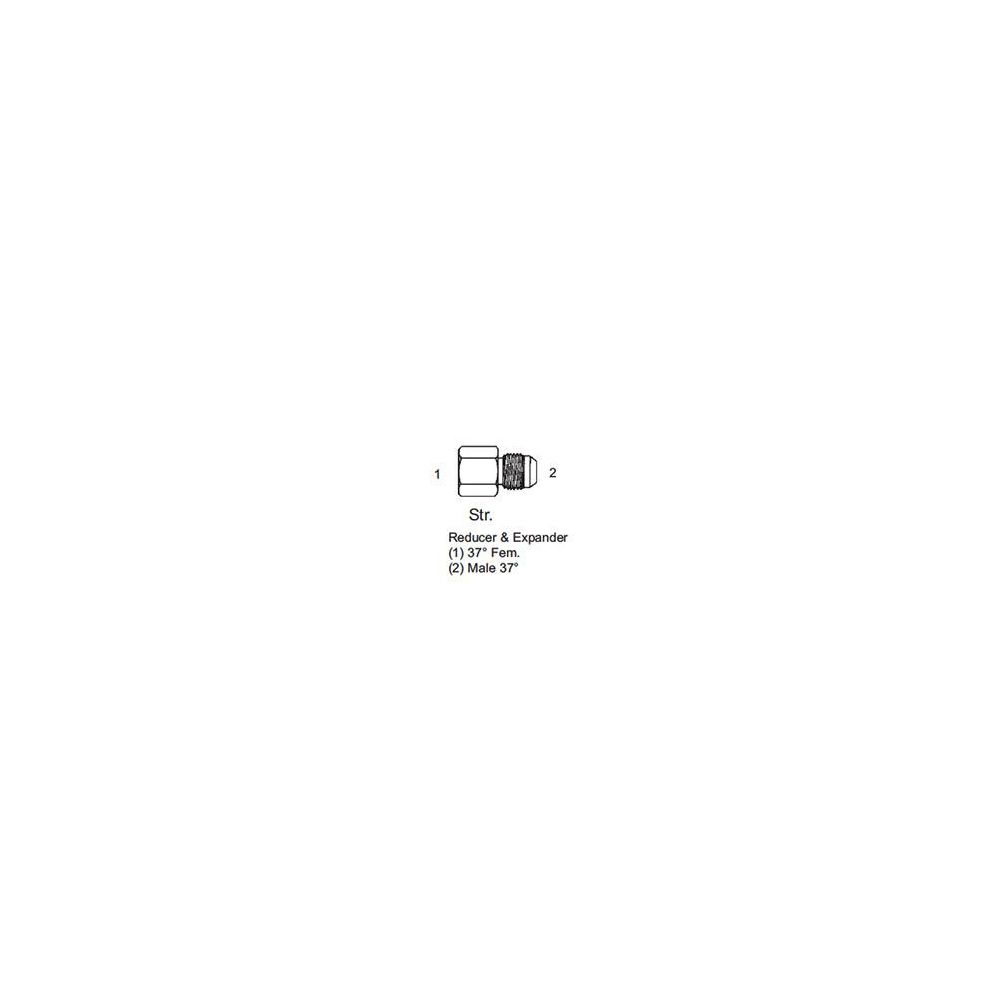

Female JIC to Male JIC Reducer 1 in. x 3/8 in.

Hover over image to magnify
Steel Jic Reducer 1F X 1M
Steel Jic Reducer 1F X 1M
Double tap image to magnify
Steel Jic Reducer 1F X 1M
Steel Jic Reducer 1F X 1M

#97659Pkg Qty: 5

In Stock

Shipping to 43085
|

Technical Specifications

Brand
APPROVED SUPPLIER
Fitting Thread Style
SAE
Eaton/Aeroquip Cross
FF1066-1606S
Item
Flare Fitting
Fitting Connection (A) Gender
Female
Material
Carbon Steel
Fitting Connection (A) Style
JIC
Mfr. Part Number
97659
Fitting Connection (A) Tube Size
1 in.
Operating Pressure
4000
Fitting Connection (A) Tube Thread Size
1-5/16-12
Package Quantity
5
Fitting Connection (B) Gender
Male
Pressure Connection Cross
2406-16-06
Fitting Connection (B) Style
JIC
Shape
Straight
Fitting Connection (B) Tube Size
3/8 in.
Shipping Weight
1.53 lb.
Fitting Connection (B) Tube Thread Size
9/16-18
System of Measurement
Fractional
Fitting Finish
Zinc; Clear Trivalent Chromate
Tube Flare
37 deg.
Fitting Material
Carbon Steel
Vibration Resistance
Good
Fitting Shape
Straight
Weatherhead Cross
C5015X16X6
Fitting Style
JIC Reducer
Working Pressure
3000

Product Description

  • Typical Applications: High pressure hydraulic used on construction, agricultural, and transportation equipment.
  • Can be used with with steel, copper, and aluminum flared tubing.
  • JIC fittings are also known as 37° flared fittings.
  • Good vibration resistance when used with two and three piece nuts.
