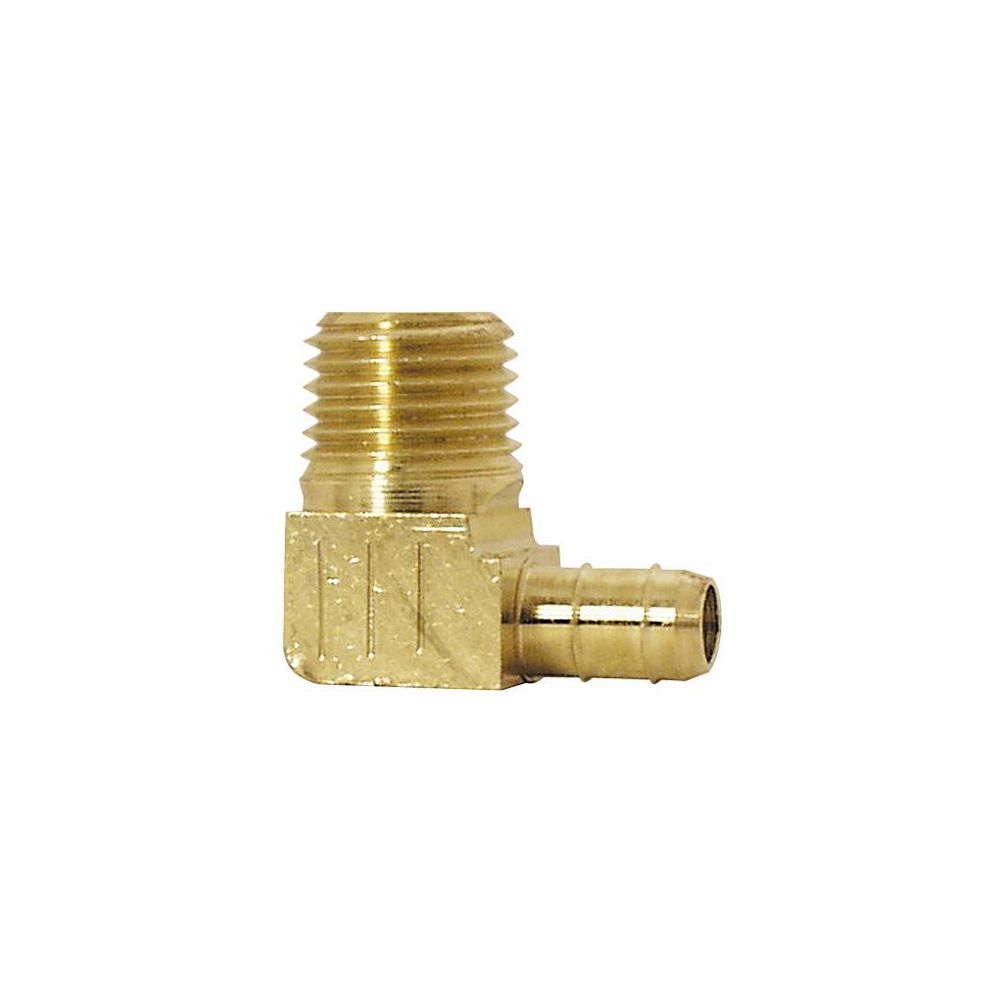

Brass 90° Mini Barbed Male Connector 3/8 in. x 1/8 in.
Hover over image to magnify
Technical Specifications
Angle
90 deg.
Item
Elbow
Brand
APPROVED SUPPLIER
Material
Brass
Connection Type
Male
Mfr. Part Number
90977
Fitting Connection (A) Gender
Male
Package Quantity
10
Fitting Connection (A) Style
Single Barb
Pipe Thread
1/8 in.
Fitting Connection (A) Tube Size
3/8 in.
Plating
None
Fitting Connection (B) Gender
Male
Shape
Elbow
Fitting Connection (B) Pipe Size
1/8 in.
Shipping Weight
.3 lb.
Fitting Connection (B) Pipe Thread Size
1/8-27 in.
System of Measurement
Fractional
Fitting Connection (B) Style
NPTF Pipe
Tube Outside Diameter
3/8 in.
Fitting Material
Brass
Tube Shaft Outside Diameter
.27
Fitting Style
Straight
Vibration Resistance
Excellent
Fitting Type
Mini Barbed Fitting
Working Pressure
Will withstand burst pressures of plastic tubing.
Grade
CA360
Product Description
- Typical Applications: Instrumentation, low pressure pneumatic, and vacuum lines.
- It is recommended to always use thread sealant or tape on tapered pipe threads.
- Used with low pressure tubing.
- Pipe threads are the most common fitting style used in the United States.
- Low pressure single barb.
- Imperial pipe fittings are made to NPTF (National Pipe Thread Fuel) specifications.
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Lot Tracked Item Details
Item Barcode
Minibarb Elb 3/8X1/8
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 1069X6X2 | MIN BARB FIT 1069X6X2 |
 | Grainger Dropship | 2GUJ2 | MIN BARB FIT 1069X6X2 |
 | UNSPSC CODES | 40173301 | MIN BARB FIT 1069X6X2 |
 | VMRS (ATA) CODES | 053-008-004 | MIN BARB FIT 1069X6X2 |
