GROTE

Grote DOT Coiled Air Brake Assembly Blue 15 ft. with 40 in. Leads, 1/2 in. Tubing.

Hover over image to magnify

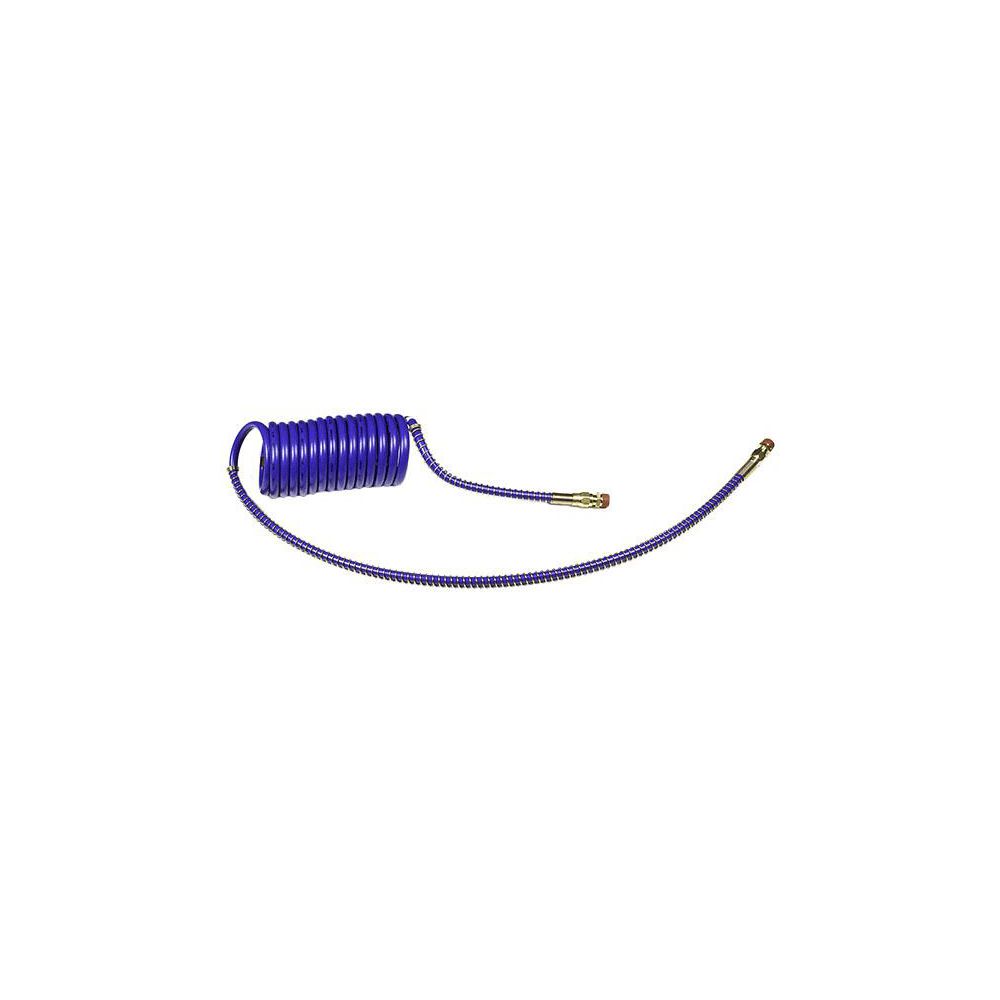

Coil A/B 15' W/40" Lead Blue
PI_Asset_1129118
Coil A/B 15' W/40" Lead Blue
PI_Asset_1129118
Double tap image to magnify
Coil A/B 15' W/40" Lead Blue
0908552_2
Coil A/B 15' W/40" Lead Blue
0908552_2

#90855-2Pkg Qty: 1

$32.96 pkg | $32.96 ea
Color Family : Blue
Blue
Blue / Red
Red

In Stock

Shipping to 43085
|
Catalog: G20

Technical Specifications

Air Brake Assembly Style
Coiled
Hose Color
Blue
Assembly Set
Yes
Item
Air Brake Assembly
Bend Radius
2 in.
Lead Length
40 in.
Brand
GROTE
Material
Nylon
Burst Pressure
950 psi
Maximum Working Pressure
150 psi
Coil Length
15 ft.
Mfr. Part Number
81-0015-40B
Color Family
Blue
Operating Temperature
-40°C (-40°F) to +104°C (+220°F)
Conditions
Standard
Package Quantity
1
Fitting Connection (A) Gender
Male
Pipe Thread
1/2 in.
Fitting Connection (A) Pipe Size
1/2 in.
Shipping Weight
1.86 lb.
Fitting Connection (A) Style
NPTF
System of Measurement
Fractional
Fitting Connection (A) Thread Size
1/2-14
Temperature Range (Deg. F)
-40 to +220 deg. F
Fitting Connection (A) Tractor Lead Length
40 in.
Tramec Sloan Cross
451039NB
Fitting Connection (B) Gender
Male
Tube Outside Diameter
1/2 in.
Fitting Connection (B) Pipe Size
1/2 in.
Tubing Dash Size
8
Fitting Connection (B) Style
NPTF
Tubing Material
Nylon
Fitting Connection (B) Thread Size
1/2-14
Tubing Outside Diameter
1/2 in.
Fitting Finish
Plain
Working Length
15 ft.
Fitting Material
Brass

Product Description

Typical Applications: • Air brakes, tractors, trailers, yard horses, and slider boxes. • Exceeds DOT, FMVSS 106, and SAE J1402A standards pressure requirements for air brake systems.
• Spring reinforced ends eliminates need for spring hangers and pogo sticks.
• Color identifying tubing reduces hook up mistakes, red tube used for emergency and blue tube used for service brakes.
• Crosses References: Grote 810015-40B, Grainger 32WF92, Tramec 451039NB, CMI 33039B, Phillips 11-339, Tectran 16215-40B, Velvac 022008
