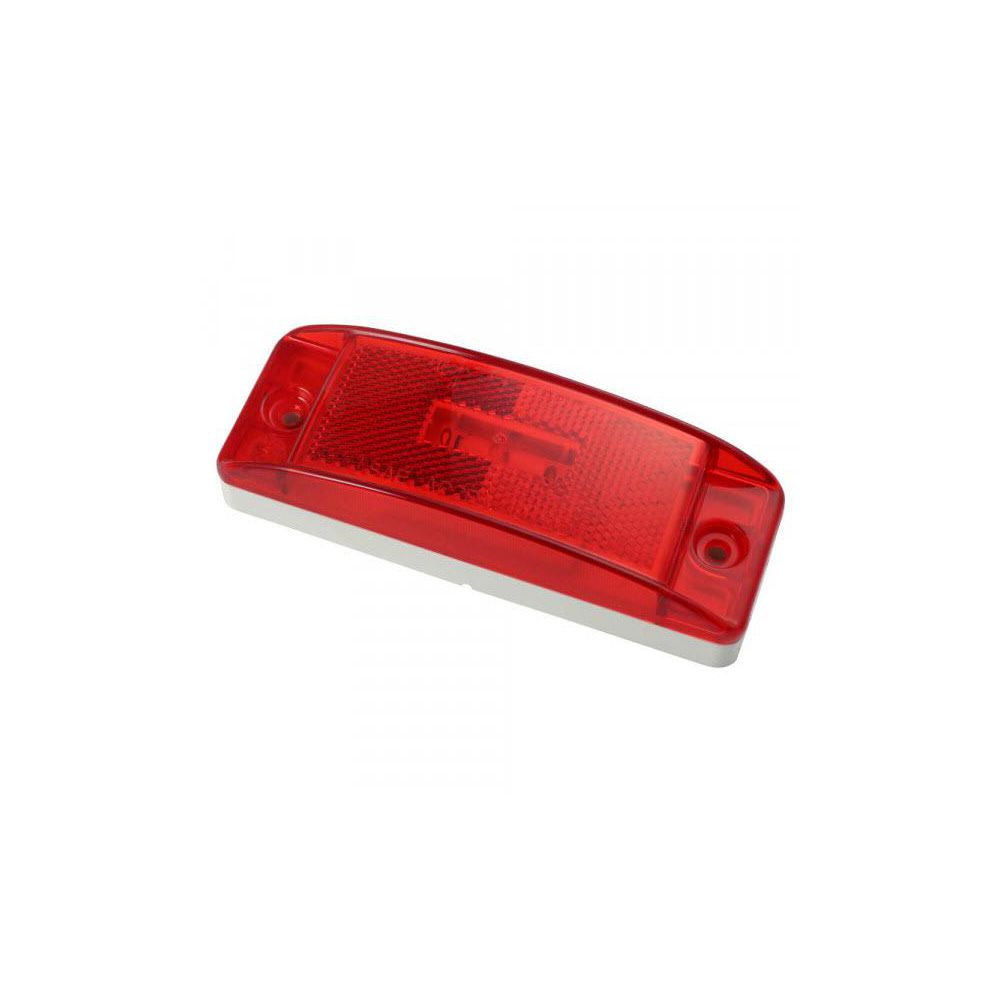

Grote Turtleback Clearance Marker Lamp, LED, Red Rectangular, 12 V, Sealed, 47072

Hover over image to magnify
Trtl-Bk Clr/Mkr-Red LED G47072
PI_Asset_1128965
PI_Asset_1128966
Trtl-Bk Clr/Mkr-Red LED G47072
PI_Asset_1128965
PI_Asset_1128966
Grote Turtleback Clearance Marker Lamp, LED, Red Rectangular, 12 V, Sealed, 47072 Video
Double tap image to magnify
Trtl-Bk Clr/Mkr-Red LED G47072
0843250_2
0843250_3
Trtl-Bk Clr/Mkr-Red LED G47072
0843250_2
0843250_3
u1USRf6SCi4

#84325Pkg Qty: 1

Color Family : Red
Amber
Red

In Stock

Shipping to 43085
|
Catalog: D63

Technical Specifications

Amperage
0.06 A
Lens Material
Acrylic
Brand
GROTE
Light Technology
LED
Clearance/Marker Lamp Shape
Rectangle
Mfr. Part Number
47072-3
Color Family
Red
Mounting Type
Bracket
Connection Type
Male Pin
Package Quantity
1
Depth
1-1/2 in.
Series
SuperNova® Turtleback® II
Function
P2, PC, A
Shipping Weight
0.04 lb.
Height
2 in.
Standards
FMVSS 108
Housing Color
White
Trade Name
TURTLEBACK
Housing Material
Polycarbonate
Voltage Range
12 V
Item
Clearance Marker Light
Width
5-3/4 in.
Lens Color
Red

Product Description

Grote® Turtleback II, Clearance/Marker LED Lamp
  • Bullet Proof Potted For Total Circuit Board Protection.
  • Hermetic Seal With Tuttleback Design For Maximum Lens Durability.
  • Uses Same Double Seal Pigtail As Incandescent Lamp.
  • Designed At 12.8V And 0.12 Amp.
  • Red LED Light.

Documents

Information Sheet

Item Barcode

0843250
Trtl-Bk Clr/Mkr-Red LED G47072
