Grote DOT Coiled Air Brake Assembly Red 12 ft. with 6 in. Leads, 1/2 in. Tubing.

Hover over image to magnify

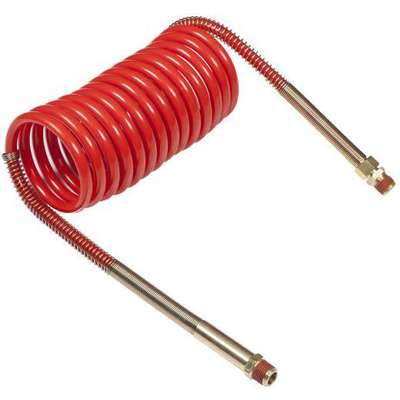

12' Air Coil Red/Brass Handle
12' Air Coil Red/Brass Handle
Double tap image to magnify
12' Air Coil Red/Brass Handle
12' Air Coil Red/Brass Handle

#78916Pkg Qty: 1

$37.51 pkg | $37.51 ea
Color Family : Red
Blue
Blue / Red
Red

Not currently available. Call your service advisor for availability.

Shipping to 43085
|

Technical Specifications

Air Brake Assembly Style
Coiled
Fitting Material
Brass
Assembly Set
Yes
Hose Color
Red
Bend Radius
2 in.
Item
Air Brake Assembly
Brand
GROTE
Lead Length
6 in.
Burst Pressure
950 psi
Material
Nylon
Coil Length
12 ft.
Maximum Working Pressure
150 psi
Color Family
Red
Mfr. Part Number
81-0012-HR
Conditions
Standard
Operating Temperature
-40°C (-40°F) to +104°C (+220°F)
Fitting Connection (A) Gender
Male
Package Quantity
1
Fitting Connection (A) Pipe Size
1/2 in.
Pipe Thread
1/2 in.
Fitting Connection (A) Style
NPTF
Shipping Weight
1.82 lb.
Fitting Connection (A) Thread Size
1/2-14
System of Measurement
Fractional
Fitting Connection (A) Tractor Lead Length
6 in.
Tramec Sloan Cross
451035NR
Fitting Connection (B) Gender
Male
Tube Outside Diameter
1/2 in.
Fitting Connection (B) Pipe Size
1/2 in.
Tubing Dash Size
8
Fitting Connection (B) Style
NPTF
Tubing Material
Nylon
Fitting Connection (B) Thread Size
1/2-14
Tubing Outside Diameter
1/2 in.
Fitting Finish
Plain
Working Length
12 ft.

Product Description

Typical Applications: • Air brakes, tractors, trailers, yard horses, and slider boxes. • Exceeds DOT, FMVSS 106, and SAE J1402A standards pressure requirements for air brake systems.
• Coiled tubing eliminates the need for spring hangers and pogo sticks.
• Color identifying tubing reduces hook up mistakes, red tube used for emergency and blue tube used for service brakes.
• Crosses References: Grote 810012-HR, Tramec 451035NR, 33035R, Velvac 022004
