Technical Specifications
Brand
APPROVED SUPPLIER
Shipping Weight
0.16 lb.
Color Family
Red
Shrink Tubing Adhesive Lined
Yes
Heat Shrink Tubing Shrink Ratio
3:1 Shrink Ratio
Shrink Tubing Material
Polyolefin
Heat Shrink Tubing Style
Dual Wall HST
Shrink Tubing Type
Heat Shrink Tubing
Inside Diameter Expanded Pre-Shrink
1/8 in.
Temperature Range
-55 deg. C to 110 deg. C
Item
Heat Shrink Tubing
Tube Material
Polyolefin
Length
6 in.
Use Shrink Tubing With Wire Size
30 to 18 AWG
Mfr. Part Number
HST203R-6
Wall Type
Flex Dual Wall
Package Quantity
8
Wire Gauge
24 to 18 AWG
Recovered Wall Thickness
0.04 in.

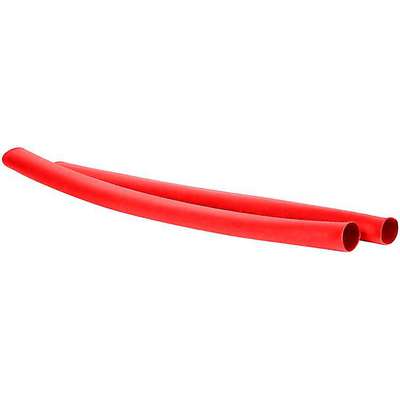

Product Description
Flexible Mw Heat Shrink Tubing
- Flame-Retardant Tubing With An Internal Layer Of Thermo-Plastic Adhesive Which Provides A Barrier Against Contaminants.
- Highly Flexible For Conformin To Irregular Shapes.
- Adhesive Lining Provides A Seal Against Corosion.
- Material: Polyolefin
- Recover Temp: 121°C (250°F)
- Dielectric Strength: 700 Volts/Mil
- Continuous Opertaing Temp: -55°C To 110°C (-67°F To 230°F)
- Mil Spec Mil-Dtl-23053/4, Class 3
- Ul E157227
- Flammability: Self Extinguishing Ul224
- Shrink Ratio: 3:1
- Length: 6"
- Color: Red
- I.D.: 1/8
- Awg: 30-18
- Rec Id: .040"
- Rec Wall Thickness: .040"
