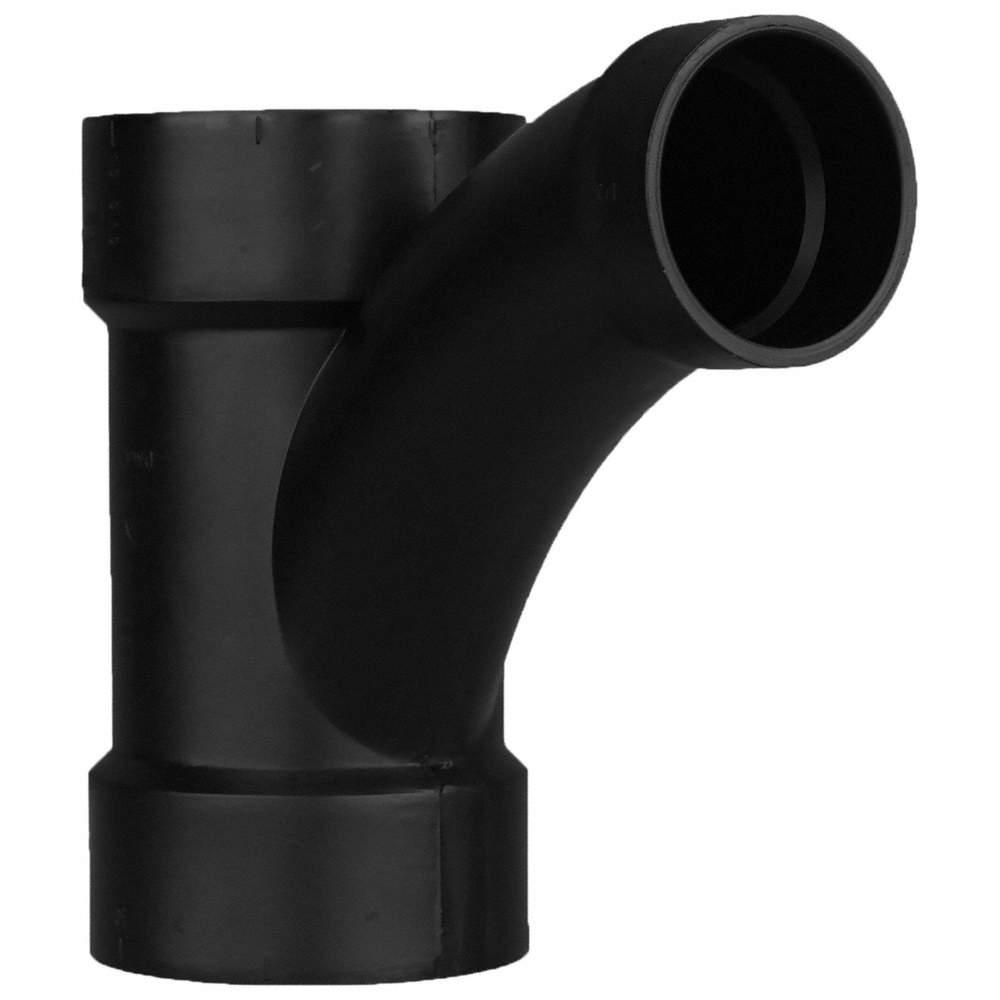

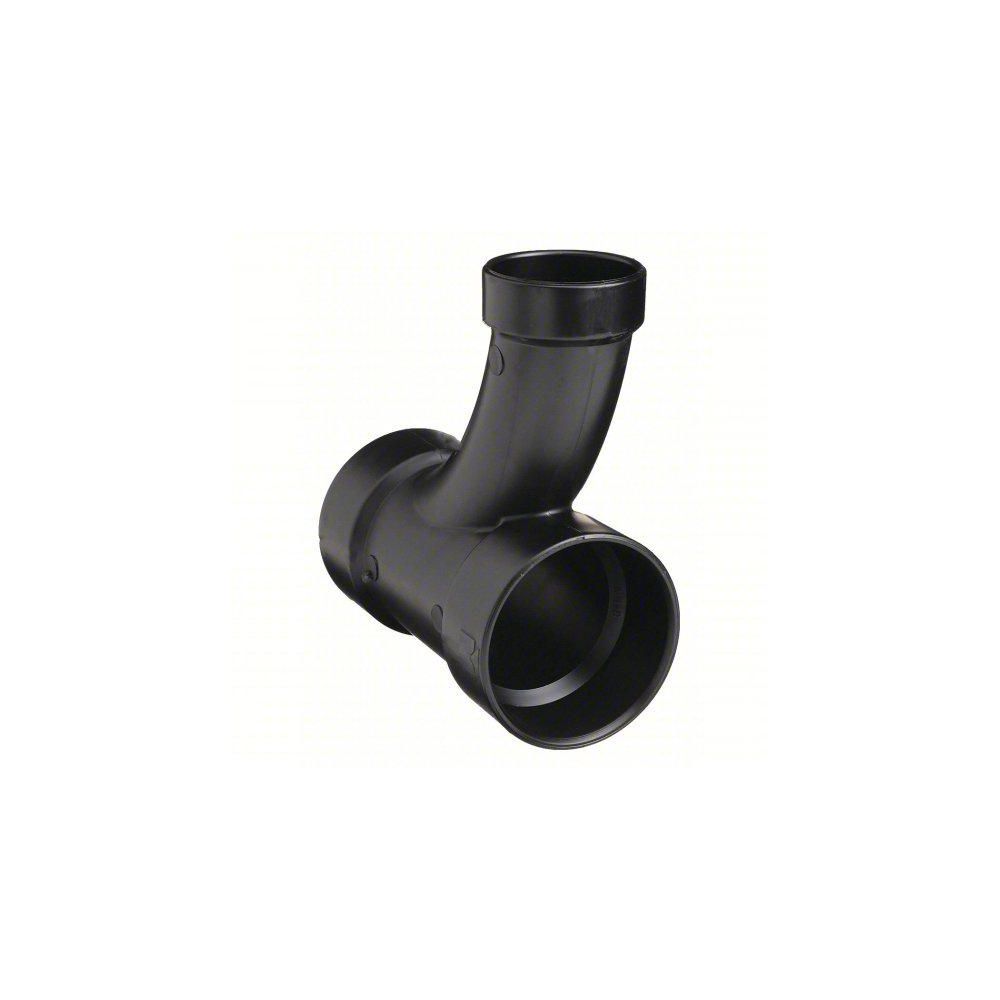

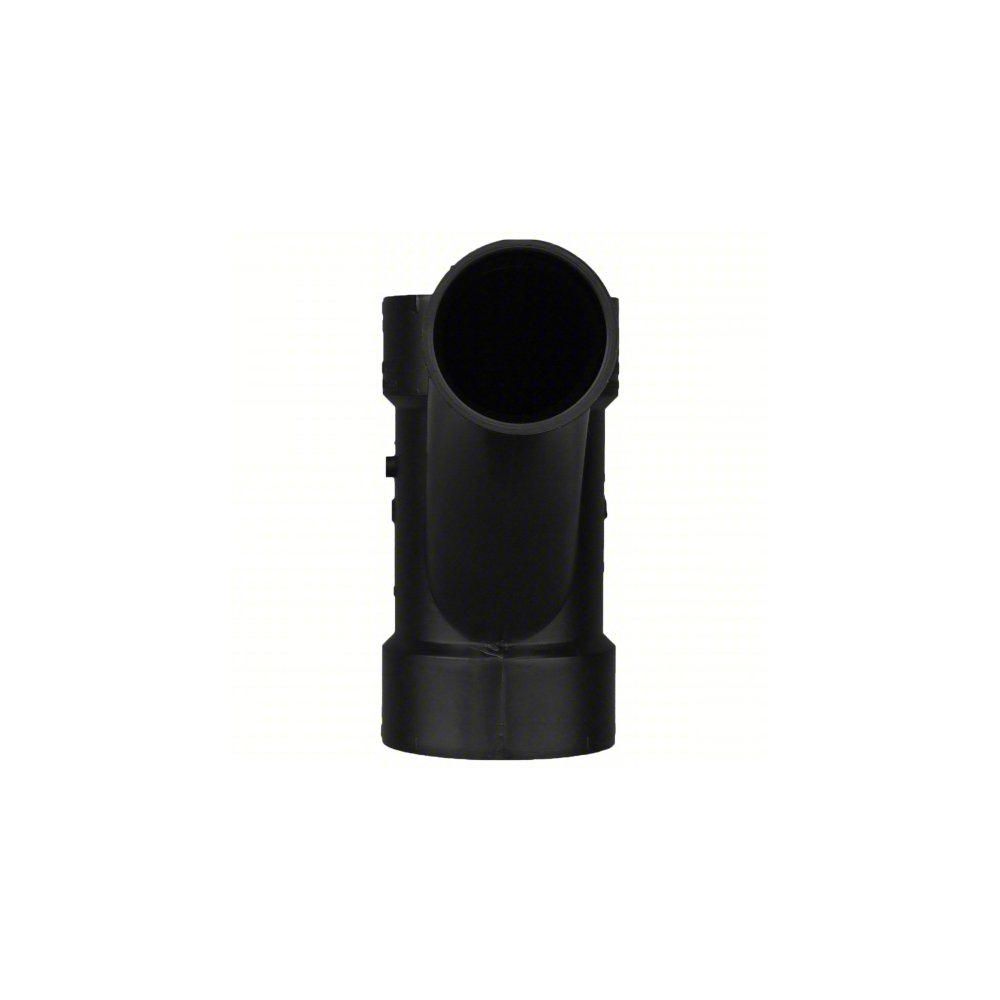

APPROVED SUPPLIERCombination Wye & 45° Elbow: 3 in x 3 in x 2 in Fitting Pipe Size, Schedule 40, Black
Hover over image to magnify
#944794-3 | Pkg Qty: 1
$14.47 pkg | $14.47 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application
DWV
Fitting Connection (C) Type
Socket
Brand
APPROVED SUPPLIER
Fitting Connection Type
Hub x Hub x Hub
Color Family
Black
Fitting Pipe Size
3 in. x 3 in. x 2 in.
Connection Type
Socket
Fitting Shape
Wye
Fitting Connection (A) Gender
Female
For Pipe Outside Diameter
2-3/8 in., 3-1/2 in.
Fitting Connection (A) Outside Diameter
3-15/16 in.
For Pipe Schedule
40
Fitting Connection (A) Pipe Size
3 in.
Includes Plug
No
Fitting Connection (A) Type
Socket
Includes Seal
No
Fitting Connection (B) Gender
Female
Item
Combination Wye & 45 Degrees Elbow
Fitting Connection (B) Outside Diameter
3-15/16 in.
Mfr. Part Number
1WHW8
Fitting Connection (B) Pipe Size
3 in.
Package Quantity
1
Fitting Connection (B) Type
Socket
Pipe Fitting Material
ABS
Fitting Connection (C) Gender
Female
Shipping Weight
.92 lb.
Fitting Connection (C) Outside Diameter
2-11/16 in.
Standards
ASTM D2661, ASTM D3311, ASTM D3965, NSF 14
Fitting Connection (C) Pipe Size
2 in.
Temperature Range
-20 Degrees to 140 Degrees F
General
Basic Fitting Shape
Wye
Fitting Side C Type
Socket
Color
Black
Gender
Female
Fitting Side A Gender
Female
Low Lead Compliance Level
Not Compliant
Fitting Side A Nominal Pipe Size
3 in
Maximum Operating Pressure
Gravity Flow
Fitting Side A Outside Diameter
3 15/16 in
Overall Length
4 7/16 in
Fitting Side A Type
Socket
Pipe Fitting Connection Type
Socket
Fitting Side B Gender
Female
Pipe Fitting Gender
Female Female Female
Fitting Side B Nominal Pipe Size
3 in
Pipe Size
2 in, 3 in
Fitting Side B Outside Diameter
3 15/16 in
Pipe Size - Pipe Fitting
3 in x 3 in x 2 in
Fitting Side B Type
Socket
Schedule
Schedule 40
Fitting Side C Gender
Female
Specific Fitting Shape
Combination Wye & 45 Degrees Elbow
Fitting Side C Nominal Pipe Size
2 in
Temp. Range
-20 Degrees to 140 Degrees F
Fitting Side C Outside Diameter
2 11/16 in
Product Description
Combination Wye & 45 Degrees Elbow, ABS, Schedule 40, For Pipe Schedule 40, 3 in, Female, Socket, 3 15/16 in, 3 in, Female, Socket, 3 15/16 in, 2 in, Female, Socket, 2 11/16 in, Includes Seal No, For Pipe Outside Diameter 2 3/8 in, 3 1/2 in, 4 7/16 in Overall Length, Gravity Flow Maximum Operating Pressure, -20 Degrees to 140 Degrees F
Item Barcode
Reducing Wye With 45 Bend, 3 x
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1WHW8 | |
 | UNSPSC CODES | 40175210 | |
 | VMRS (ATA) CODES | 053-006-009 | Reducing Wye with 45 Bend, |
