LITTELFUSE

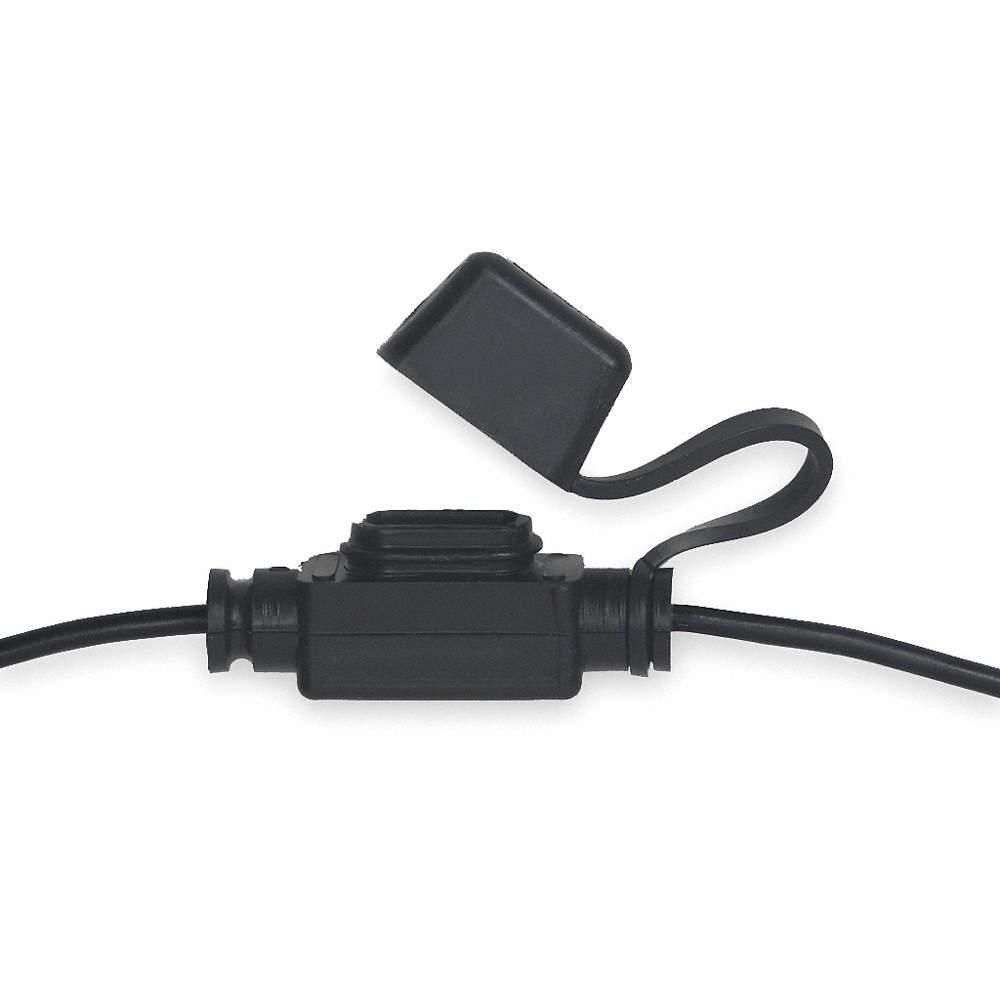

Littelfuse In-Line Fuse Holder: 1 Poles, 0 To 20 A, 32V Dc, Wire Leads, Nonindicating, Covered, 297, Af2, Atm

Hover over image to magnify
Fuse Holder,0 To 20A,
Fuse Holder,0 To 20A,

#943662-9 | Pkg Qty: 1

$4.56 pkg | $4.56 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Material
Thermoplastic
Mfr. Part Number
FHM1
Brand
LITTELFUSE
Mounting Style
Inline
Connector Type
Wire Leads
Number of Poles
1
Fuse Block Design
Covered
Package Quantity
1
Fuse UL Class
Not Class Rated
Series
FHM
Item
In-Line Fuse Holder
Shipping Weight
.03 lb.
General
Amp Range
0 to 20 A
Visual Indication
Nonindicating
Compatible Fuse Series
297, AF2, ATM
Voltage Rating
32V DC
Fits Fuse Type
Automotive
Wire Length
(2) 4 in
For Fuse Size
41/64 in L x 7/16 in W x 5/32 in D
Wire Size
14 AWG
Fuse Block Style
Nonrejection

Product Description

These in-line fuse holders are compatible with automotive blade fuses commonly used for overcurrent protection of vehicle wiring and electrical systems. The blade-style contacts of automotive blade fuses plug into these holders for a secure connection. They're typically used to hold fuses in cars, trucks, RVs, and DC-powered equipment.

In-line fuse holders are wire-mounted holders that connect anywhere along a circuit to protect specific lines. They allow these lines to be isolated in the event of a fault so that the rest of the wiring system won't be affected. They have a receptacle that encloses a fuse and pigtail wires or terminals that extend from each end of the receptacle for connecting to a circuit. These fuse holders are commonly used on automotive wiring and other applications where space is limited or fuse box would be impractical.
