SQUARE D

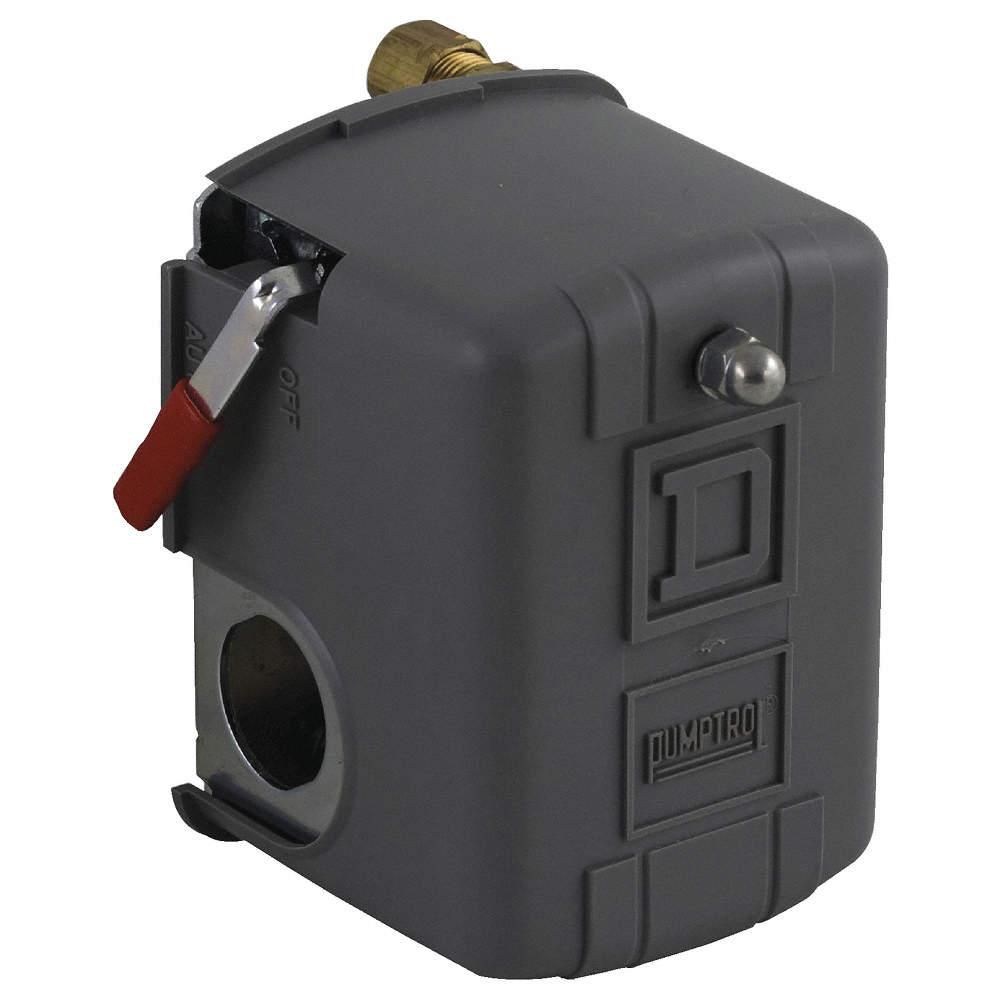

Square D Pressure Switch: 1/4 In Fnps/(1) Port, 105/135 Psi, 30 Psi, 40 To 150 Psi, Dpst, Auto/Off

Hover over image to magnify
Pressure Swtch,Dpst,40 To 150
PI_Asset_3761162
Pressure Swtch,Dpst,40 To 150
PI_Asset_3761162
Double tap image to magnify
Pressure Swtch,Dpst,40 To 150
9157ea4322d0d918b35fc8252b023__W65J_v2
Pressure Swtch,Dpst,40 To 150
9157ea4322d0d918b35fc8252b023__W65J_v2

#943458-1Pkg Qty: 1

$52.84 pkg | $52.84 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 04.
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 575V
Pressure Switch Application
Air Compressor
Brand
SQUARE D
Pressure Switch Differential
30 psi
HP @ 1 Phase - 120 V
1-1/2 HP
Pressure Switch Electrical Contact Form
DPST
HP @ 1 Phase - 240 V
2 HP
Pressure Switch Factory On/Off Setting
105/135 psi
Item
Pressure Switch
Pressure Switch Port Type
(1) Port, 1/4 in. FNPS
Manual Switch Action
Auto/Off
Pressure Switch Range
40 to 150 psi
Mfr. Part Number
9013FHG12J39M1X
Pressure Switch Unloader
1/4 in. Compression
NEMA Rating
1
Series
9013FHG
Package Quantity
1
Shipping Weight
.97 lb.
Pressure Switch Action
Standard
Temperature Range
-22 to 257deg. F
General
HP @ 1 Phase - 120V
1 1/2 hp
Special Features
Nitrile (Buna-N) Diaphragm
HP @ 1 Phase - 240V
2 hp
Standards
ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
HP @ 3 Phase - 240V
3 hp
Temp. Range
-22 Degrees to 257 Degrees F
HP @ 3 Phase - 480V
1 hp

Product Description

This pressure switch features a fixed differential, an actuated diaphragm, and contacts designed to open with rising pressure. It is designed to control electrically driven air compressors and pumps.
