LINCOLN ELECTRIC

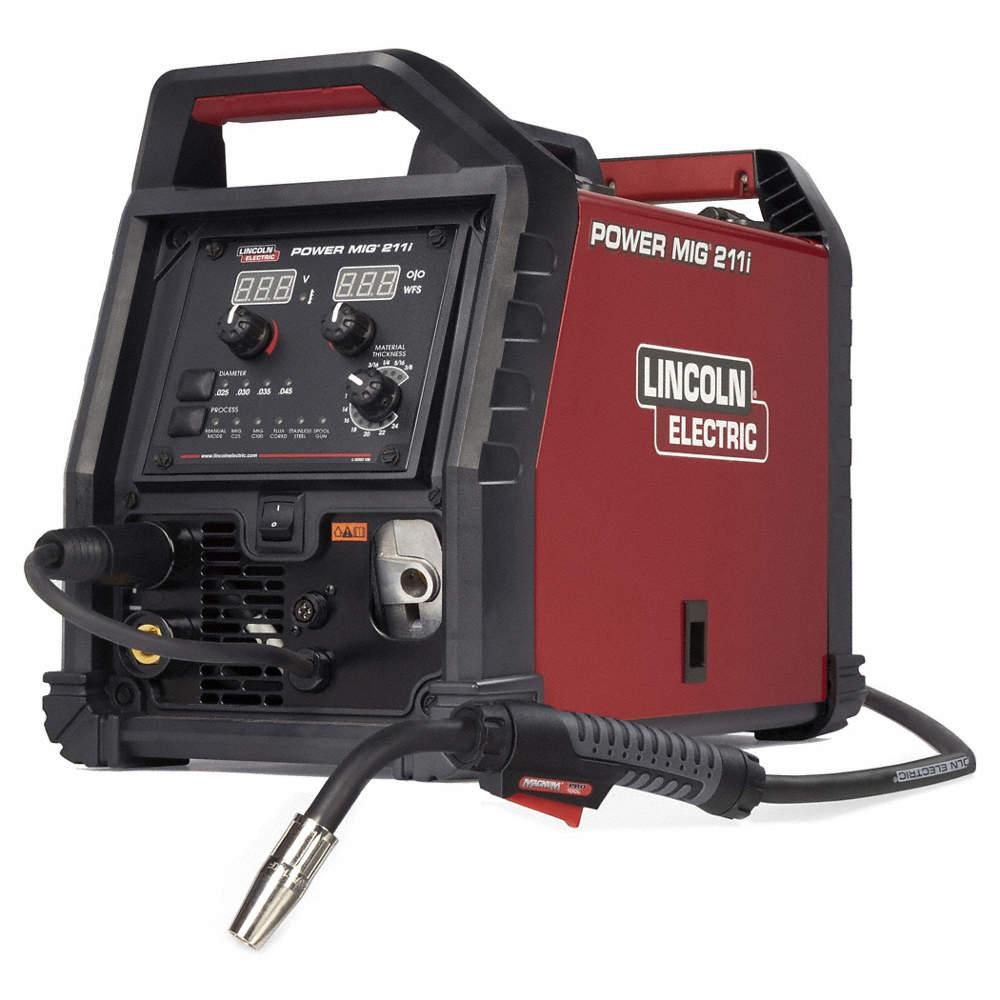

Lincoln Electric Mig/Flux-Cored Welder

Hover over image to magnify
Mig/Flux-Cored Welder
Mig/Flux-Cored Welder

#943412 | Pkg Qty: 1

$1,897.35 pkg | $1,897.35 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
LINCOLN ELECTRIC
Overall Width
10.9 in.
Input Voltage
120V, 230V
Package Quantity
1
Item
MIG Welder
Phase
Single-Phase
Mfr. Part Number
K6080-1
Series
Power MIG 211i
Overall Depth
21.49 in.
Shipping Weight
55 lb.
Overall Height
15.1 in.
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
General
Amperage Range
20 to 211 A
Maximum Wire Feed Speed
500 in/min
Application
Automotive, Construction, General Fabrication, Maintenance & Repair, Repair Welding
Minimum Wire Diameter
0.025 in (Solid), 0.03 in (Flux-Cored)
Features
Dual Input Voltage, Ergonomic Case with Multiple Lift Points, Lightweight and Portable, Process Capabilities - MIG, Flux-Cored and Spool Gun, Robust Wire Drive, Seven Segment Display with Basic Knob Controls
Minimum Wire Feed Speed
50 in/min
For Material Type
Aluminum, Stainless Steel, Steel
Model
K6080-1
For Maximum Material Thickness
1/4 in (Aluminum), 3/8 in (Stainless Steel), 3/8 in (Steel)
Plug Type
6-50P
For Minimum Material Thickness
14 ga (Aluminum), 24 ga (Stainless Steel), 24 ga (Steel)
Polarity
DC
For Wire Type
Flux-Cored, Solid
Power Cord Included
Yes
Includes
0.025 - 0.035 in. (0.6 - 0.9 mm) Wire Guide (Installed), 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls, 0.030-0.035in. (0.8 - 0.9 mm) Drive Roll (Installed), 230V to 120V power cord adapter, Adjustable Gas Regulator and Hose, Gas Nozzle, Gun Cable Liner (pre-installed in gun), Magnum(R) PRO 100L Gun 10 ft. (3.0 m), Sample 2 lb (0.91 kg) Spool of SuperArc(R) L-56(R) Mild Steel MIG Wire, Spindle Adapter, Work Cable and Clamp
Power Cord Length
10 ft
Input Frequency
60 Hz
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Input Voltage (Nominal)
120V
Rated Output at Duty Cycle (MIG)
95 A @ 60%
Kit Includes
MIG Gun, Work Cable with Clamp
Remote Connection Type
4-Pin (Lincoln)
MIG Welding Maximum Output Current
211 A
Standards
cCSA(us), IEC 60974-1, IEC 60974-5
MIG Welding Minimum Output Current
20 A
Weight
41 lb
MIG Welding Output @ Duty Cycle
175 A @ 22.8 V, 30% (230 V), 95 A @ 18.8 V, 60% (120 V)
Welder Kit Type
MIG Package
Max. Amperage Range (MIG)
150 A - 300 A
Welder Series
Power MIG 211i
Max. Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)
Welder Series - Model
Power MIG 211i - K6080-1
Maximum Amperage Range (MIG)
150 A - 300 A
Welding Mode
CV
Maximum Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)
brand-mfr model
LINCOLN ELECTRIC - K6080-1

Product Description

MIG Welder, Series Power MIG 211i, Input Voltage 120V, 230V, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Maximum Wire Diameter 0.035 in (Solid), 0.045 in (Flux Cored), Maximum Wire Feed Speed 500 in/min, Model K6080-1, MIG Welding Output @ Duty Cycle 175 A @ 22.8 V, 30 Percent (230 V), 95 A @ 18.8 V, 60 Percent (120 V)
