HUBBELL

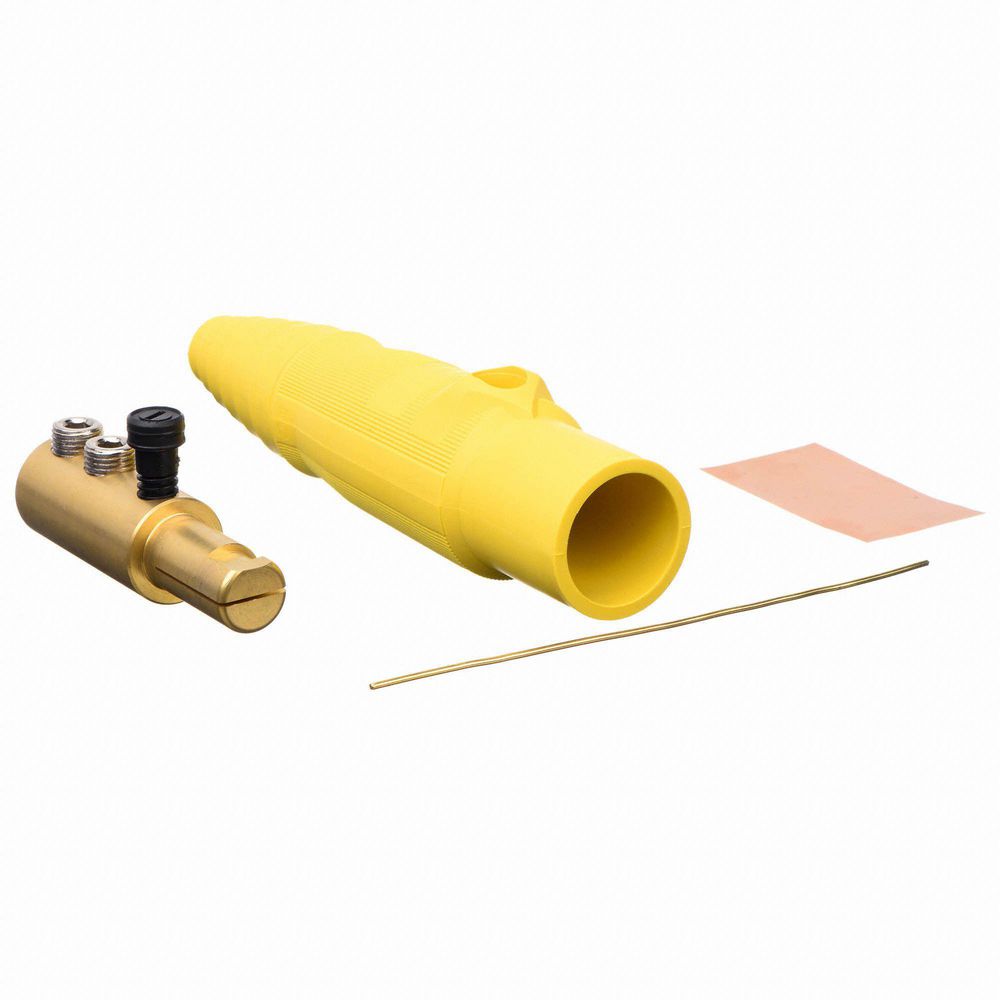

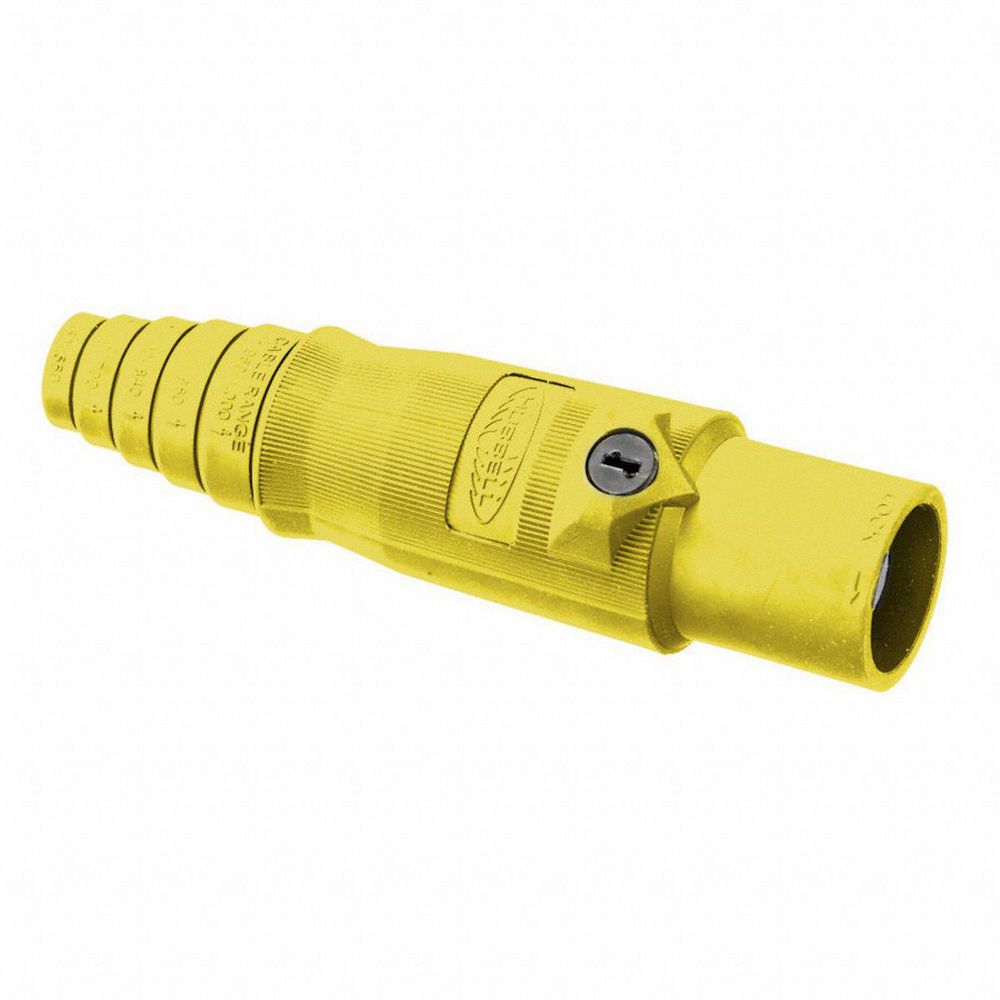

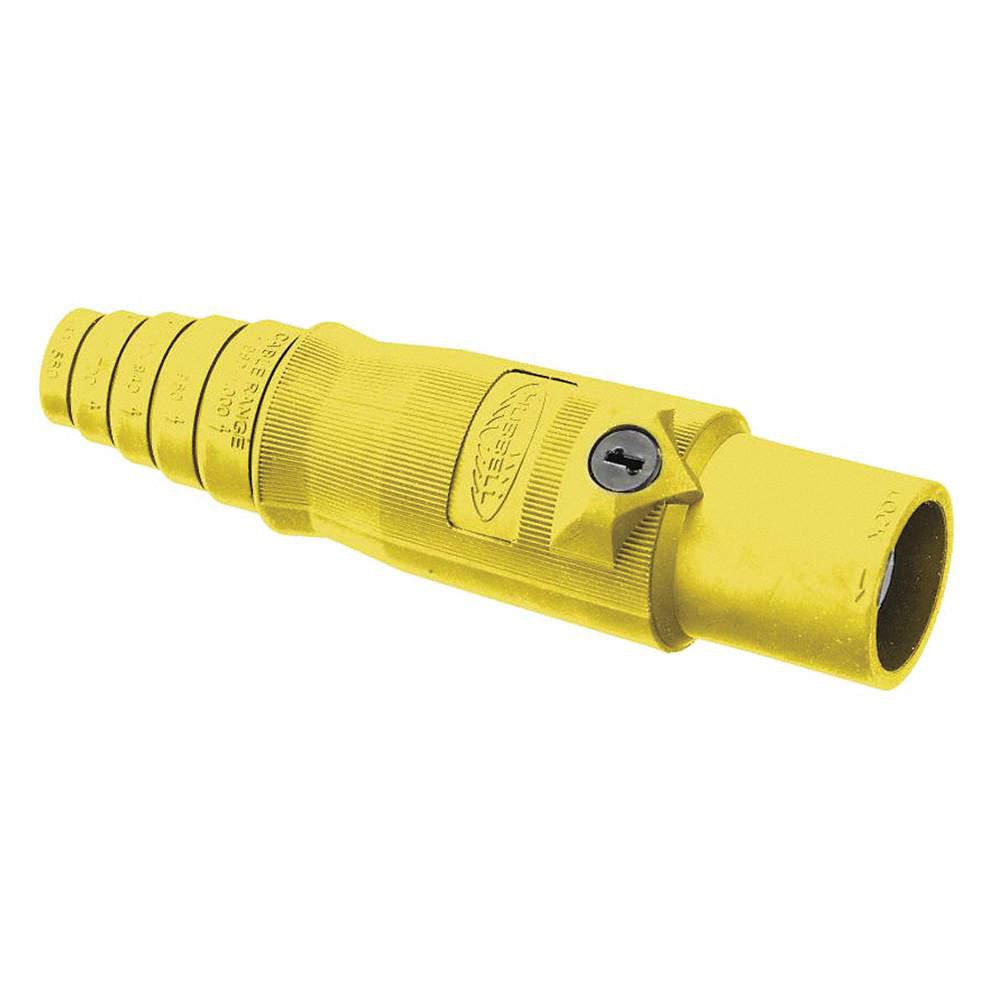

Hubbell Connector: Male Plug, 400 A, Yellow

Hover over image to magnify
Connector,3R, 4X, 12,Male,Ylw,
Connector,3R, 4X, 12,Male,Ylw,

#942712-7 | Pkg Qty: 1

$62.36 pkg | $62.36 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
HUBBELL
Package Quantity
1
Color Family
Yellow
Shipping Weight
.73 lb.
Item
Connector
Voltage Rating
250VDC, 600VAC
Mfr. Part Number
HBL400MY
General
Color
Yellow
Maximum Wire Size
4/0 AWG
Compatible with Series
15; 16; Insulgrip
Minimum Wire Size
2/0 AWG
Contact Material
Brass
NEMA Enclosure Rating
12, 3R, 4X
Contact Type
Single Cam
Overall Length
7.01 in
Current Rating
400 A
Overall Width
1.95 in
Device Type
Male Plug
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
End Type
Taper Nose
Terminal Connection Type
Double Set Screw
Gender
Male
UL 94 Flammability Rating
HB
Housing Color
Yellow
Wire Size Range
2/0 AWG - 4/0 AWG
Housing Material
Thermoplastic Elastomer

Product Description

Connector, Contact Material Brass, Current Rating 400 A, Gender Male, Housing Color Yellow, Housing Material Thermoplastic Elastomer, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Terminal Connection Type Double Set Screw, Voltage Rating 250V DC, 600V AC, End Type Taper Nose, NEMA Enclosure Rating 12, 3R, 4X, Standards ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed, UL 94 Flammability Rating HB, Compatible with Series 15; 16; Insulgrip

Item Barcode
9427127
