VIKING AIR TOOLS

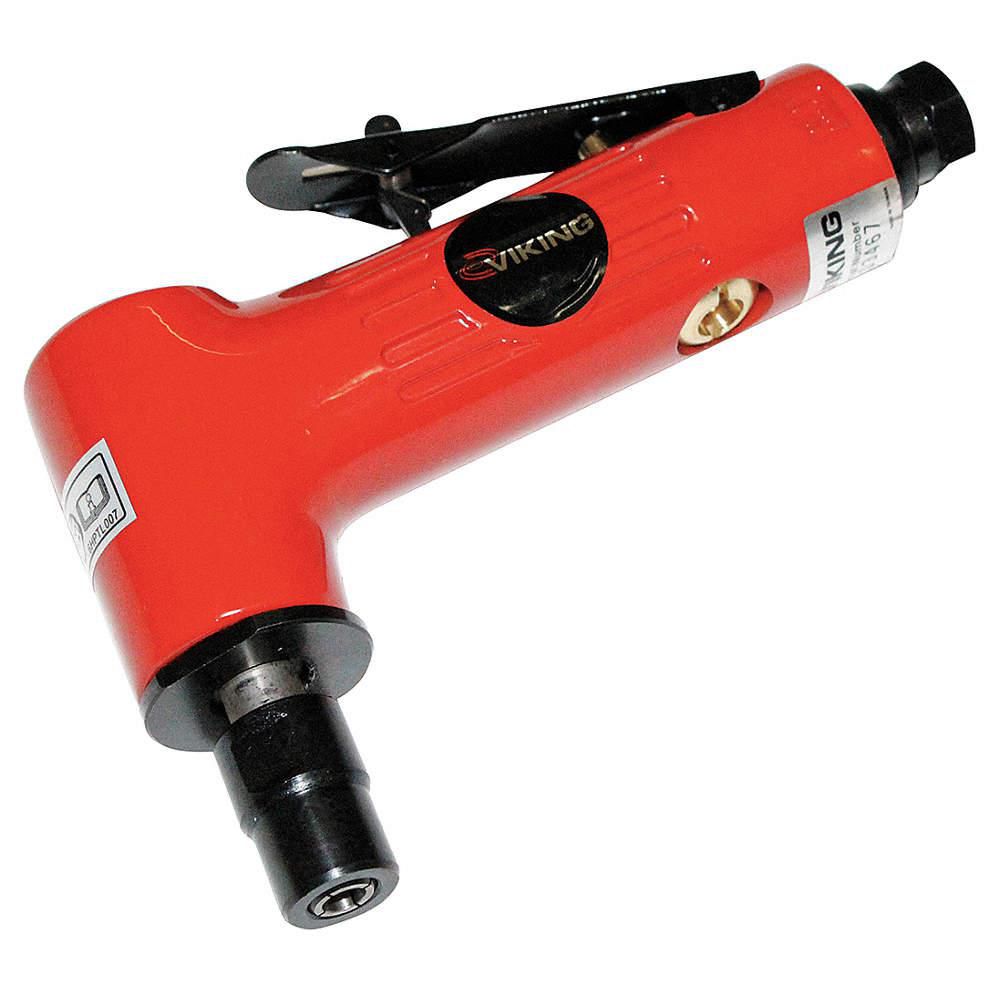

Viking Air Tools Die Grinder: 0.3 hp Horsepower, 25,000 RPM Max. Speed, 1/4 in Collet Size
Hover over image to magnify
#942514-7 | Pkg Qty: 1
$100.73 pkg | $100.73 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Avg CFM @ 15 Sec Run Time
4
Handle Material
Aluminum
Bearing Type
Ball
Horsepower
0.3 HP
Brand
VIKING AIR TOOLS
Item
Die Grinder
CFM @ Full Load
4
Mfr. Part Number
VT3001A
Characteristics
Gearless, Safety Throttle Lever and Rear Exhaust
Minimum Hose Size
3/8 in.
Collet
1/4 in.
Package Quantity
1
Duty
Medium Duty
Required Pressure
90 psi
Exhaust
Rear
Right Angle Length
2-1/2 in.
Free Speed
25000 rpm
Shipping Weight
1.41 lb.
Grinder Orientation
Right Angle
Throttle
Safety Lever
Grinder Type
Right Angle
Variable Speed
No
General
Air Consumption
4 cfm
Minimum Speed
25,000 RPM
Air Inlet
1/4 in NPT Female
Number of Speed Settings
1
Air Inlet Connection Size
1/4 in
Overall Length
6 1/8 in
Air Inlet Gender
Female
Power Source
Air Powered
Air Inlet Type
NPT
Safety Features
Safety Throttle Lever
Air Pressure
90 psi
Safety Stop Mechanisms
Mechanical
Brake Type
Mechanical
Switch Type
Safety Lever
Collet Size
1/4 in
Tether Style
4
Exhaust Location
Rear
Tool Brand
Viking Air Tool
Features
Direct Drive - No Bevel and Pinon Gears to Maintain, Ergonomic Design for Operator Convenience, One Piece Casting
Tool Style
Right Angle
Kit Contents
(1) Bare Tool
Tool Weight
1.6 lb
Max. Speed
25,000 RPM
Vibration Level
5.4 m/sq sec
Product Description
Right-angle die grinders set their grinding head 90° to the tool body for working in corners, between surfaces, and in other tight spaces. They're commonly used to grind and clean hubs, notches, and recesses.
Item Barcode
Die Grinder,0.3 Hp,Right Angle,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 29CK36 | |
 | UNSPSC CODES | 27131511 | |
 | VMRS (ATA) CODES | 053-006-009 |
