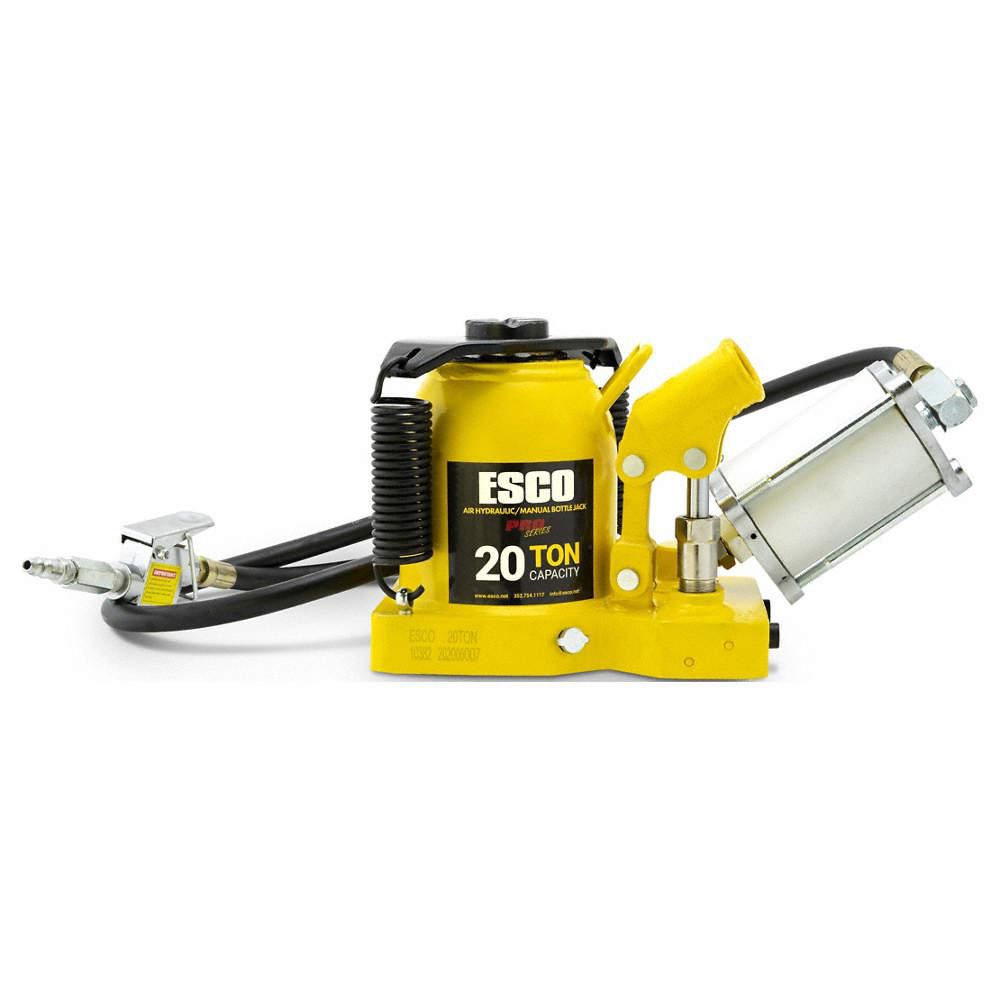

ESCO 10382, 20 Ton High-Clearance Bottle Jack
Hover over image to magnify
#942433 | Pkg Qty: 1
$360.34 pkg | $360.34 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Base Length
8-1/4 in.
Maximum Lifting Height
12-5/8 in.
Base Width
5-3/4 in.
Mfr. Part Number
10382
Body Material
Steel
Minimum Height
7-1/8 in.
Brand
ESCO/EQUIPMENT SUPPLY CO
Minimum Lifting Height
7-1/8 in.
Extension Screw Length
2-1/2 in.
Package Quantity
1
Item
High-Clearance Bottle Jack
Power Source
Air/Mechanical
Load Capacity
20 tons
Shipping Weight
35.93 lb.
General
Air Hose Length
4 ft
Lifting Actuator
Trigger
Duty Rating
Extra-Heavy Duty
Maximum Lift
12 5/8 in
Features
Chrome-Plated Piston for Extra Rust and Corrosion Resistance, Design to be Operated Using Air or Manually with Included Two-Piece Lifting/Lowering Handle, Double Spring Design for Controlled and Safe Decent While Releasing Pressure from the Cylinder, Extra Thick Jack Base Provides Exceptional Support and Stability in Severe Conditions, Fitted with a Safety Valve to Prevent Overloading, Fully Welded Cylinder and Frame Provide Superior Strength and Extended Service Life, Heat Treated Adjustable Extension Screw Provides Additional and Precise Height Adjustments, Super Low Profile "Shorty" Design-Great for low clearance application, The Compact Design Makes these Jacks Great for Multiple Applications Including Commercial Truck, Bus, Tractor and Farm Equipment
Maximum Lift Height
12 5/8 in
Includes
1/4 in NPT Fitted Air Inlet, 4 ft Swivel End Air Hose
Maximum Operating Pressure
125 psi
Inlet Connection Size
1/4 in
Minimum Lift
7 1/8 in
Inlet Connection Type
NPT
Minimum Lift Height
7 1/8 in
Item Weight
34 lb
Minimum Operating Pressure
110 psi
Jack Type
Bottle Jack
Product Description
Bottle Jack, Jack Type Air Hydraulic Bottle Jack, Load Capacity 20 ton, Body Material Steel, Lifting Actuator Trigger, Minimum Lift Height 7 1/8 in, Maximum Lift Height 12 5/8 in, Power Source Air/Mechanical, Minimum Height 7 1/8 in, Air Hose Length 4 ft, Base Length 8 1/4 in, Base Width 5 3/4 in, Extension Screw Length 2 1/2 in
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Naphthalene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Bottle Jack
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 804M85 | |
 | UNSPSC CODES | 24101612 | |
 | VMRS (ATA) CODES | 053-006-009 | Bottle Jack |
