AMERICAN FORGE & FOUNDRY

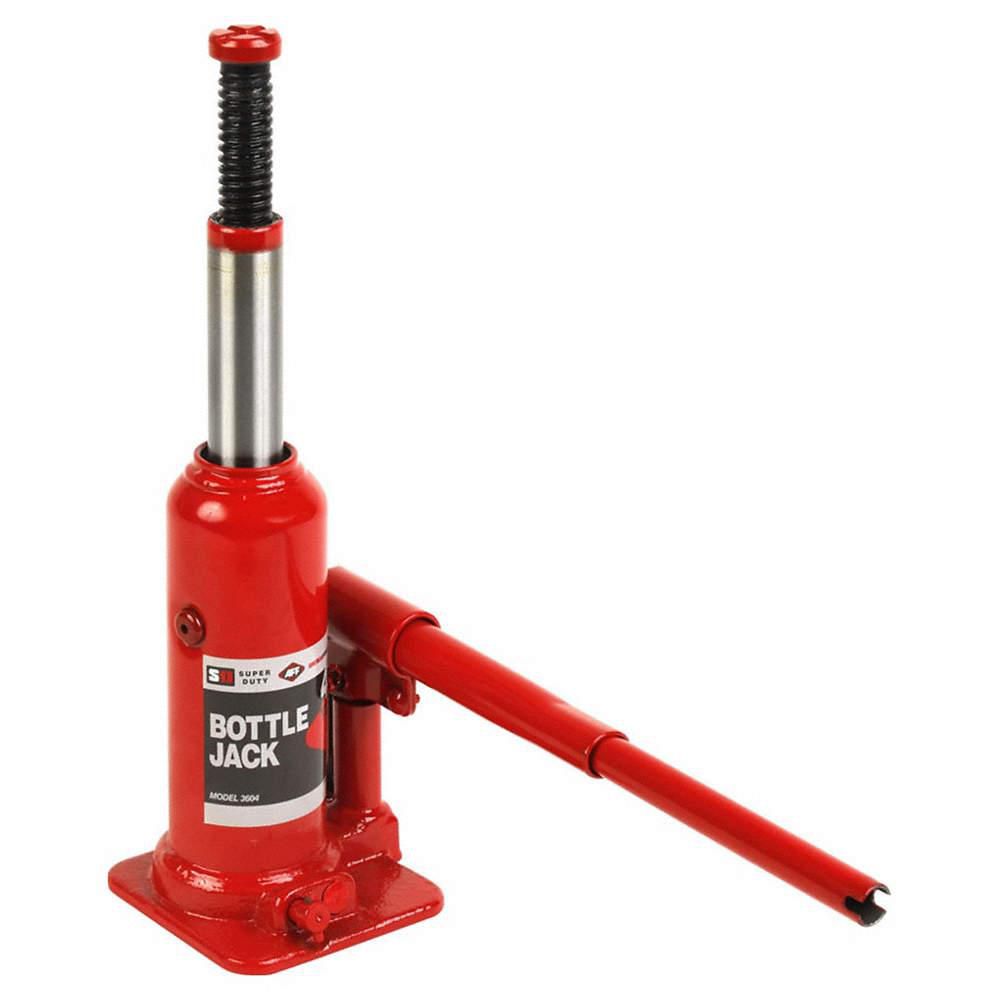

American Forge & Foundry 3604, 4 Ton Super-Duty Bottle Jack

Hover over image to magnify
Bottle Jack
Bottle Jack

#941778-3 | Pkg Qty: 1

$60.31 pkg | $60.31 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Base Length
4-29/32 in.
Maximum Lifting Height
14-5/8 in.
Base Width
3-9/32 in.
Mfr. Part Number
3604
Body Material
Steel
Minimum Height
7-19/32 in.
Brand
AMERICAN FORGE & FOUNDRY
Minimum Lifting Height
7-1/2 in.
Extension Screw Length
2-1/2 in.
Package Quantity
1
Finish
Chrome Plated, Powder Coated
Power Source
Mechanical
Item
Super-Duty Bottle Jack
Shipping Weight
6.8 lb.
Load Capacity
4 tons
Standards
ASME PASE 2019
General
Body Material Finish
Chrome Plated/Powder Coated
Lifting Actuator
Manual
Duty Rating
Light Duty
Maximum Lift
14 5/8 in
Extended Height
14 11/16 in
Maximum Lift Height
14 5/8 in
Features
Extension Screw Provides Adjustment for Maximum Height, Forged Base for Leak Free Operation, Fully Welded Cylinder for Maximum Strength, Oil By-Pass System Provides Overload Protection, Widely Used in Heavy Duty Truck, Agriculture, Mining and Oil Field Applications
Minimum Lift
7 1/2 in
Item Weight
7.51 lb
Minimum Lift Height
7 1/2 in
Jack Type
Super-Duty Bottle Jack
Work Orientation
Horizontal, Vertical

Product Description

Bottle Jack, Jack Type Super-Duty Bottle Jack, Load Capacity 4 ton, Body Material Steel, Lifting Actuator Manual, Minimum Lift Height 7 1/2 in, Maximum Lift Height 14 5/8 in, Power Source Mechanical, Minimum Height 7 19/32 in, Standards ASME PASE 2019, Air Hose Length Not Applicable, Base Length 4 29/32 in, Base Width 3 9/32 in, Body Material Finish Chrome Plated/Powder Coated, Extended Height 14 11/16 in, Extension Screw Length 2 1/2 in

Item Barcode
9417783
Bottle Jack
 NameItemDescription
Grainger DropshipGrainger Dropship806JA5
UNSPSC CODESUNSPSC CODES24101612
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Bottle Jack
