CLEVELAND

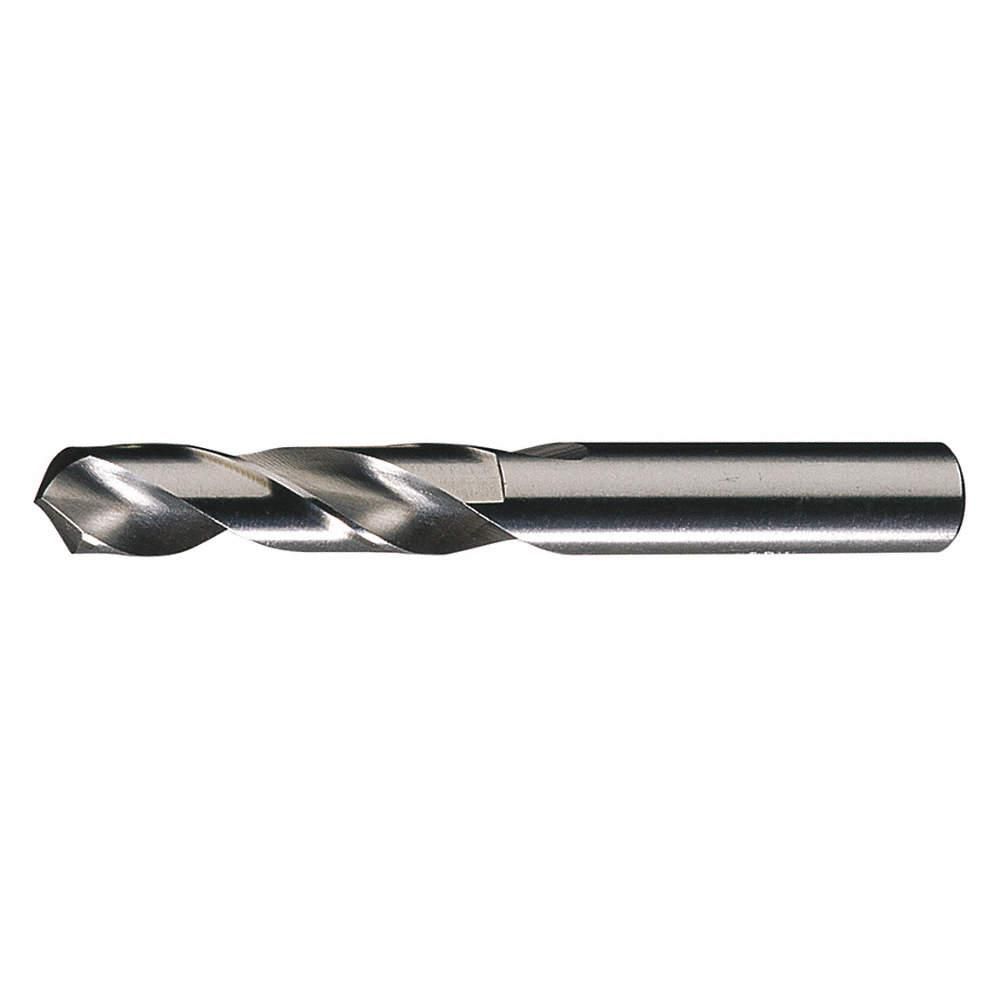

Screw Machine Drill Bit: 5/8 in Drill Bit Size, 2 3/4 in Flute Lg, 4 1/4 in Overall Lg

Hover over image to magnify
Screw Machine Drill,5/8",Hss
Screw Machine Drill,5/8",Hss
Double tap image to magnify
Screw Machine Drill,5/8",Hss
Screw Machine Drill,5/8",Hss

#941660Pkg Qty: 1

$53.72 pkg | $53.72 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 11.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>These drill bits have a bright finish that is not affected when the bits' cutting edges are resharpened. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece.</p>

These drill bits have a bright finish that is not affected when the bits' cutting edges are resharpened. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece.

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Brand
CLEVELAND
List Number
2120
Decimal Equivalent
5/8
Mfr. Part Number
C04622
Depth x Diameter Ratio
4xD
Overall Length
4-1/4 in.
Drill Bit Point Angle
118 deg.
Package Quantity
1
Drill Bit Size
5/8 in.
Shank Diameter
5/8 in.
Flute Length
2-3/4 in.
Shank Length
1-1/2 in.
Flute Type
Spiral
Shipping Weight
.27 lb.
Item
Screw Machine Drill Bit
General
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Cutting Direction
Right Hand
Maximum Drilling Depth
2 3/4 in
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Conventional Point
Number of Flutes
2
Drill Diameter Tolerance
+0.0000 in /-0.0012 in
Primary Material Application
Aluminum, Brass, Bronze, Copper
Drill Length Class
Screw Machine Length
Primary Material Application ISO Code
N
Drill Point Length
0.1878 in
Shank Type - Machining
Straight
Finish - Machining
Bright (Uncoated)
Spiral Direction
Right Hand
Helix Angle
28 Degrees
Standards
ASME B94.11M-1993

Product Description

These drill bits have a bright finish that is not affected when the bits' cutting edges are resharpened. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece.

Item Barcode

9416600
Screw Machine Drill,5/8",Hss
