CHICAGO-LATROBE

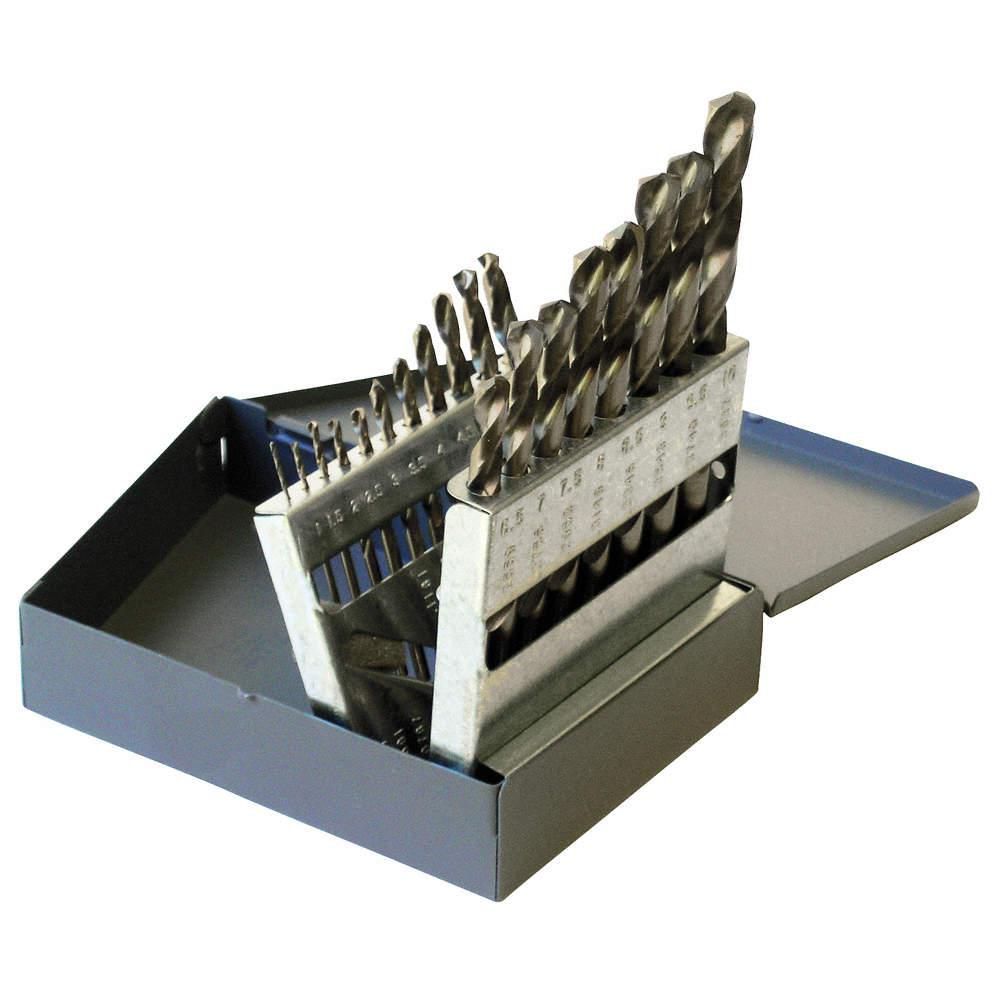

Chicago-Latrobe Jobber Drill Bit Set: 0.50 mm Smallest Drill Bit Size, 19 Drill Bits, Right Hand

Hover over image to magnify
Jobber Drill Set,19 Pc,Cobalt
Jobber Drill Set,19 Pc,Cobalt
Chicago-Latrobe Jobber Drill Bit Set: 0.50 mm Smallest Drill Bit Size, 19 Drill Bits, Right Hand Video
Double tap image to magnify
Jobber Drill Set,19 Pc,Cobalt
Jobber Drill Set,19 Pc,Cobalt
K2dVbC0kSKU

#941507-8Pkg Qty: 1

$155.65 pkg | $155.65 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Brand
CHICAGO-LATROBE
Grade
Heavy Duty
Cutting Direction
Right
Item
Jobber Drill Bit Set
Dimension Type
Metric
List Number
550ASP
Drill Bit Dimension Type
Metric
Mfr. Part Number
47924
Drill Bit Finish
Straw/Bronze
Number of Pieces
19
Drill Bit Material
Cobalt Steel
Package Quantity
1
Drill Bit Point Angle
135 deg.
Point Type
P3 Split Point
Flute Type
Spiral
Shipping Weight
1.5 lb.
General
Aircraft Drill
Yes
Drill Length Class
Jobber Length
Coolant Fed
Non-Coolant Through
Includes
Metal Drill Index
Cutting Direction
Right Hand
Largest Drill Bit Size
10.00 mm
Depth:Dia. Ratio
4xD
Material Grade - Machining
M42
Drill Bit Case Type
Metal Drill Index
Primary Material Application
All Materials
Drill Bit Grouping
Set
Shank Dia.
0.0394 in to 0.3937 in
Drill Bit Point Type
Split Point
Shank Type - Machining
Straight
Drill Bit Size
1.00 mm-10.00 mm by 0.50 mm
Smallest Drill Bit Size
0.50 mm
Drill Bit Sizes Included
8.00 mm, 4.50 mm, 2.00 mm, 9.00 mm, 3.00 mm, 6.50 mm, 7.50 mm, 1.00 mm, 6.00 mm, 3.50 mm, 4.00 mm, 5.50 mm, 8.50 mm, 1.50 mm, 7.00 mm, 10.00 mm, 9.50 mm, 0.50 mm, 2.50 mm
Standards
NAS 907 Type J

Product Description

The cobalt jobber-length drill bits in these sets tolerate higher drilling speeds and are harder and more wear-resistant than high-speed steel jobber-length drill bits. They provide some shock absorption and can be used in handheld power tools. These sets include multiple drill bits in a variety of sizes.

Item Barcode

9415078
Jobber Drill Set,19 Pc,Cobalt
