SIEMENS

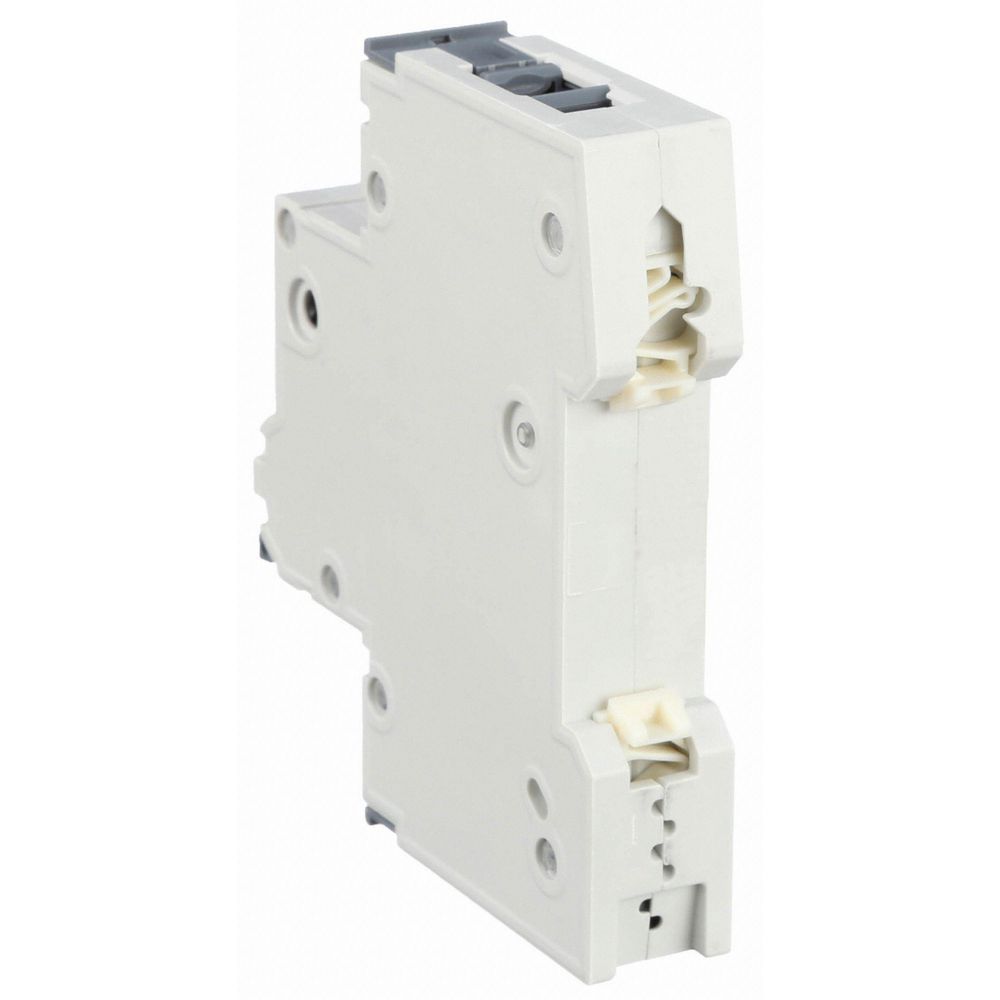

Siemens IEC Supplementary Protector: 5 A Amps, 72V DC, 10kA at 230/400V AC, Screw Clamp

Hover over image to magnify
Iec Supp Protector,5A,230/
PI_Asset_3736674
Iec Supp Protector,5A,230/
PI_Asset_3736674
Double tap image to magnify
Iec Supp Protector,5A,230/
30XU67_1
Iec Supp Protector,5A,230/
30XU67_1

#941468-2Pkg Qty: 1

$69.19 pkg | $69.19 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
AC Voltage Rating
230/400VAC
Maximum Air Rating
10kA at 230/400VAC
Air @ 120 VAC
7.5kA
Maximum Wire Size
4 AWG
Air @ 240 VAC
7.5kA
Mfr. Part Number
5SY41117
Air @ 277 VAC
5kA
Minimum Wire Size
14 AWG
Air @ 48 VDC
3.5kA
Mounting
DIN Rail
Air @ 480 VAC
5kA
Number of Poles
1
Amperage
5 A
Package Quantity
1
Amps
5 A
Phase
1
Brand
SIEMENS
Series
5SY4
Curve Type
C
Shipping Weight
.35 lb.
DC Voltage Rating
72VDC
Standards
CE, CSA C22.2 No. 235, cURus, EN 60898, EN 60947-2, UL 1077, UL File No. E116386
Depth
3.01 in.
Terminal Connection
Screw Clamp
Item
IEC Supplementary Protector
Trip Type
Thermal Magnetic
Length
3.54 in.
Width
0.69 in.
General
Application
Industrial
Circuit Breaker Mounting Style
DIN Rail
Circuit Breaker Actuator
Toggle
Meets UL Type
UL 1077

Product Description

C-curve one-pole supplementary protectors trip instantaneously when the current load exceeds five to ten times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL1077 listed for use as supplementary protection from damage caused by overcurrents and short circuits. They're used when protection against medium-level short circuit faults is desired, such as in control panels, lighting, and coils.

Item Barcode

9414682
Iec Supp Protector,5A,230/
